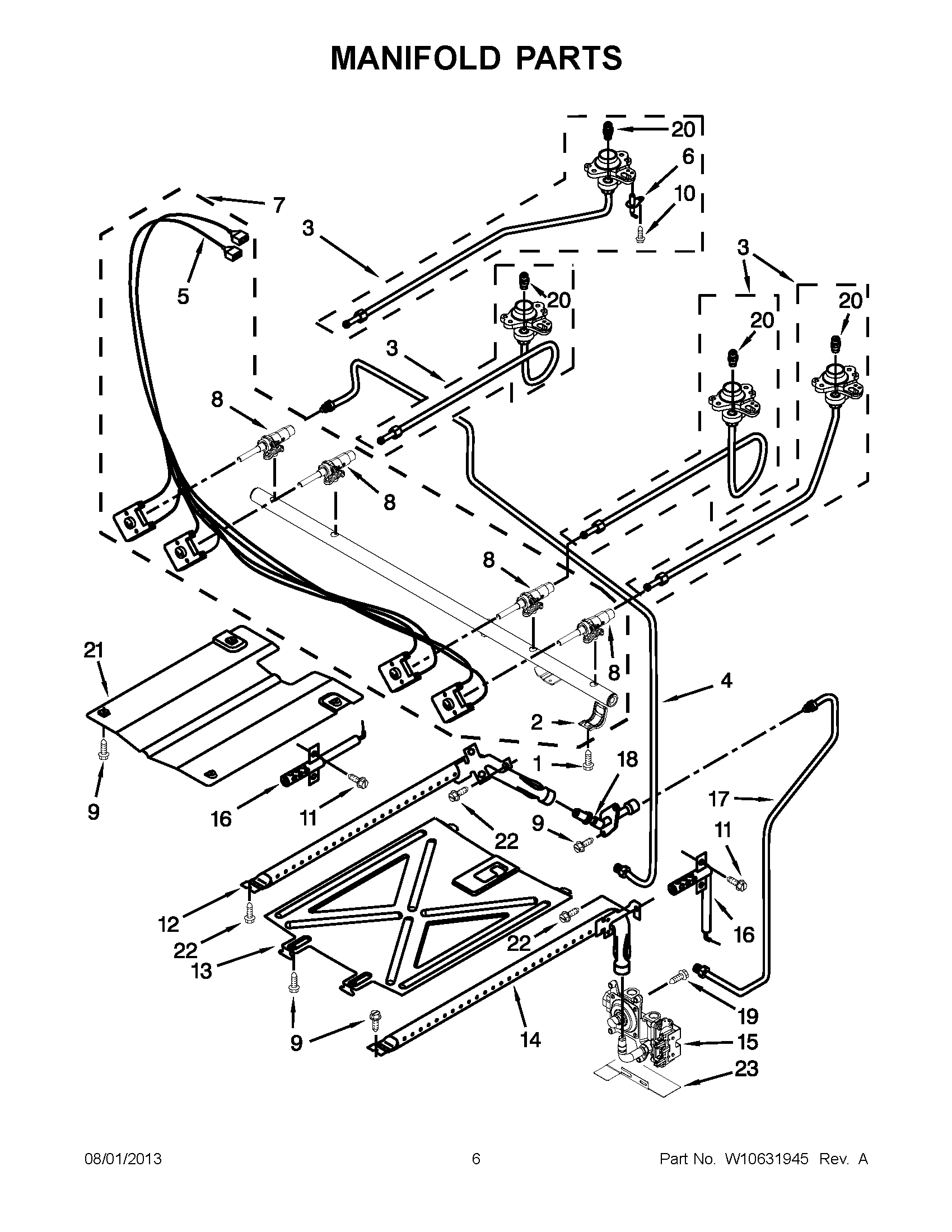

AGR5630BDS0 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10400498
NI	SPUDS, LP GAS (KIT OF 4)
NI	ORIFICE, LP BAKE
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3	TUBING, BURNER W/ORIFICE (LEFT FRONT (12K))
3	TUBING, BURNER W/ORIFICE (LEFT REAR (9.5K))
3	TUBING, BURNER W/ORIFICE (RIGHT FRONT (9.5K))
3	TUBING, BURNER W/ORIFICE (RIGHT REAR (6K))
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10295998
6	Electrode (4)
7	MAY W10314242
8	VALVE, GAS (RIGHT REAR)
8	VALVE, GAS (LEFT REAR)
9	Screw
10	MAY 8273062
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	Igniter (Broil)
16	ELECTRODE, BAKE
17	TUBE, BROILER SUPPLY
18	MAY W10340259
19	SCREW
20	ORIFICE, BURNER (12K) (RIGHT FRONT)
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
20	ORIFICE, NATURAL (5K) (RIGHT REAR)
21	SPREADER, FLAME (BROILER)
22	SCREW
23	BRACKET, AEGIS
