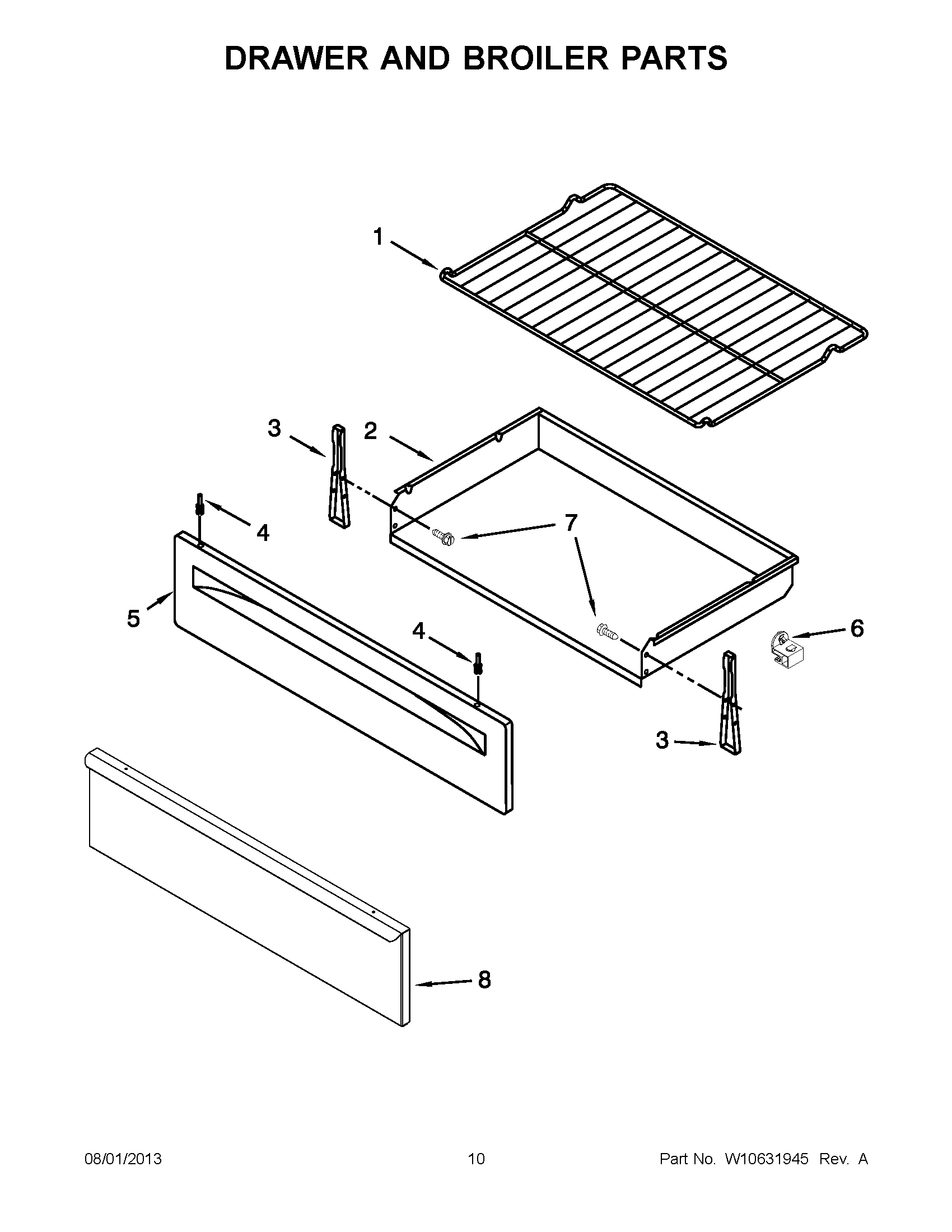

AGR5630BDS0 05 – DRAWER AND BROILER PARTS

AGR5630BDS0 05 – DRAWER AND BROILER PARTS

Written by

in

AGR5630BDS0 05 – DRAWER AND BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, DRAWER MOUNTING (WHITE MODEL)
3BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER (BLACK)
6GLIDE, REAR DRAWER
6GLIDE, DRAWER
7SCREW
8PANEL, FRONT (STAINLESS)
