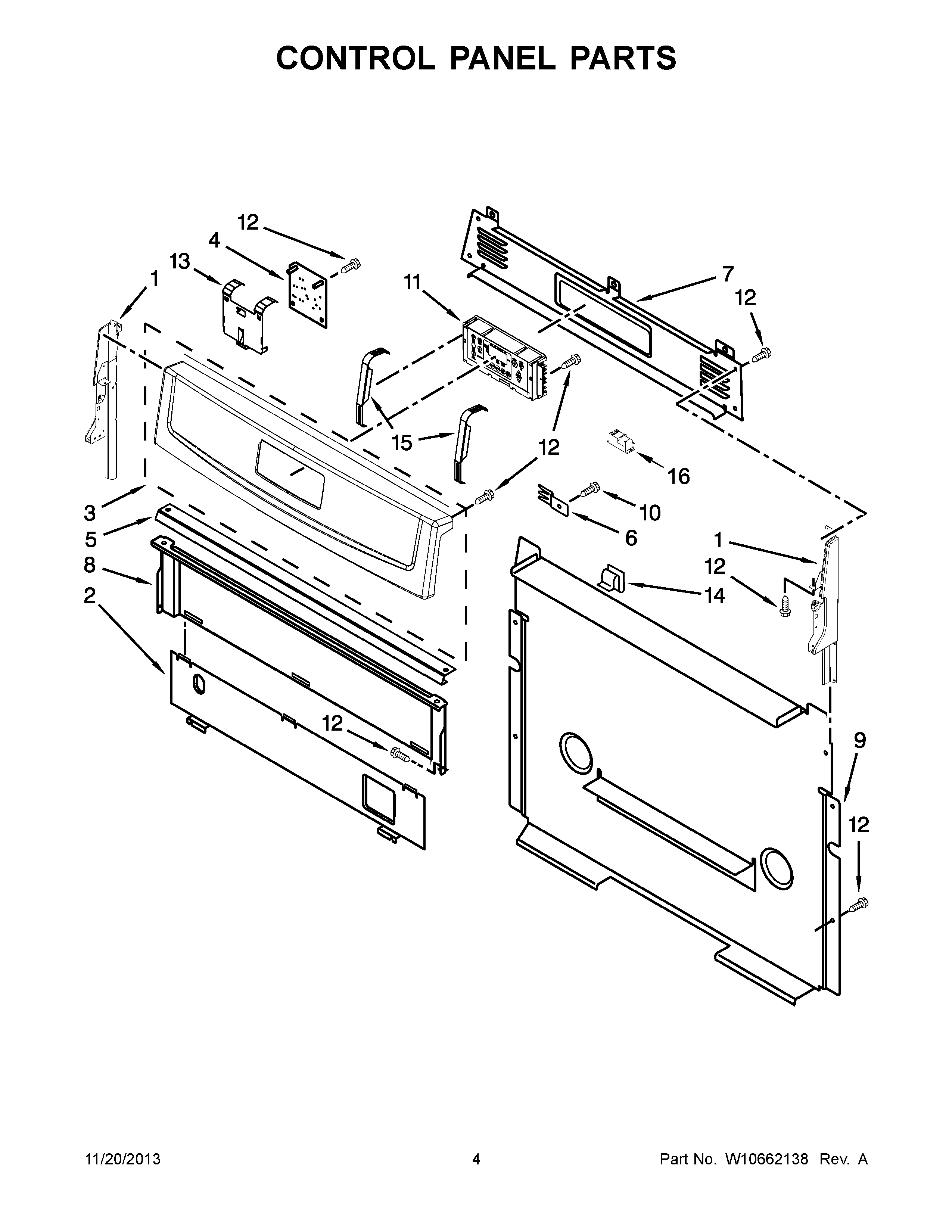

AGR5630BDS1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2SHIELD, HEAT
3MAY W10572579
3MAY W10572583
3MAY W10572581
4MAY W10511278
5BRACKET, CONSOLE MOUNTING
6BRACKET, REAR COOKTOP
7COVER, UPPER
8SHIELD, HEAT
9COVER, BACK
10SCREW
11MAY W10572544
11MAY W10572545
12SCREW
13MAY W10516463
14MAY 8273564
15BRACKET, MOUNTING, EOC
16MODULE, SPARK
