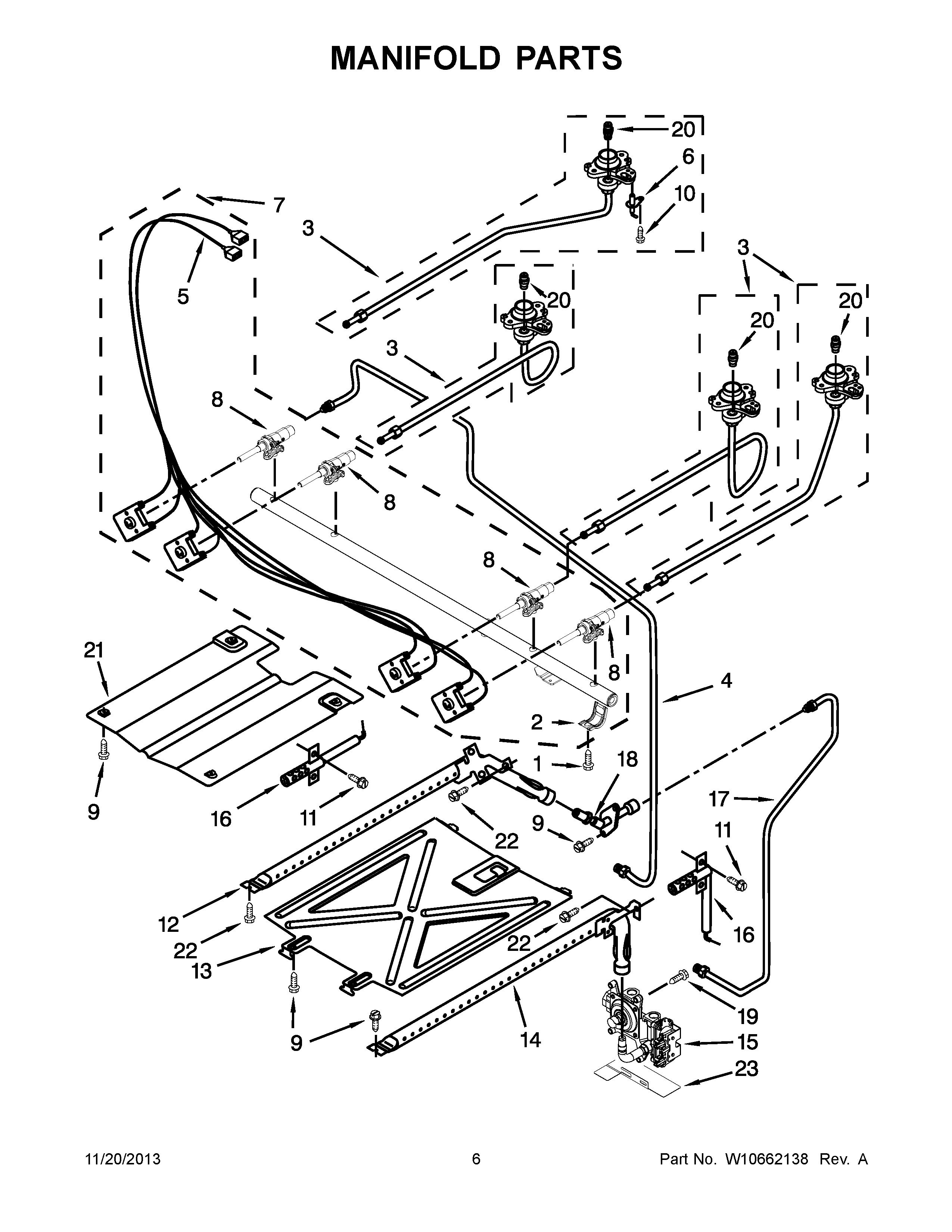

AGR5630BDS1 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10400498
NI	SPUDS, LP GAS (KIT OF 4)
NI	ORIFICE, LP BAKE
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3	MAY W10473929
3	MAY W10474154
3	MAY W10474163
3	MAY W10474169
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10295998
6	ELECTRODE (RIGHT REAR)
7	MAY W10314242
8	VALVE, GAS (RIGHT REAR)
8	VALVE, GAS (LEFT REAR)
9	Screw
10	MAY 8273062
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	Igniter (Broil)
16	ELECTRODE, BAKE
17	TUBE, BROILER SUPPLY
18	MAY W10340259
19	SCREW
20	ORIFICE, BURNER (12K) (RIGHT FRONT)
20	ORIFICE, NATURAL (5K) (RIGHT REAR)
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
21	SPREADER, FLAME (BROILER)
22	SCREW
23	BRACKET, AEGIS
