AGR5630BDS1 06 – DRAWER AND BROILER PARTS

AGR5630BDS1 06 – DRAWER AND BROILER PARTS

Written by

in

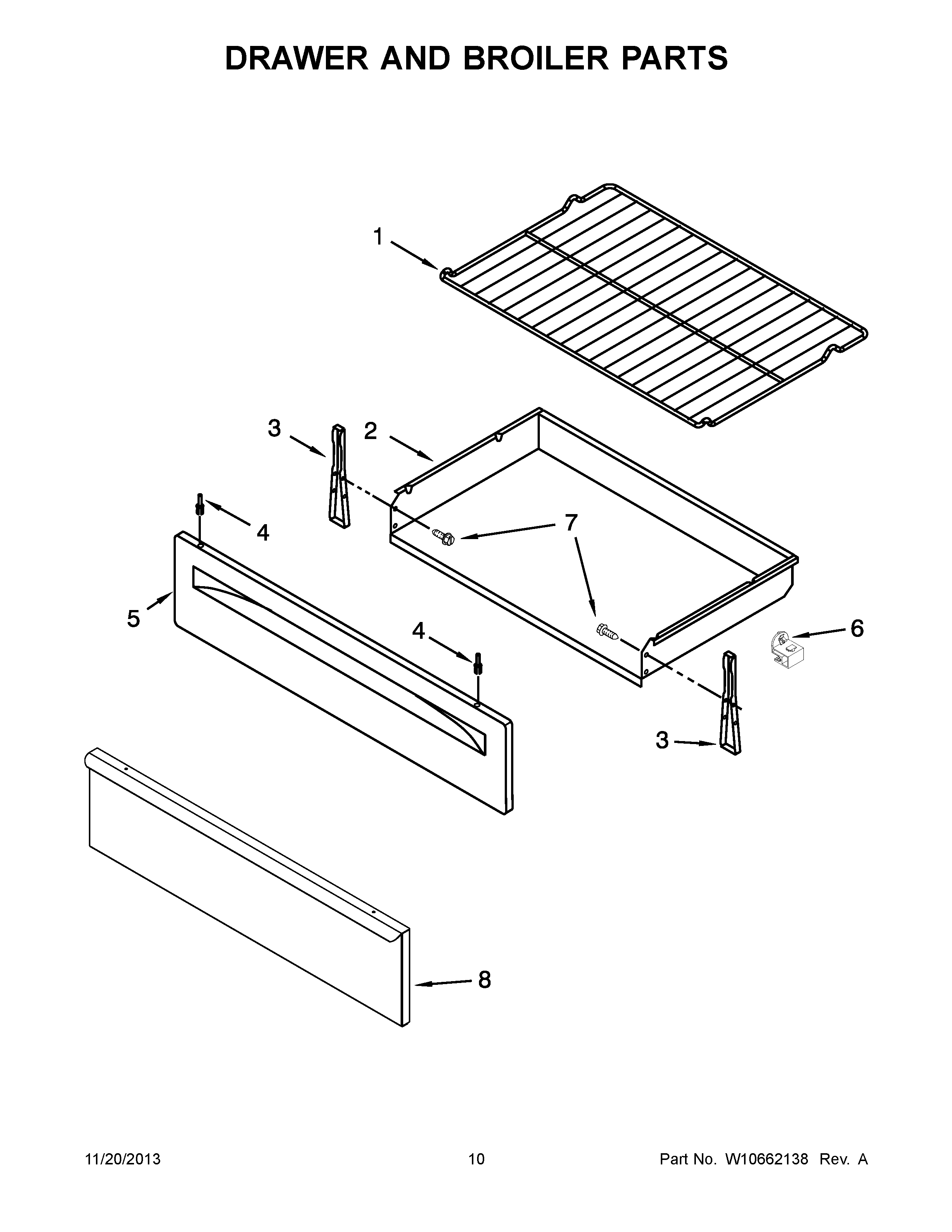

AGR5630BDS1 06 – DRAWER AND BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
3BRACKET, DRAWER MOUNTING (WHITE MODEL)
4RIVET, PUSH (BLACK)
4RIVET, PUSH (WHITE)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER (BLACK)
6GLIDE, REAR DRAWER
7SCREW
8PANEL, FRONT (STAINLESS)
