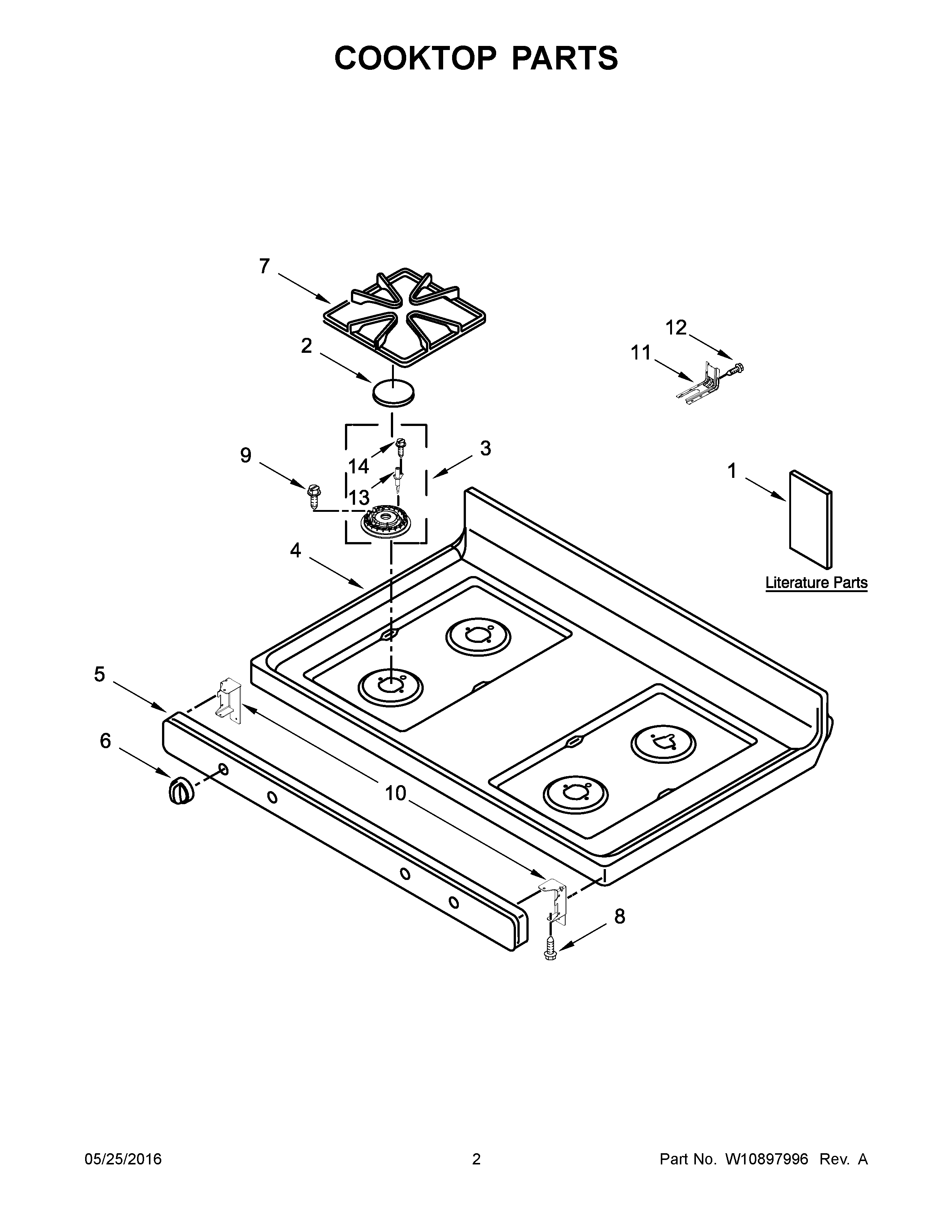

AGR5630BDS2 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	MAY W10519920
NI	HARNESS, COOKTOP
NI	HARNESS, BAKE/BROIL
NI	CLIP, GAS WIRING
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	SCREW
NI	SCREW
NI	TIE, MANIFOLD WIRE
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
1B	TECH SHEET (ENGLISH)
1E	TIPS, SAFE COOKING (FRENCH)
1D	TIPS, SAFE COOKING (ENGLISH)
1C	TECH SHEET (FRENCH)
2	CAP, BURNER (BLACK)
2A	CAP, BURNER (WETSTONE)
3B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
3	MAY W10515452
3A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
4A	MAY 8272251
4	MAY 8272253
5	MAY 8523855
5A	MAY 8523854
6A	KNOB, CONTROL (WHITE)
6	KNOB, CONTROL (BLACK)
7A	MAY W10683630
7	KIT, GRATE (BLACK)
8	SCREW
9	MAY 3196557
10	BRACKET, MANIFOLD
11	BRACKET, ANTI-TIP
12	SCREW, ANTI-TIP KIT
13	ELECTRODE (RIGHT REAR)
14	MAY 8273062
