AGR5630BDS2 05 – CHASSIS PARTS

AGR5630BDS2 05 – CHASSIS PARTS

Written by

in

AGR5630BDS2 05 – CHASSIS PARTS

Products

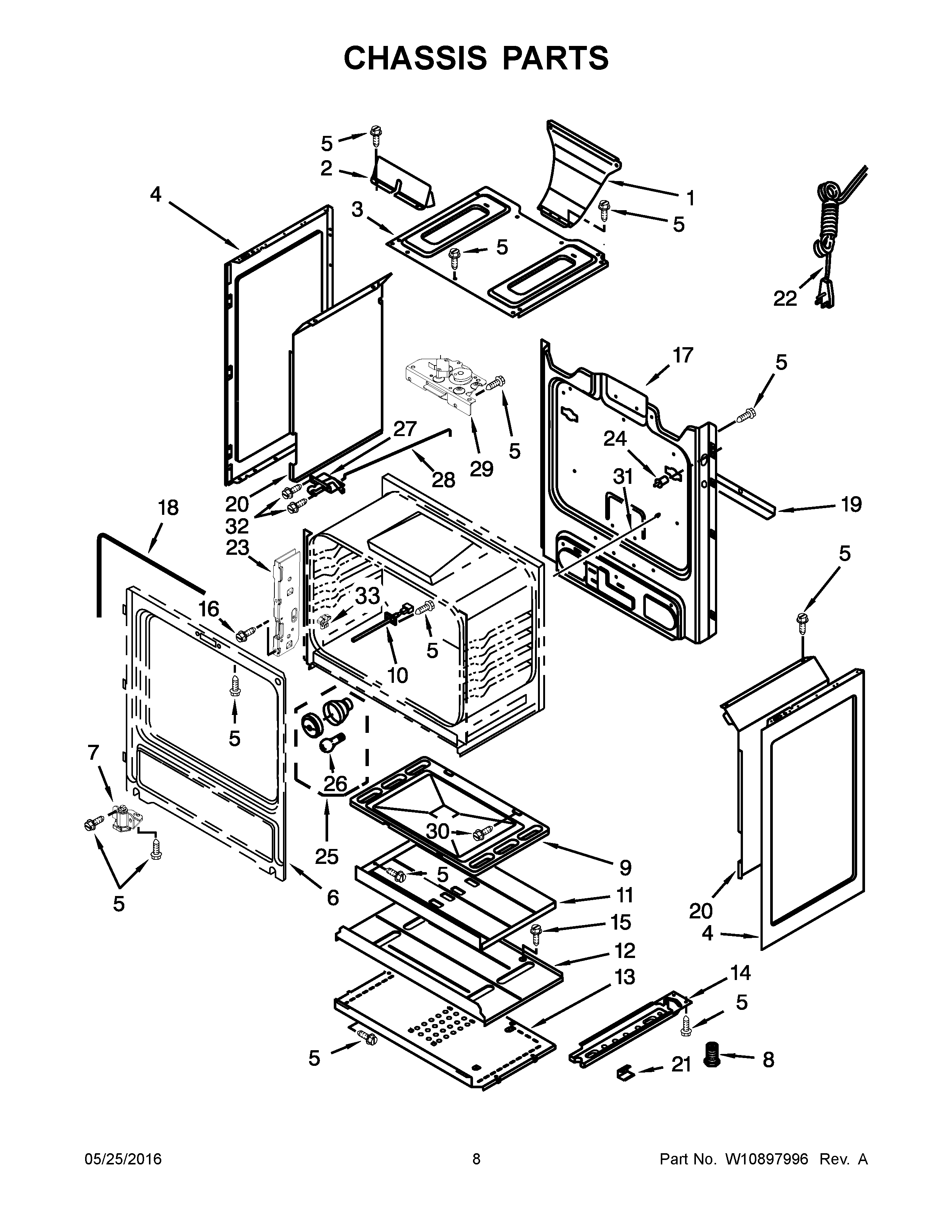

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	BOX, FLUE
2	SHIELD, FLUE
3	BOX-BURNER, GAS SEALED
4	PANEL, SIDE (BLACK)
4A	PANEL, SIDE (WHITE)
5	SCREW
6	LINER (NOT A SERVICEABLE PART)
7	ASSEMBLY, FRONT FOOT
8	FOOT, LEVELING
9	BOTTOM, OVEN
10	MAY W10586204
11	BAFFLE, BURNER OVEN
12	SHIELD, HEAT
13	SHIELD, LOWER
14	ASSEMBLY, BASE RAIL (LEFT)
14A	ASSEMBLY, BASE RAIL (RIGHT)
15	Screw
16	MAY W10031780
17	MAY W10224919
18	SEAL, DOOR
19	BRACE, MAIN BACK
20A	MAY 9761448
20	MAY 9761449
21	CLIP, PANEL
22	CORD, POWER
23	RECEIVER, HINGE
24	SWITCH, DOOR
25	ASSEMBLY, LIGHT
26	BULB, OVEN LIGHT
27	ASSEMBLY, DOOR LATCH (FRONT)
28	ROD, PUSH LATCH
29	ASSEMBLY, DOOR LATCH (REAR)
30	SCREW
31	ROD, DOOR SWITCH
32	SCREW
33	GLIDE, DRAWER FRONT
