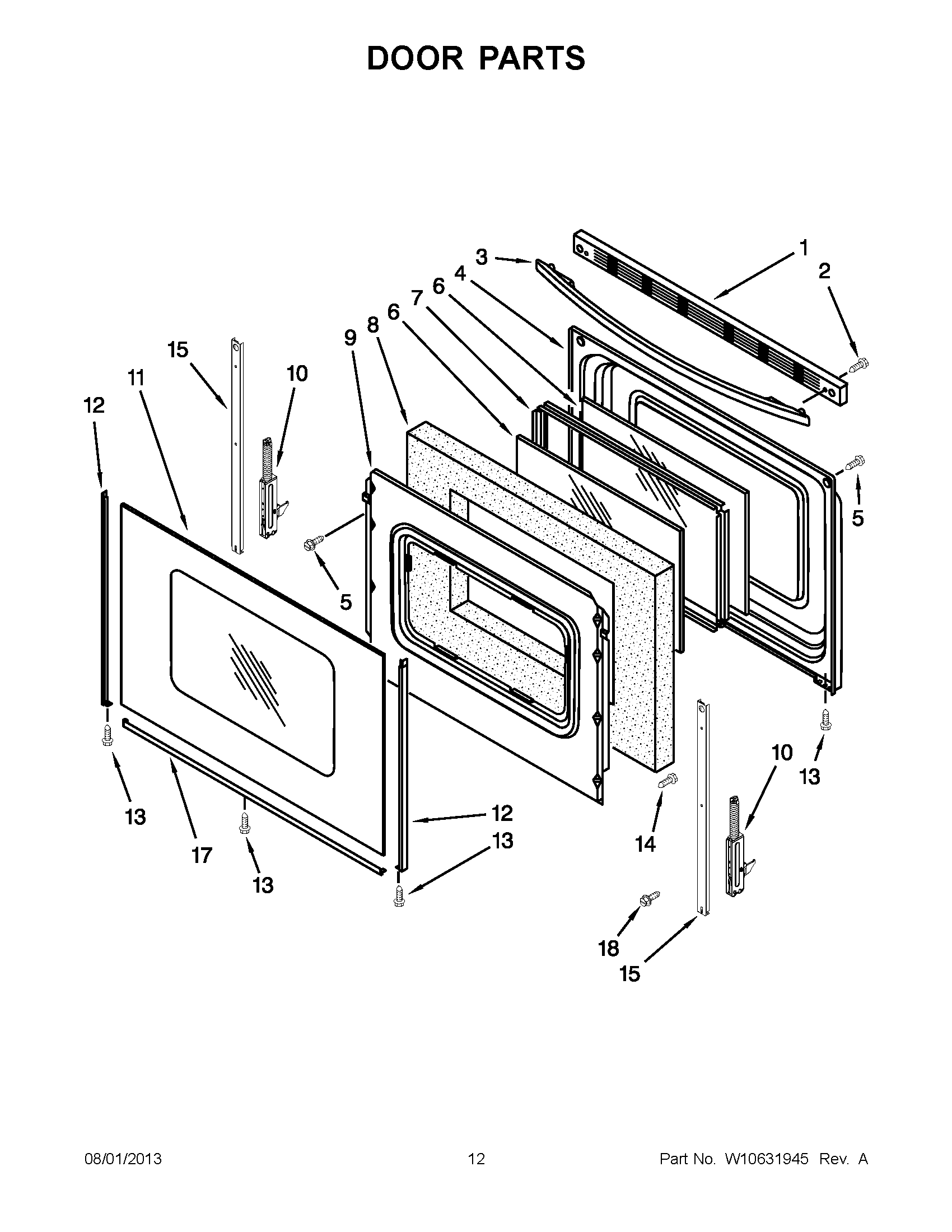

AGR5630BDW0 06 – DOOR PARTS

AGR5630BDW0 06 – DOOR PARTS

Written by

in

AGR5630BDW0 06 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
1TRIM, TOP (BLACK)
2SCREW
3HANDLE, DOOR (WHITE)
3HANDLE, DOOR (BLACK)
3LINER, DOOR
3HANDLE, DOOR (STAINLESS)
5SCREW
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11Glass, Outer (White)
11GLASS, OUTER (STAINLESS)
11Glass, Outer (Black)
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (BLACK, RIGHT HAND)
13MAY 3196160
14SCREW
15STRAP, DOOR
17TRIM, LOWER (WHITE)
17TRIM, LOWER (BLACK)
18MAY W10031780
