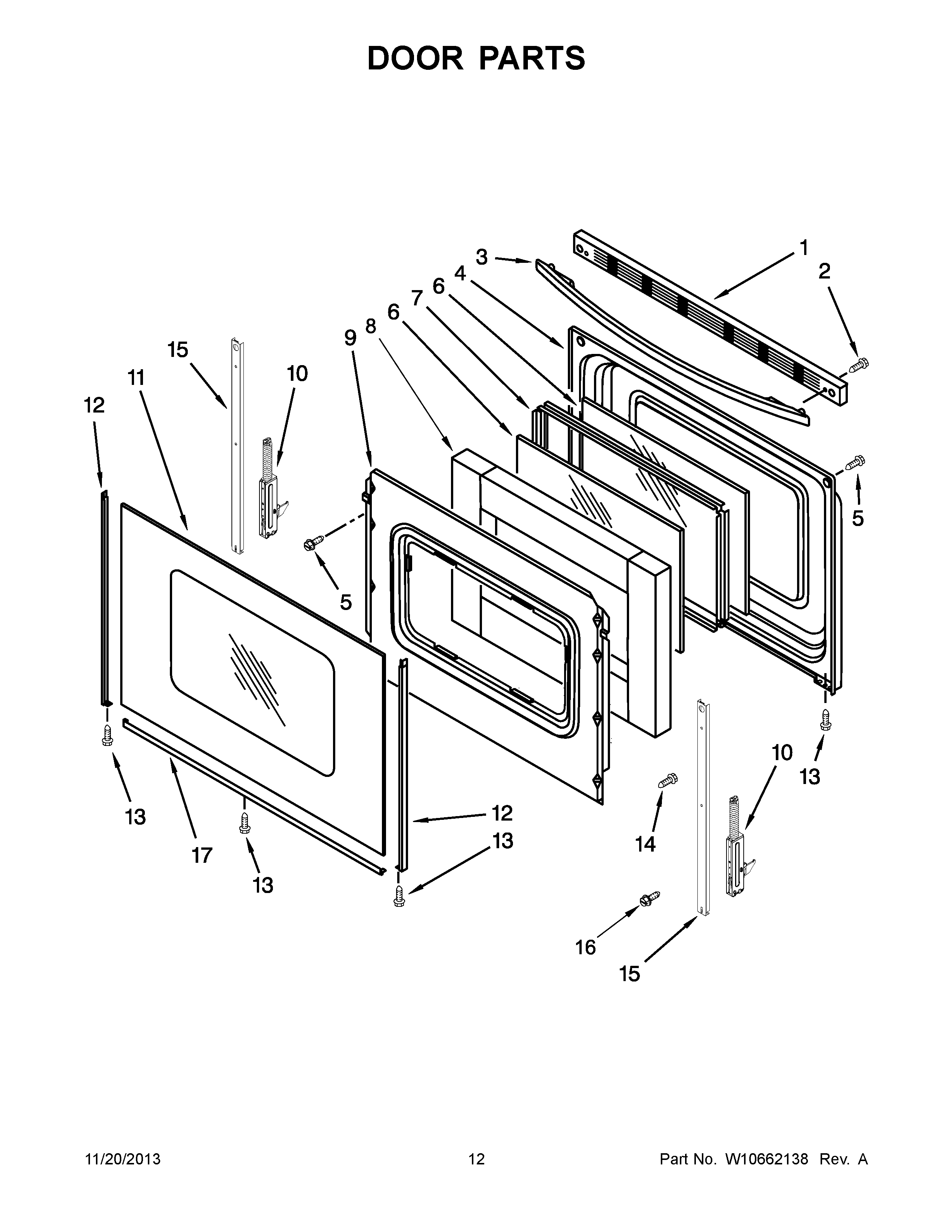

AGR5630BDW1 07 – DOOR PARTS

AGR5630BDW1 07 – DOOR PARTS

Written by

in

AGR5630BDW1 07 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (WHITE)
3	HANDLE, DOOR (BLACK)
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE (WITH SPRING)
10	HINGE, DOOR (PASSIVE)
11	Glass, Outer (White)
11	GLASS, OUTER (STAINLESS)
11	Glass, Outer (Black)
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (BLACK, RIGHT HAND)
13	MAY 3196160
14	SCREW
15	STRAP, DOOR
16	MAY W10031780
17	TRIM, LOWER (BLACK)
17	TRIM, LOWER (WHITE)
