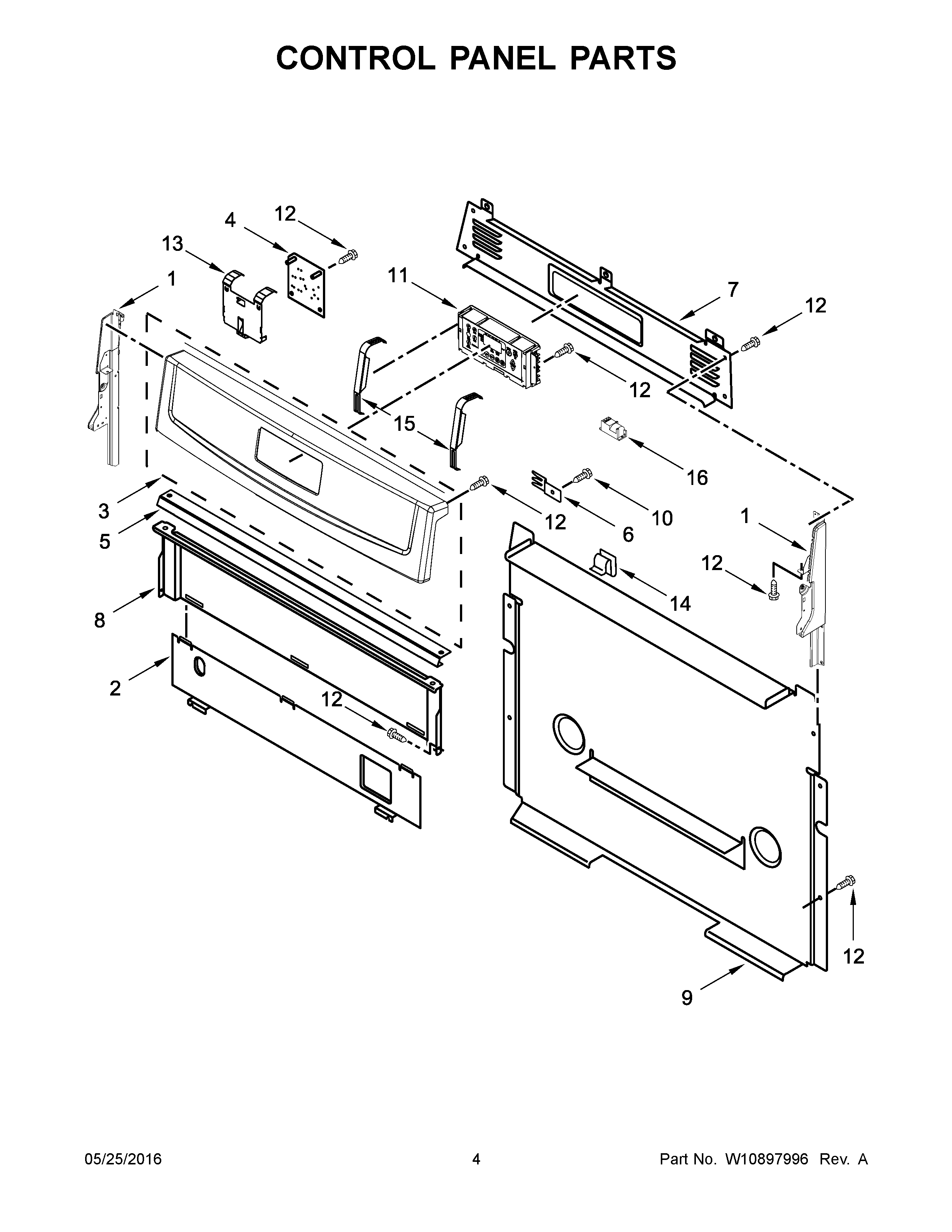

AGR5630BDW2 03 – CONTROL PANEL PARTS

AGR5630BDW2 03 – CONTROL PANEL PARTS

Written by

in

AGR5630BDW2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1B	ENDCAP (WHITE (LEFT))
1A	ENDCAP (BLACK (RIGHT))
1C	ENDCAP (WHITE (RIGHT))
2	SHIELD, HEAT
3B	MAY W10572583
3	MAY W10572581
3A	MAY W10572579
4	MAY W10511278
5	BRACKET, CONSOLE MOUNTING
6	BRACKET, REAR COOKTOP
7	COVER, UPPER
8	SHIELD, HEAT
9	COVER, BACK
10	SCREW
11A	MAY W10833995
11	MAY W10833996
12	SCREW
13	MAY W10516463
14	MAY 8273564
15	BRACKET, CONTROL
16	MODULE, SPARK
