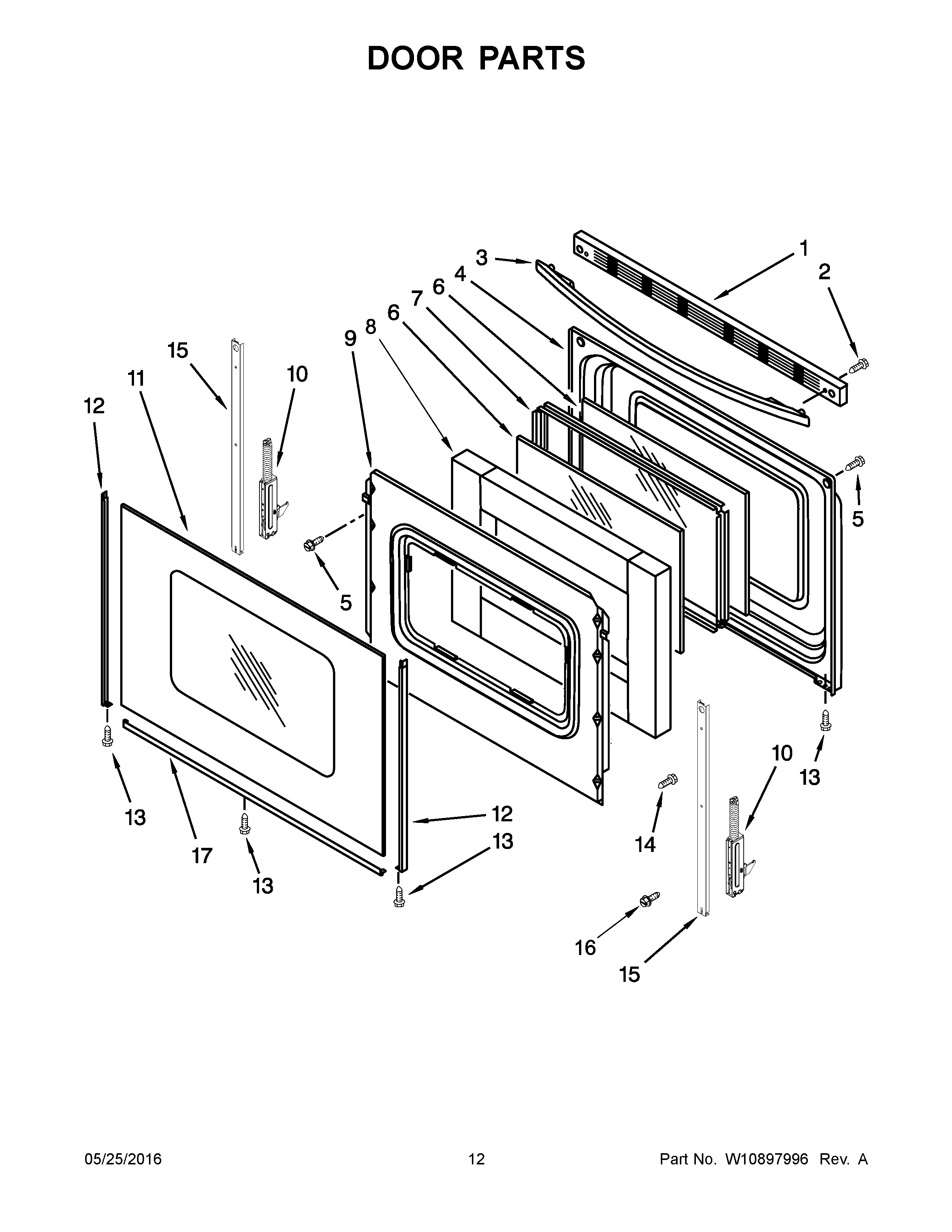

AGR5630BDW2 07 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1ATRIM, TOP (WHITE)
2SCREW
3AHANDLE, DOOR (WHITE)
3HANDLE, DOOR (BLACK)
3BHANDLE, DOOR (STAINLESS)
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, DOOR (PASSIVE)
10AHINGE, ACTIVE (WITH SPRING)
11AGlass, Outer (White)
11BGLASS, OUTER (STAINLESS)
11Glass, Outer (Black)
12BTRIM, SIDE (WHITE (LEFT))
12CTRIM, SIDE (WHITE (RIGHT))
12ATRIM, SIDE (BLACK (RIGHT))
12TRIM, SIDE (BLACK (LEFT))
13MAY 3196160
14SCREW
15STRAP, DOOR
16MAY W10031780
17TRIM, LOWER (BLACK)
17ATRIM, LOWER (WHITE)
