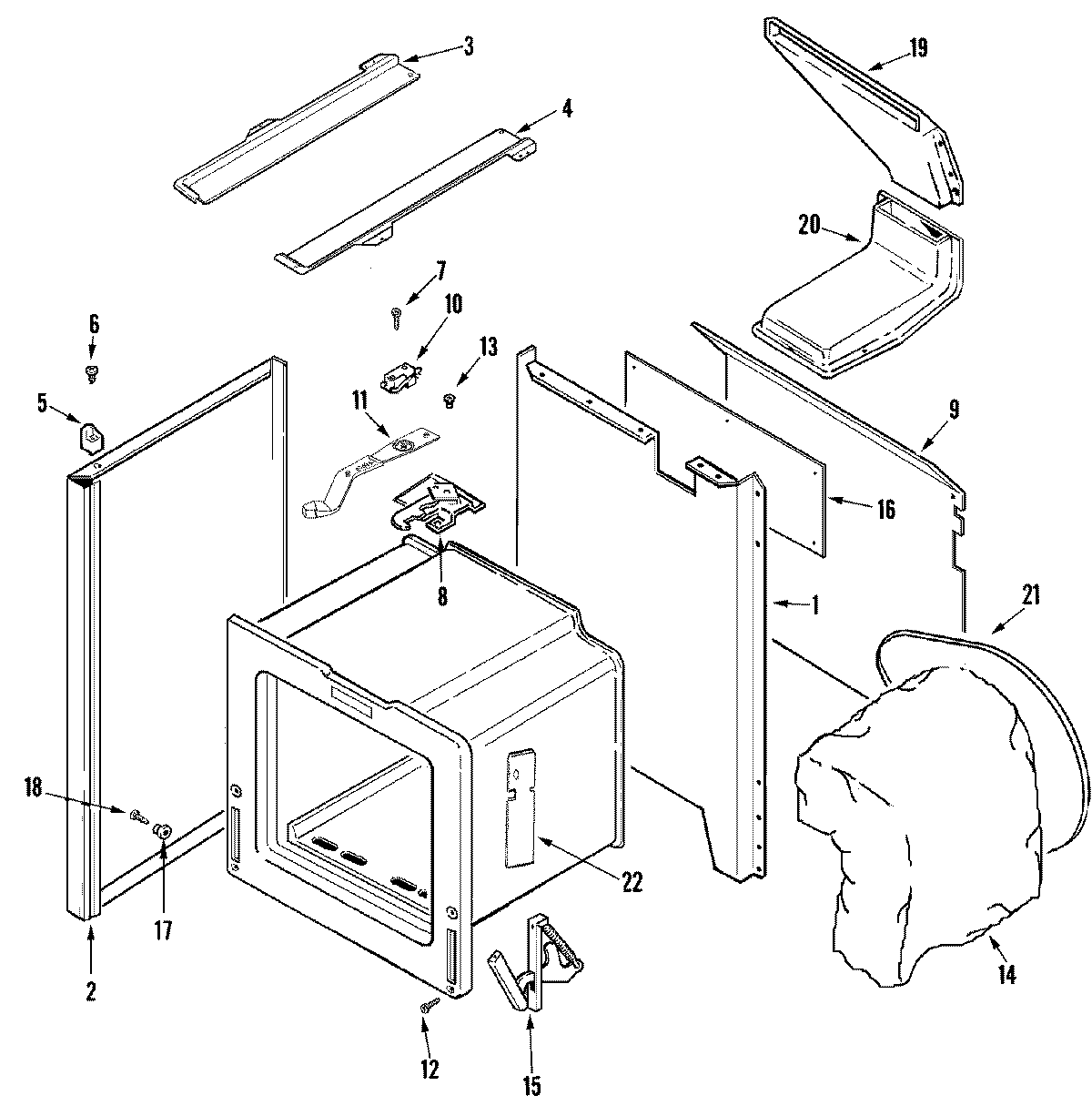

AGR5712ADS 01 – BODY

AGR5712ADS 01 – BODY

Written by

in

AGR5712ADS 01 – BODY

Products

PositionProduct
1CLIP, WIRE LOCK
1GROMMET
1MAY 74009884
2MAY 74003283
2MAY 71001394
2TAPE, FOIL (3“ WIDE)
3MAY 74009768
4MAY 74009767
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
7MAY 7101P330-60
8MAY 74009764
874003975 Whirlpool Screw P1 (8ABX3/8-BLK)
9MAY 74009654
9COVER, BROIL ACCESS FITTING
10MAY 74009591
11MAY 74010244
12SCREW (10-24X5/16-NI)
13SCREW, LEVER
14WP74010942 Whirlpool Insulation
14MAY 74009201
15WP74011140 Whirlpool Oven Hinge
16MAY 3604F165-51
17MAY 8004P024-60
18SCREW
18MAY 74007476
19MAY 4022W007-19
19SCREW (8BX3/8-NI)
20WP74003976 Whirlpool Screw
20MAY 74006420
21MAY 74003385
22MAY 74009569
