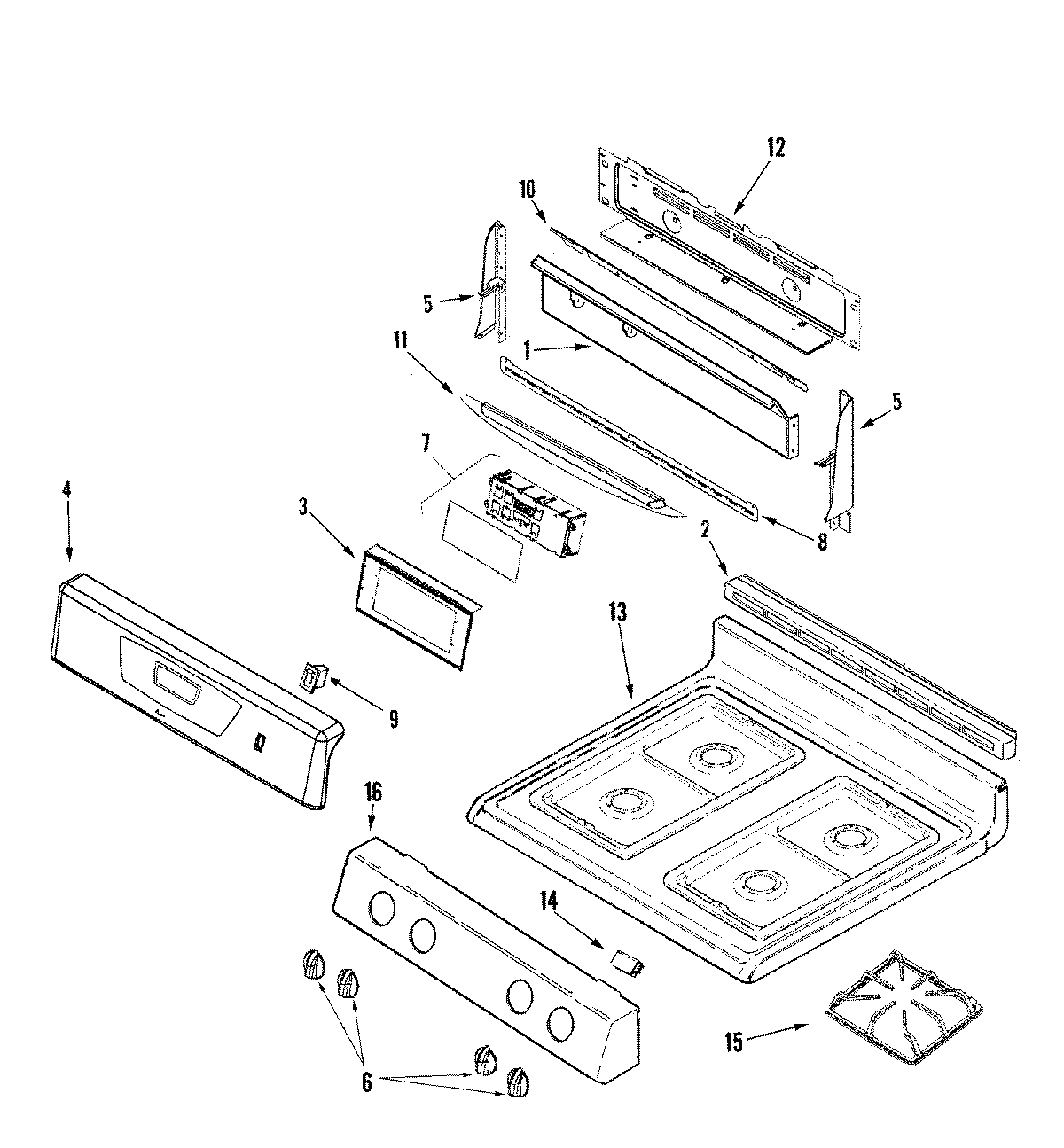

AGR5712ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	SCREW (8BX3/8-NI)
1	MAY 74009779
2	MAY 74009797
2	SCREW (10ABX1/4P TR ZN)
3	MAY 74008716
4	MAY 74008836
4	MAY 74008823
5	MAY 74010211
5	MAY 74010212
5	WP98008544 Whirlpool Screw Assembly
5	WP74003976 Whirlpool Screw
6	MAY 74008852
7	WP5701M765-60 Whirlpool Electronic Control Board
8	MAY 74009780
9	74008717 Whirlpool White Rocker Switch
10	SCREW
10	MAY 74009978
11	MAY 74009802
11	MAY 74009799
12	WP90767 Whirlpool Screw
12	MAY 74009943
12	MAY 71001394
12	MAY 74006536
13	WP74005546 Whirlpool RU Spacer
13	MAY 74003512
14	MAY 74004827
15	MAY 74001769
16	MAY 74009829
