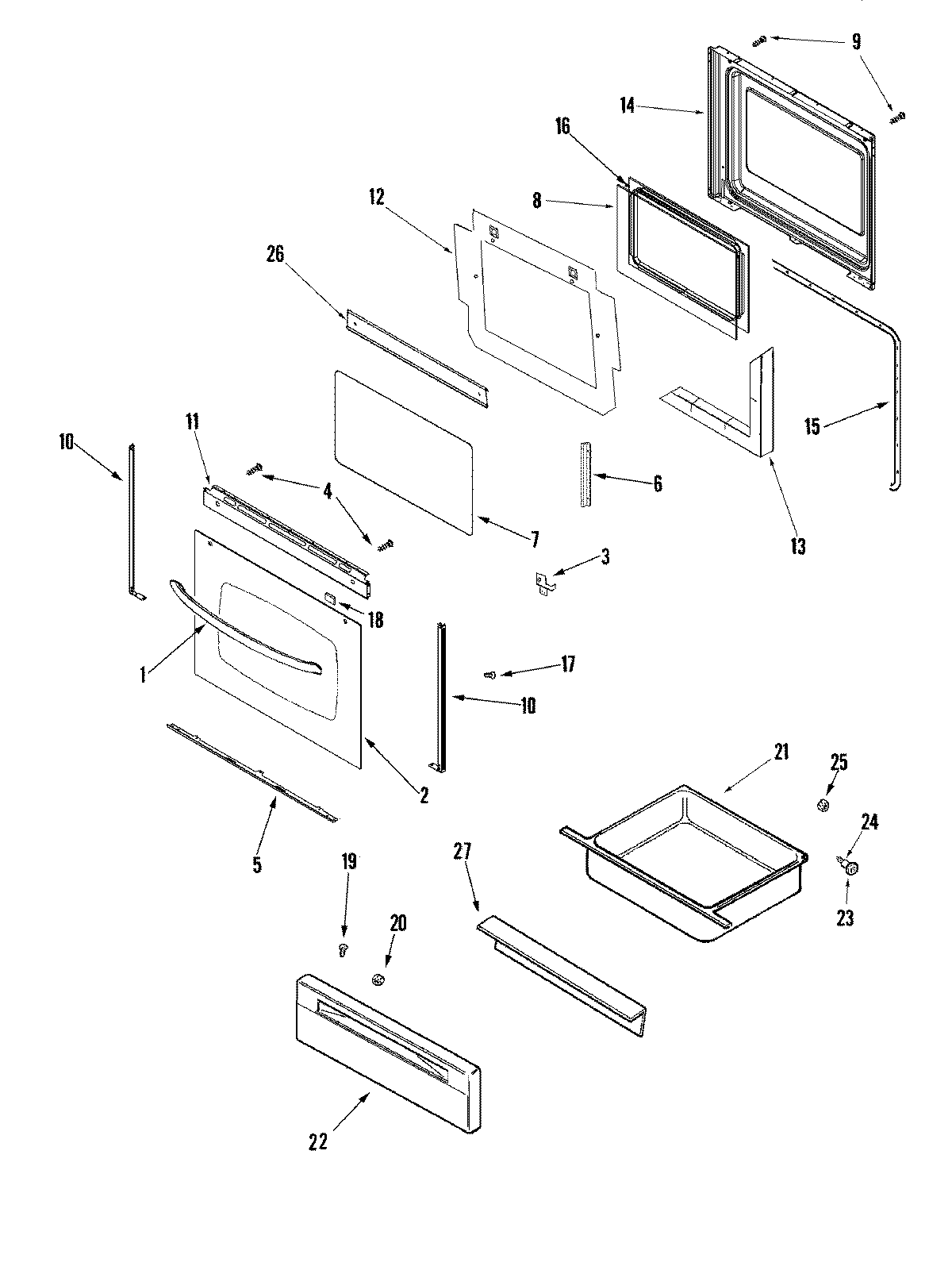

AGR5712ADZ 03 – DOOR/DRAWER (SLV)

Products

Position	Product
1	HANDLE, DOOR (BLK)
2	MAY 74011344
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
5	SUPPORT, GLASS (BLK)
5	WP74004224 Whirlpool Tape
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
10	WP3608F116-70 Whirlpool Door Trim
10	WP3608F117-70 Whirlpool Door Trim
11	MAY 74009689
12	MAY 74011339
12	3601F373-51 Whirlpool Baffle
12	MAY 7101P356-60
13	INSULATION, OVEN DOOR
14	MAY 74003642
14	NUT, SNAP (ROUND-BLK)
14	LINING, DOOR
15	GASKT-DOOR OVEN
16	FRAME, GLASS
18	WP74005546 Whirlpool RU Spacer
18	SPACER, RUBBER (BLK-SQUARE)
18	SCREW, 8 X 1/2
21	MAY 74008337
22	WPW10131078 Whirlpool Nut Assembly
22	MAY 74010880
23	SHAFT, STORAGE DRAWER ROLLER
24	WP74004078 Whirlpool Door Roller
25	WP488130 Whirlpool Air Conditioner Nut
26	LINING, DRAWER PANEL
26	SCREW
27	MAY 74010837
