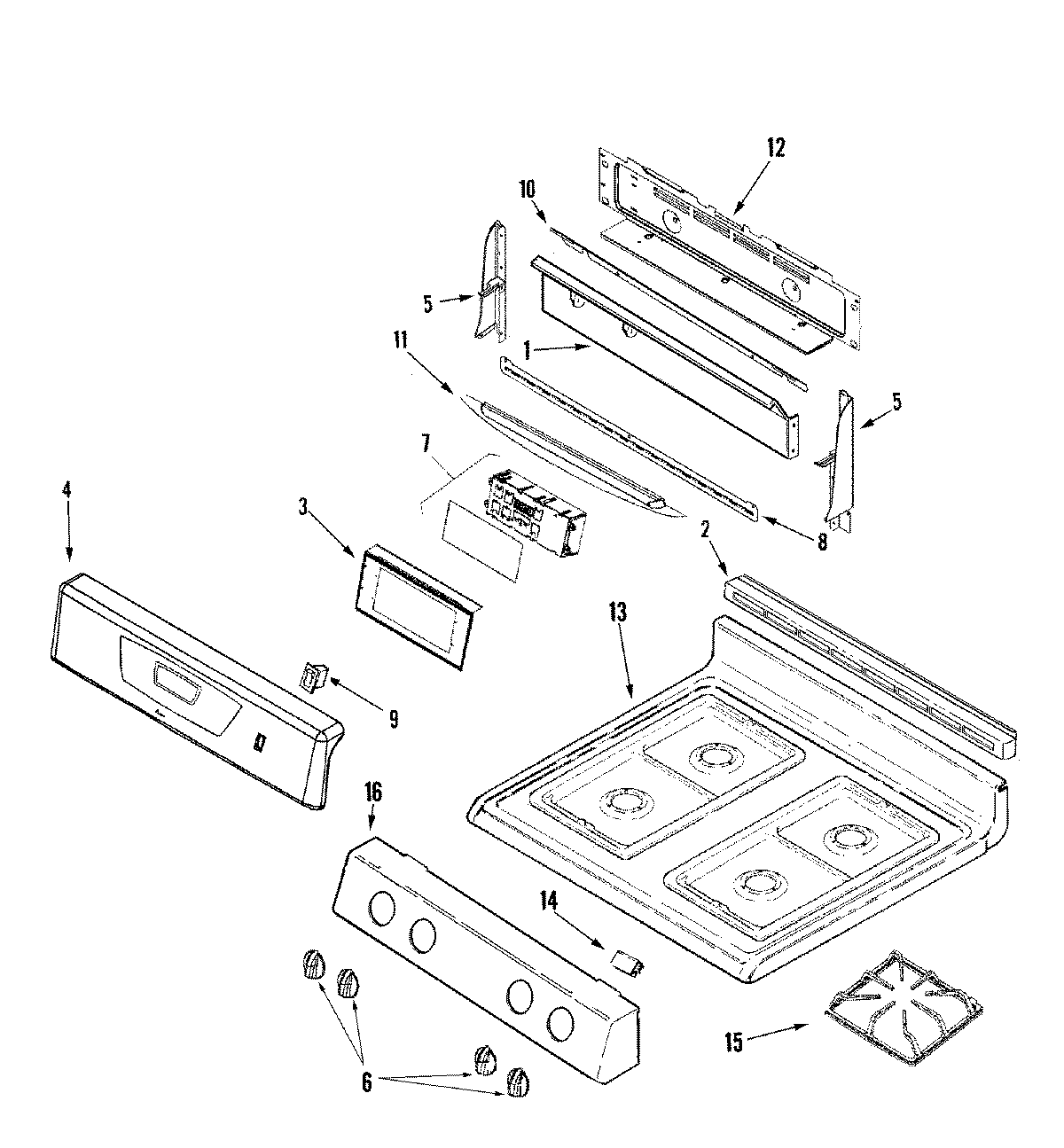

AGR5712BDB 02 – CONTROL PANEL/TOP ASSEMBLY

AGR5712BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AGR5712BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74008836
4MAY 74009036
5WP98008545 Whirlpool Screw
5WP74003976 Whirlpool Screw
5MAY 74010201
5MAY 74010202
6MAY 74008850
7MAY 74010404
8MAY 74009780
9SWITCH, ROCKER (BLK)
10MAY 74009978
10SCREW
11MAY 74009800
11MAY 74009801
12MAY 74006536
12MAY 71001394
12WP90767 Whirlpool Screw
12MAY 74010983
13WP74005546 Whirlpool RU Spacer
13MAY 71003047
14MAY 74004827
15MAY 74001769
16MAY 74009827
