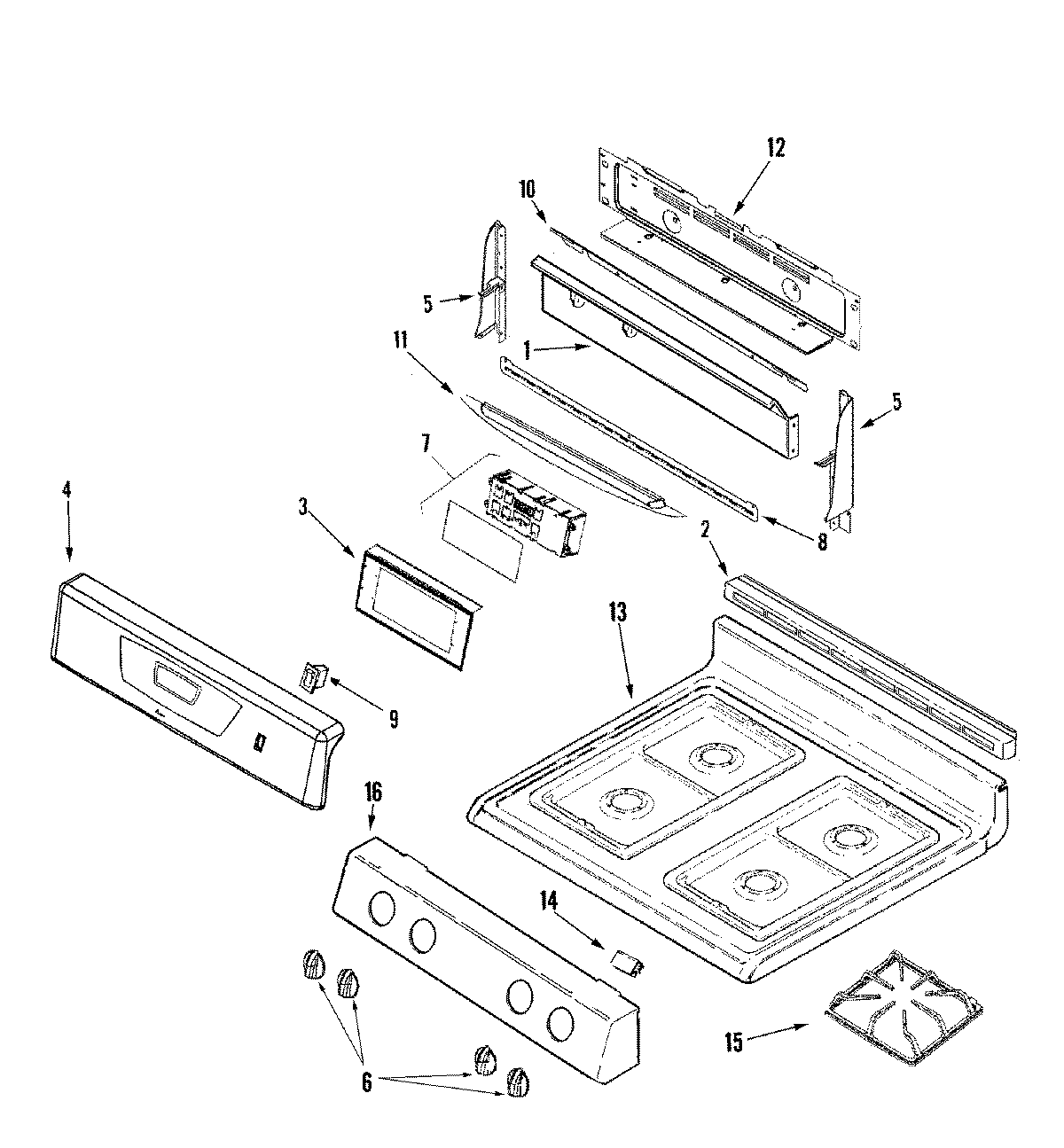

AGR5712BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

AGR5712BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AGR5712BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74008824
4MAY 74008836
5MAY 74010213
5WP74009541 Whirlpool Screw Assembly
5MAY 74010214
5WP74003976 Whirlpool Screw
6MAY 74008851
7MAY 74010406
8MAY 74009780
974008765 Whirlpool Range Oven Rocker Switch Bisque
10MAY 74009978
10SCREW
11MAY 74009803
11MAY 74009798
12MAY 74010983
12MAY 74006536
12WP90767 Whirlpool Screw
12MAY 71001394
13MAY 74004964
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15MAY 74001769
16MAY 74009830
