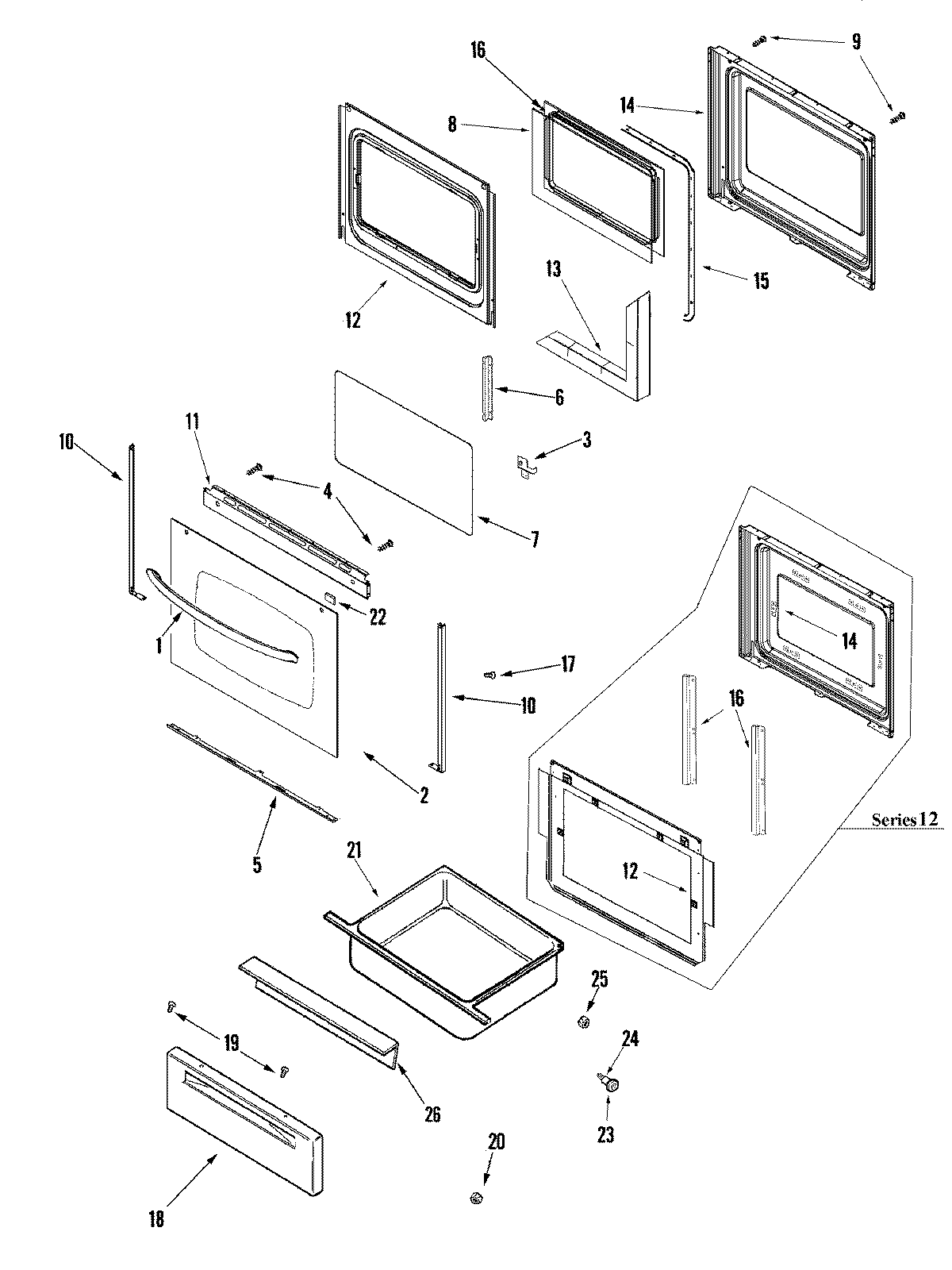

AGR5712BDQ 03 – DOOR/DRAWERadmin2025-04-26T11:30:47+00:00AGR5712BDQ 03 – DOOR/DRAWER
Products
| Position | Product |
|---|
| 1 | MAY 74008323 |
| 2 | MAY 74009733 |
| 3 | 3801F832-45 Whirlpool Bracket |
| 3 | 3801F831-45 Whirlpool Bracket Assembly |
| 4 | WP74006515 Whirlpool Washer Screw |
| 4 | WP98008545 Whirlpool Screw |
| 5 | SUPPORT, GLASS (BSQ) |
| 6 | MAY 74003650 |
| 7 | GLASS, DOOR |
| 8 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 10 | TRIM, DOOR (BSQ-LT) |
| 10 | WP74009014 Whirlpool Double Tape |
| 10 | TRIM, DOOR (BSQ-RT) |
| 11 | MAY 74009691 |
| 12 | MAY 7101P356-60 |
| 12 | MAY 74009502 |
| 12 | 3601F373-51 Whirlpool Baffle |
| 13 | INSULATION, OVEN DOOR |
| 14 | LINING, DOOR |
| 14 | MAY 74003642 |
| 14 | SCREW |
| 15 | GASKT-DOOR OVEN |
| 16 | FRAME, GLASS |
| 16 | 3801F886-51 Whirlpool Mounting Bracket |
| 16 | SCREW, 8 X 1/2 |
| 17 | WP74009541 Whirlpool Screw Assembly |
| 18 | PANEL, DRAWER (BSQ) |
| 20 | WPW10131078 Whirlpool Nut Assembly |
| 21 | MAY 74008337 |
| 22 | SPACER, RUBBER (BLK-SQUARE) |
| 23 | WP74004078 Whirlpool Door Roller |
| 24 | SHAFT, STORAGE DRAWER ROLLER |
| 25 | WP488130 Whirlpool Air Conditioner Nut |
| 26 | LINING, DRAWER PANEL |
