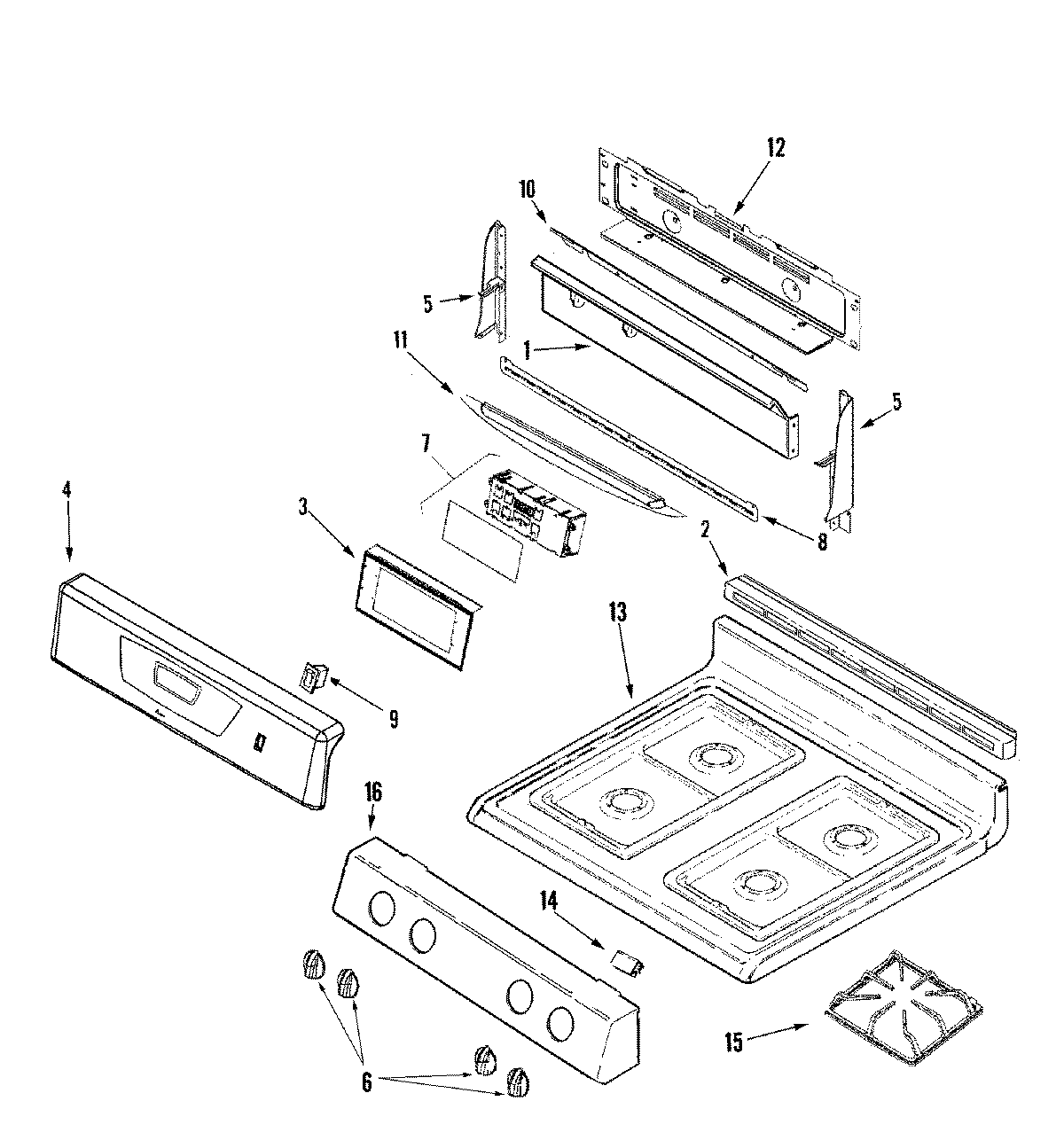

AGR5712BDW 02 – CONTROL PANEL/TOP ASSEMBLY

AGR5712BDW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AGR5712BDW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74008823
4MAY 74008836
5MAY 74010211
5WP74003976 Whirlpool Screw
5WP98008544 Whirlpool Screw Assembly
5MAY 74010212
6MAY 74008852
7WP5701M765-60 Whirlpool Electronic Control Board
8MAY 74009780
974008717 Whirlpool White Rocker Switch
10SCREW
10MAY 74009978
11MAY 74009799
11MAY 74009802
12WP90767 Whirlpool Screw
12MAY 74010983
12MAY 71001394
12MAY 74006536
13MAY 74003512
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15MAY 74001769
16MAY 74009829
