AGR5712BDZ 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

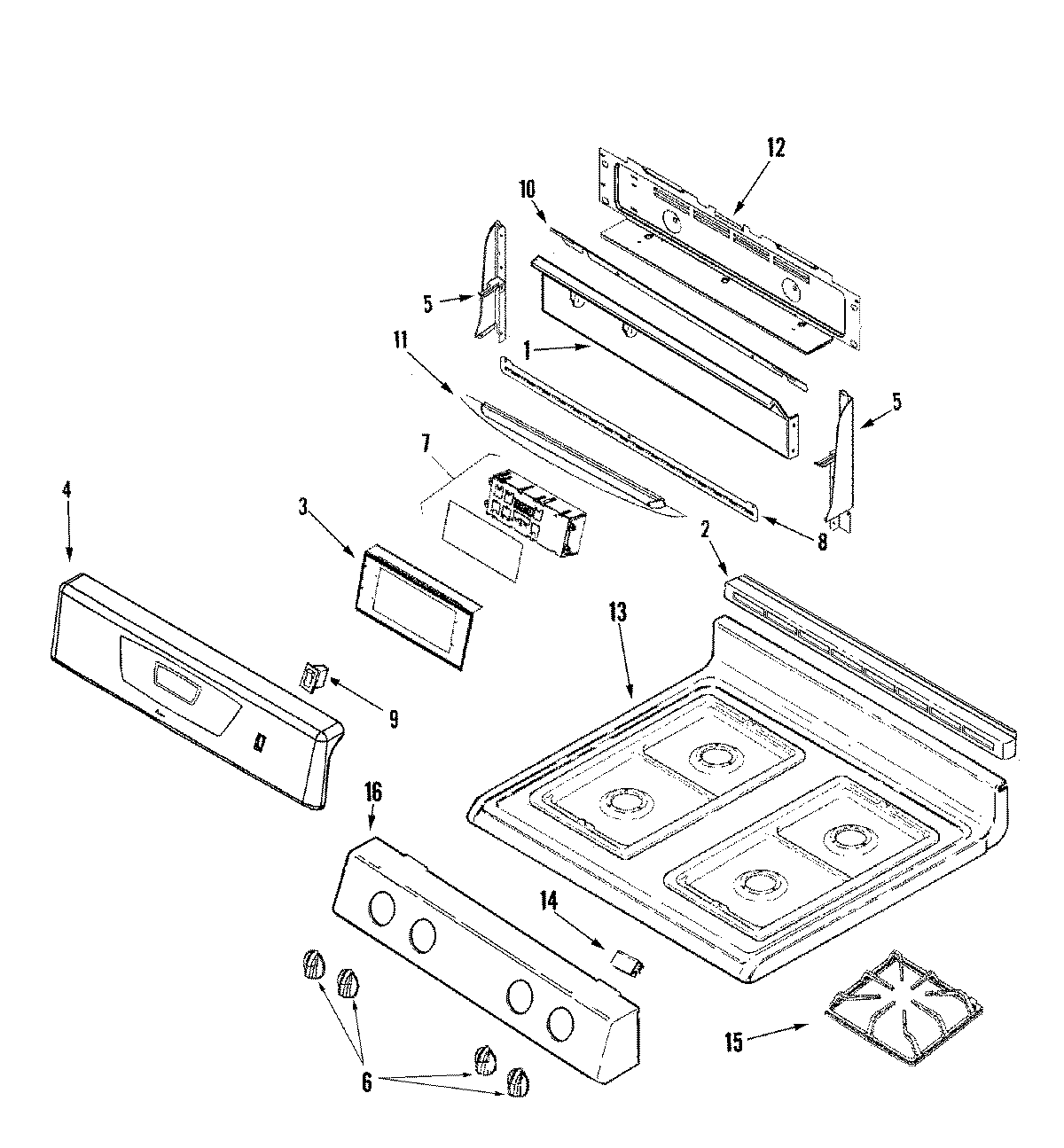

AGR5712BDZ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	SCREW (8BX3/8-NI)
1	MAY 74009779
2	MAY 74009797
2	SCREW (10ABX1/4P TR ZN)
3	MAY 74008716
4	MAY 74008836
4	MAY 74011342
5	WP98008545 Whirlpool Screw
5	WP74003976 Whirlpool Screw
5	MAY 74010201
5	MAY 74010202
6	MAY 74008850
7	MAY 74010404
8	MAY 74009780
9	SWITCH, ROCKER (BLK)
10	MAY 74009978
10	SCREW
11	MAY 74009800
11	MAY 74009801
12	MAY 74006536
12	MAY 71001394
12	WP90767 Whirlpool Screw
12	MAY 74010983
13	WP74005546 Whirlpool RU Spacer
13	MAY 71003047
14	MAY 74004827
15	MAY 74001769
16	MAY 74009827
