AGR5712BDZ 05 – OVEN/BASE

AGR5712BDZ 05 – OVEN/BASE

Written by

in

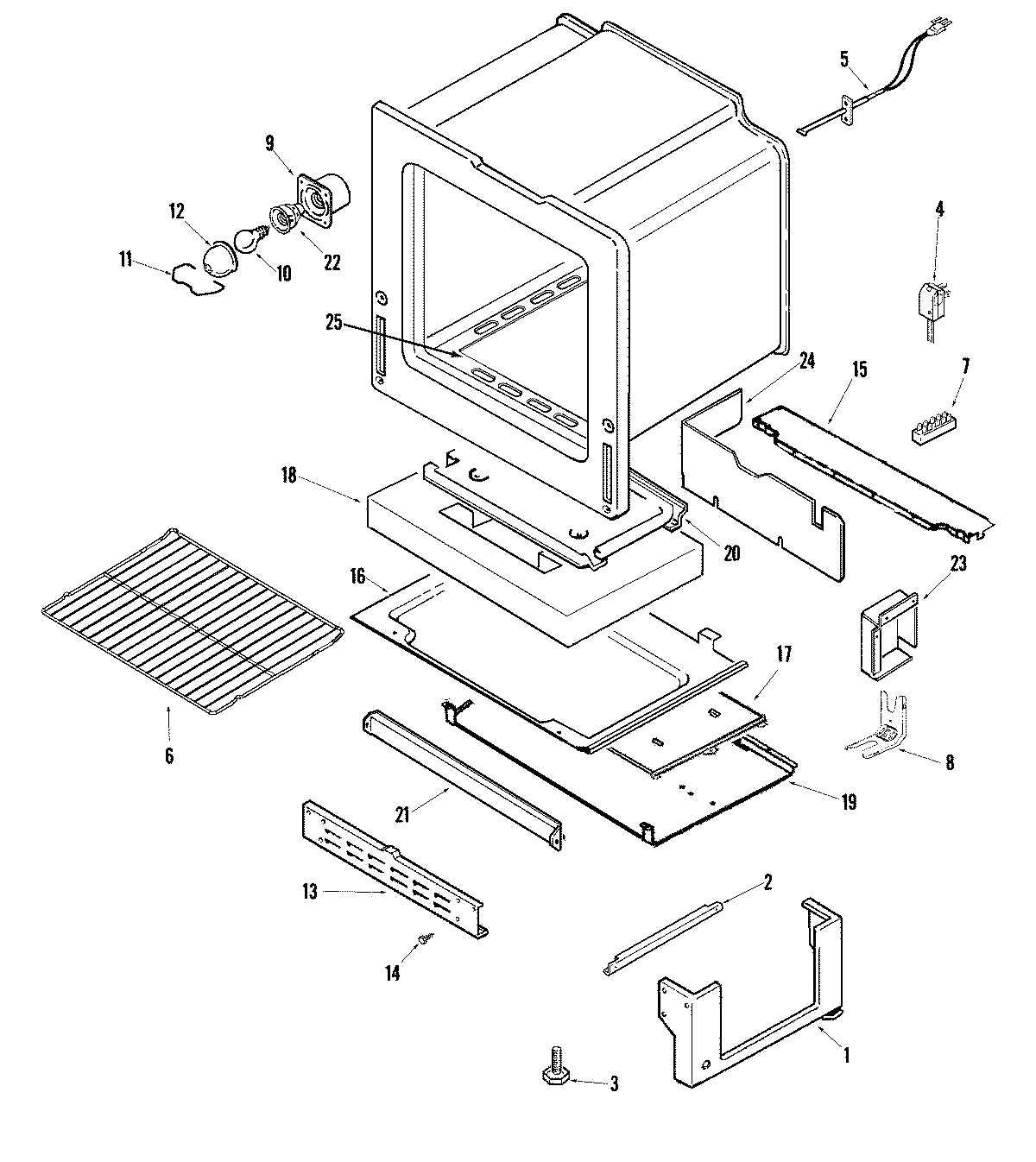

AGR5712BDZ 05 – OVEN/BASE

Products

PositionProduct
1MAY 74005772
2RUNNER, DRAWER
274005230 Whirlpool Oven Lock Nut (8-32)
3W11665456 Whirlpool Range Level Foot
4MAY 74007556
512001655 Whirlpool Oven Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 7401P037-60
8WP3801F656-51 Whirlpool Range Anti-Tip Bracket
8WP7101P485-60 Whirlpool Anchor Tip
9MAY 74003388
10RANGE ONLY 40W 120V APPL BULB
1074004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11MAY 74009231
11MAY 74003391
12MAY 74003389
13MAY 4020F001-80
14SCREW
14LINING, DOOR
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
14WP74005546 Whirlpool RU Spacer
15GASKT-DOOR OVEN
16SCREW, 8 X 1/2
163801F886-51 Whirlpool Mounting Bracket
16FRAME, GLASS
17WP98008545 Whirlpool Screw
18MAY 74010880
21MAY 74008337
22WPW10131078 Whirlpool Nut Assembly
22SPACER, RUBBER (BLK-SQUARE)
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
27MAY 74010837
