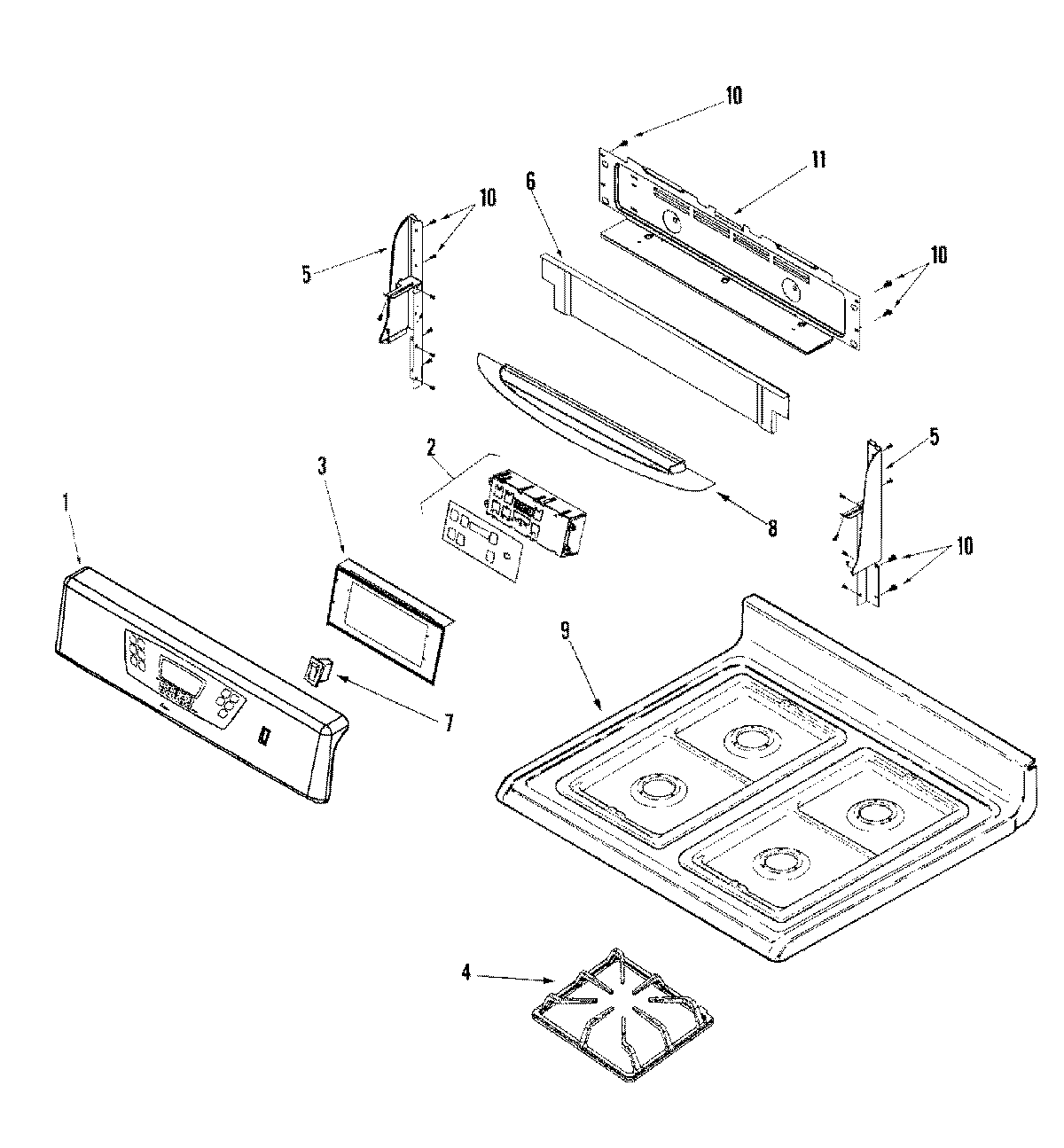

AGR5715QDQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008824
2	WP74009217 Whirlpool Control Board
3	MAY 74008716
4	Grate, Burner (4) (Taupe)
4	W10919249 Whirlpool Burner Grate Foot
4	MAY M0275597
5	END CAP (LT-BSQ)
5	END CAP (RT-BSQ)
6	MAY 74008727
7	74008765 Whirlpool Range Oven Rocker Switch Bisque
8	SHIELD, HEAT VISOR (BSQ)
8	MAY 74008827
8	SCREW, SHOULDER
9	MAY 74008845
10	SCREW
11	MAY 74008730
11	MAY 74008836
11	COVER, BROIL ACCESS FITTING
11	SCREW (8BX3/8-NI)
