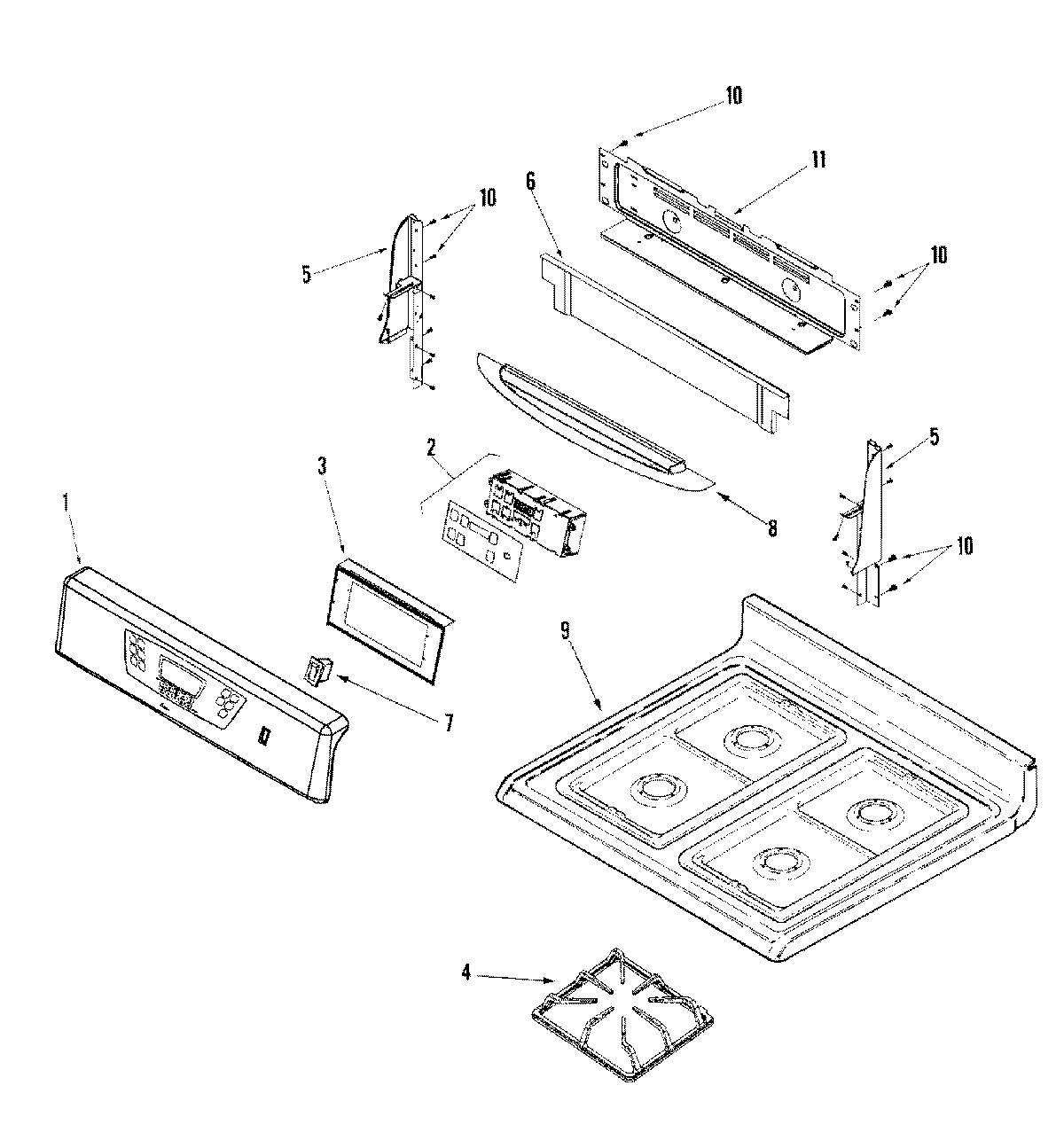

AGR5715QDS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008677
2	MAY 74008664
2	WP74009217 Whirlpool Control Board
3	MAY 74008716
4	MAY 74008870
4	W10919249 Whirlpool Burner Grate Foot
4	MAY M0275597
5	End Cap (Left Black)
5	End Cap (Right Black)
6	MAY 74008725
7	SWITCH, ROCKER (BLK)
8	MAY 74008825
8	SHIELD, HEAT VISOR (BLK)
8	SCREW, SHOULDER
9	MAY 74008843
10	SCREW
11	MAY 74008730
11	COVER, BROIL ACCESS FITTING
11	MAY 74008836
11	SCREW (8BX3/8-NI)
