AGR5725QDQ 01 – CABINET

AGR5725QDQ 01 – CABINET

Written by

in

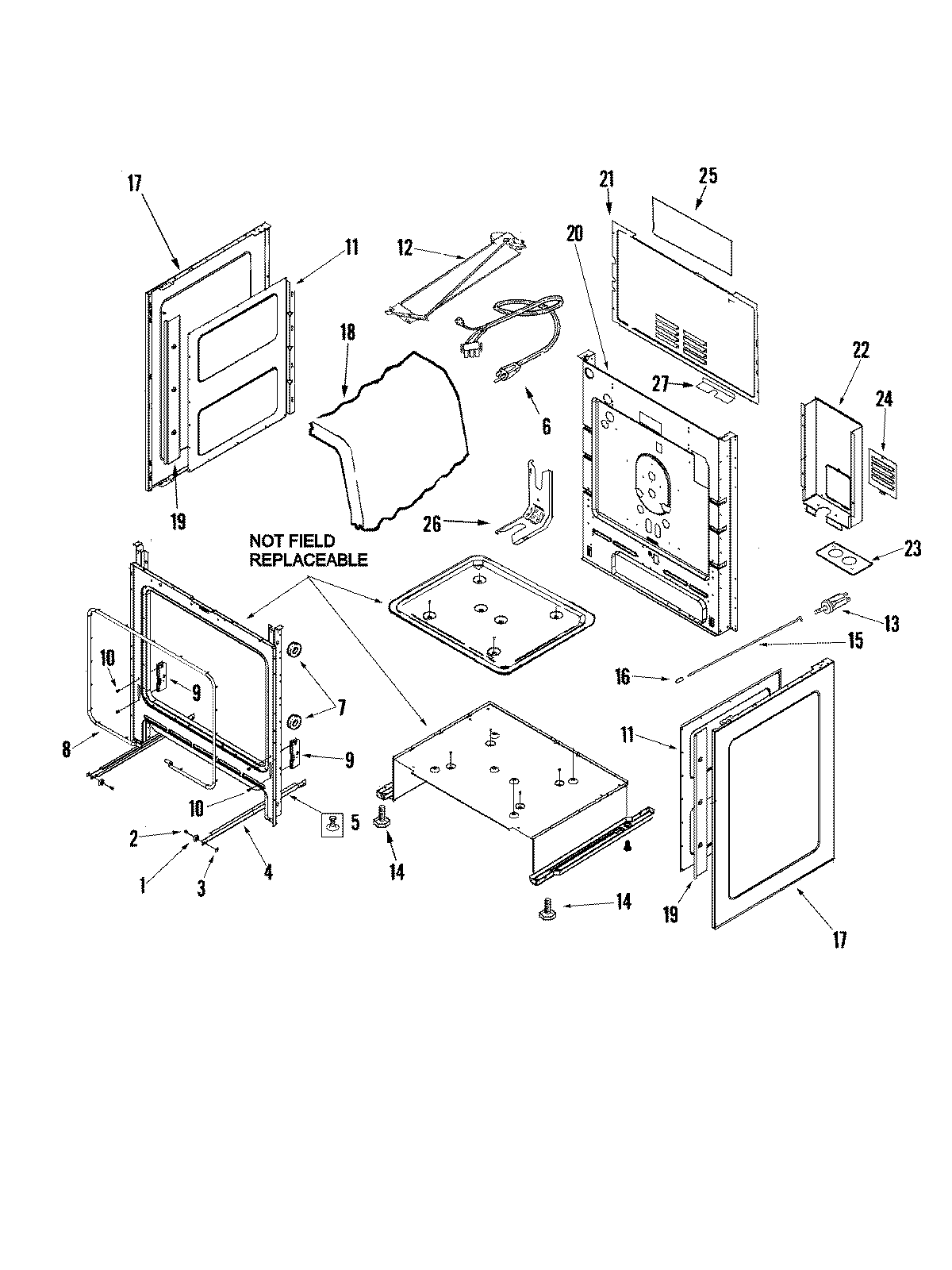

AGR5725QDQ 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
374005230 Whirlpool Oven Lock Nut (8-32)
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008876
7SPACER, SIDE PANEL
7SCREW W/SHOULDER (No.8)
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 74008701
12SCREW
12MAY 74008702
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13MAY 74008704
1374008703 Whirlpool Door Switch
1474008835 Whirlpool Clip Retainer
14W11665456 Whirlpool Range Level Foot
15SLEEVE, ROD TUBE
15MAY 74008706
1674008707 Whirlpool Oven Bumper
17PANEL, SIDE (BSQ)
18MAY 74008698
18INSULATION, WRAPPER
19MAY 74009956
19MAY 74008831
20MAY 74008828
21COVER, MAIN WIRE (GAS)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
24MAY 74008340
25MAY 74008858
26WP7101P485-60 Whirlpool Anchor Tip
26WP3801F656-51 Whirlpool Range Anti-Tip Bracket
27BOTTOM, REAR COVER
