AGR5725RDB 01 – CABINET

AGR5725RDB 01 – CABINET

Written by

in

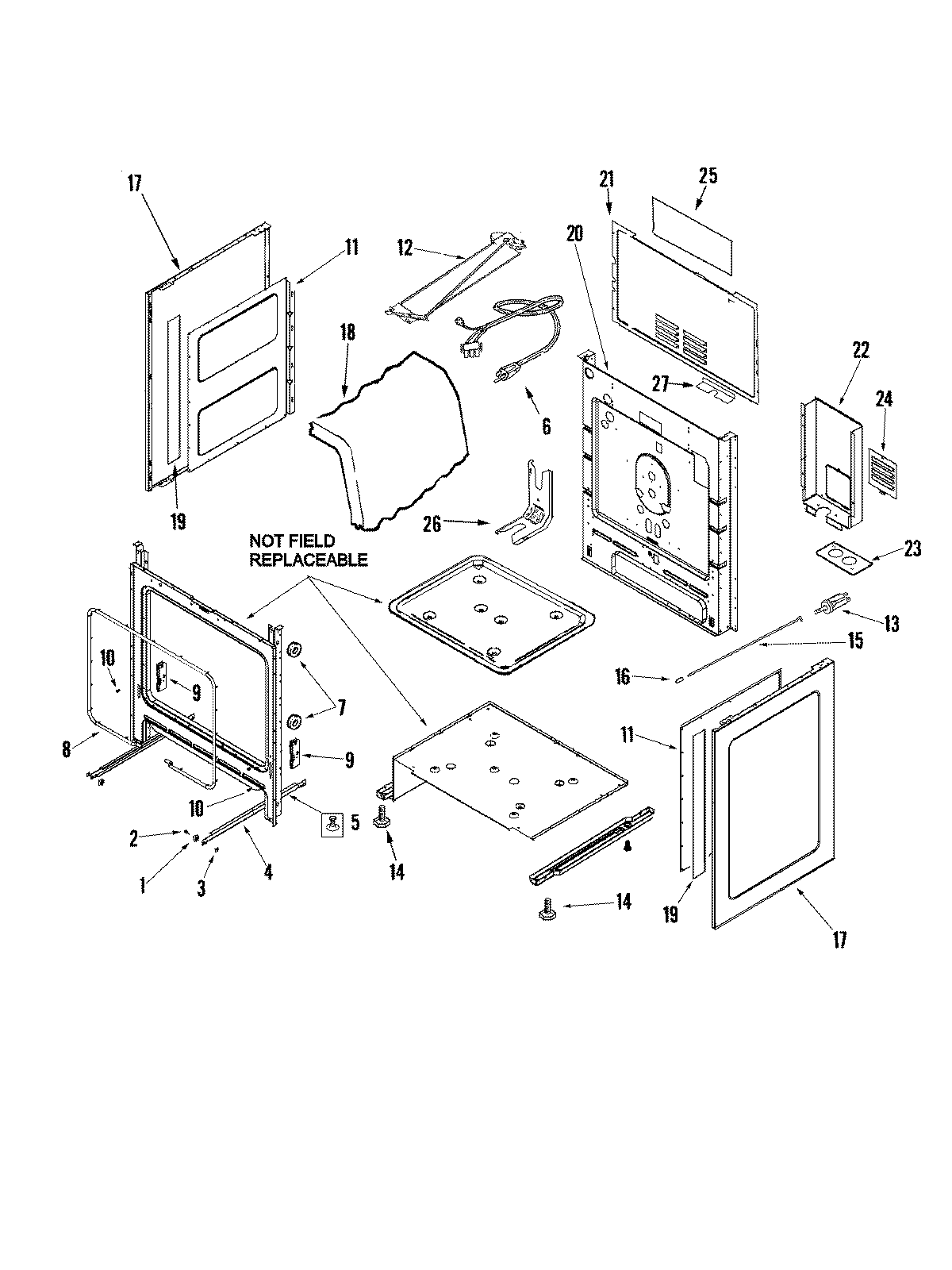

AGR5725RDB 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
3WP488130 Whirlpool Air Conditioner Nut
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008876
7SCREW W/SHOULDER (No.8)
7SPACER, SIDE PANEL
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10SCREW (10-24X5/16-NI)
11MAY 74008701
11SCREW
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12MAY 74008702
1374008703 Whirlpool Door Switch
13MAY 74008704
14W11665456 Whirlpool Range Level Foot
1474008835 Whirlpool Clip Retainer
15SLEEVE, ROD TUBE
15MAY 74008706
1674008707 Whirlpool Oven Bumper
17MAY 74008710
18MAY 74008698
18INSULATION, WRAPPER
19MAY 74009956
20MAY 74009676
21MAY 71001394
21COVER, MAIN WIRE (GAS)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
24MAY 74008340
25MAY 74008858
26WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26WP7101P485-60 Whirlpool Anchor Tip
27BOTTOM, REAR COVER
