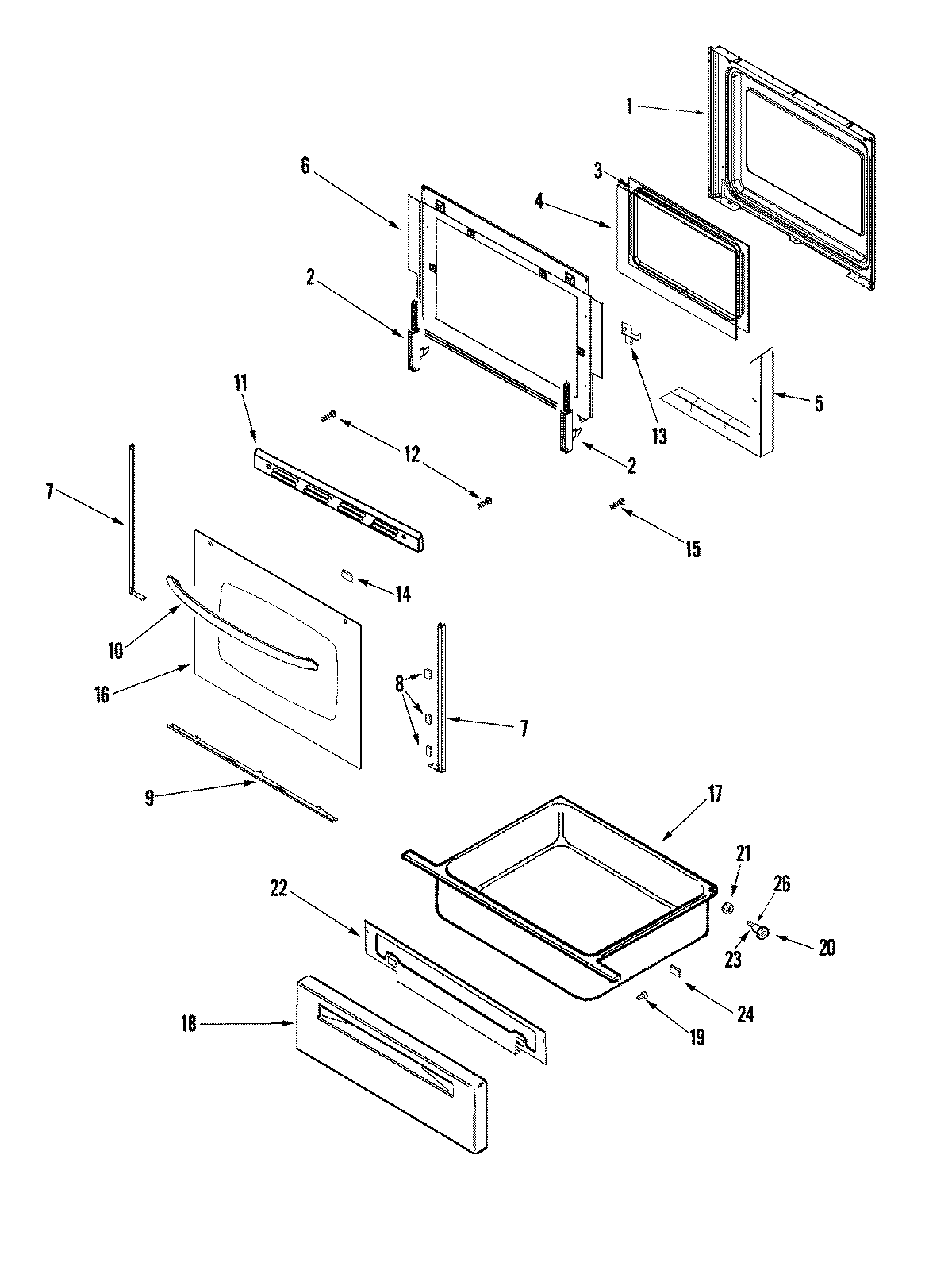

AGR5725RDB 04 – DOOR/DRAWER

AGR5725RDB 04 – DOOR/DRAWER

Written by

in

AGR5725RDB 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5MAY 74010564
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74010560
8WP74009025 Whirlpool Double Sided Tape
9TRIM, BOTTOM (BLK)
10HANDLE, DOOR (BLK)
11Trim, Door Top (Black)
11WP98008545 Whirlpool Screw
12WP74006515 Whirlpool Washer Screw
13BRACKET, DOOR HANDLE (LT)
13BRACKET, DOOR HANDLE (RT)
14WP74004224 Whirlpool Tape
15SCREW (10-24X5/16-NI)
16MAY 74008683
17WP3405F037-80 Whirlpool Utility Drawer
18PANEL, DRAWER (BLK)
19SCREW
20WP74004078 Whirlpool Door Roller
21WP488130 Whirlpool Air Conditioner Nut
22SHIELD, DRAWER HEAT
23SHAFT, STORAGE DRAWER ROLLER
24WP74005546 Whirlpool RU Spacer
