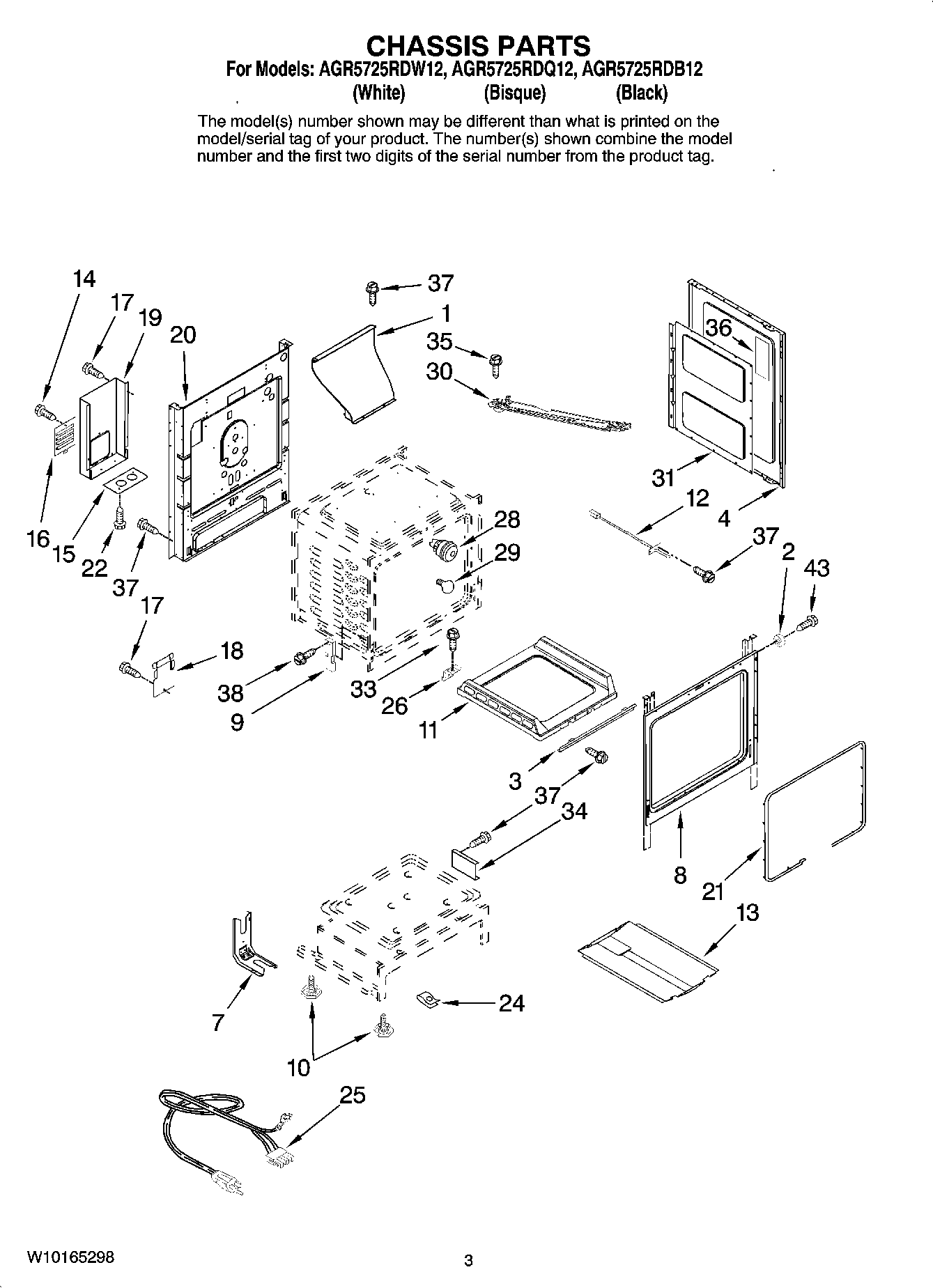

AGR5725RDB12 03 – CHASSIS PARTS
Written by
in
AGR5725RDB12 03 – CHASSIS PARTS
Products
Position
Product
NI
MAY 7002P492-60
NI
INSULATION, WRAPPER
1
MAY 74008817
2
SPACER, SIDE PANEL
3
SUPPORT, OVEN BOTTOM (FRONT)
4
PANEL, SIDE (BSQ)
4
MAY 74008709
4
MAY 74008710
7
WP3801F656-51 Whirlpool Range Anti-Tip Bracket
9
WP74010551 Whirlpool Receiver
10
W11665456 Whirlpool Range Level Foot
11
WPW10211368 Whirlpool Oven Bottom
12
12001655 Whirlpool Oven Sensor
13
BAFFLE, BAKE BURNER
14
SCREW (8BX3/8-NI)
15
PLATE, CONDUIT REINFORCEMENT
16
MAY 74008340
17
MAY 71001394
18
COVER, BROIL ACCESS FITTING
19
MAY 74008760
20
MAY 4002F347-51
21
W11562931 Whirlpool Door Gasket
22
MAY 7101P336-60
24
74008835 Whirlpool Clip Retainer
25
MAY 74008876
26
SUPPORT, OVEN BOTTOM (REAR)
28
WP74011278 Whirlpool Light
29
RANGE ONLY 40W 120V APPL BULB
30
MAY 74008702
31
MAY 74008701
33
WP74003976 Whirlpool Screw
34
BRACKET, OVEN SUPPORT
35
74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
37
SCREW
38
SCREW (10-24X5/16-NI)
43
SCREW W/SHOULDER (No.8)
←
