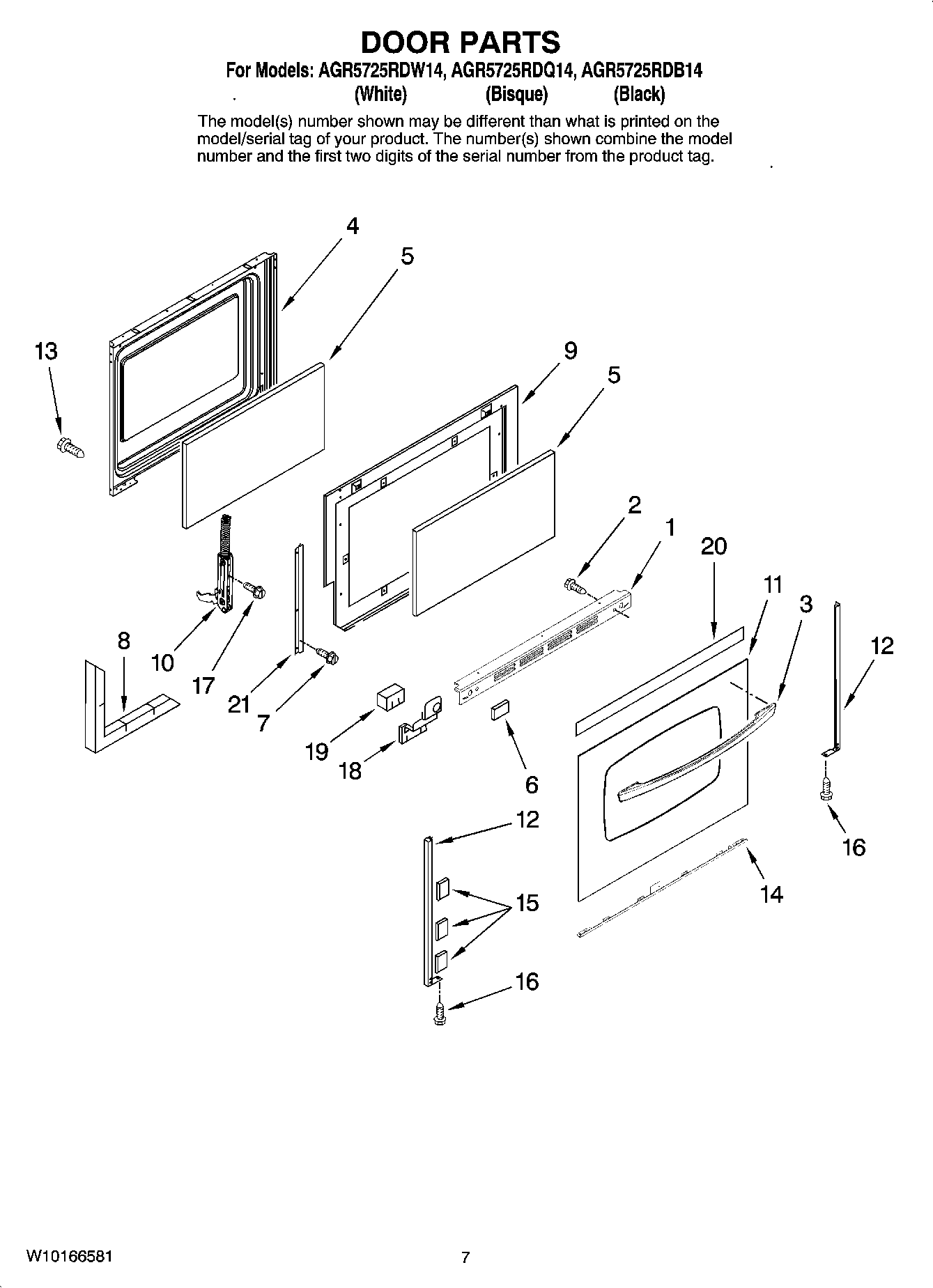

AGR5725RDB14 05 – DOOR PARTS

Products

Position	Product
1	MAY 74008890
1	MAY 74008748
1	MAY 74008747
2	WP74006515 Whirlpool Washer Screw
3	HANDLE, DOOR (BLK)
3	HANDLE, DOOR (WHT)
3	MAY 74008323
4	MAY 74008926
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74004224 Whirlpool Tape
8	INSULATION, OVEN DOOR
9	MAY 74008744
10	74010546 Whirlpool Range Oven Door Hinge
11	Glass, Door (White)
11	Glass, Door (Black (Order Item 15 When Replacing Door Glass))
11	Glass, Door (Bisque)
12	MAY 74010561
12	MAY 74010560
12	TRIM, SIDE (BSQ)
13	WPY706189 Whirlpool Stove Screw
14	TRIM, BOTTOM (BSQ)
14	TRIM, BOTTOM (BLK)
14	WP3608F092-71 Whirlpool Bottom Trim
15	WP74009014 Whirlpool Double Tape
15	WP74009025 Whirlpool Double Sided Tape
16	WP98008544 Whirlpool Screw Assembly
16	WP98008545 Whirlpool Screw
16	WP74009541 Whirlpool Screw Assembly
17	SCREW
18	BRACKET, DOOR HANDLE (RT)
18	BRACKET, DOOR HANDLE (LT)
19	INSULATION, CORNER (DOOR)
20	TAPE, FOIL (3“ WIDE)
21	3801F886-51 Whirlpool Mounting Bracket
