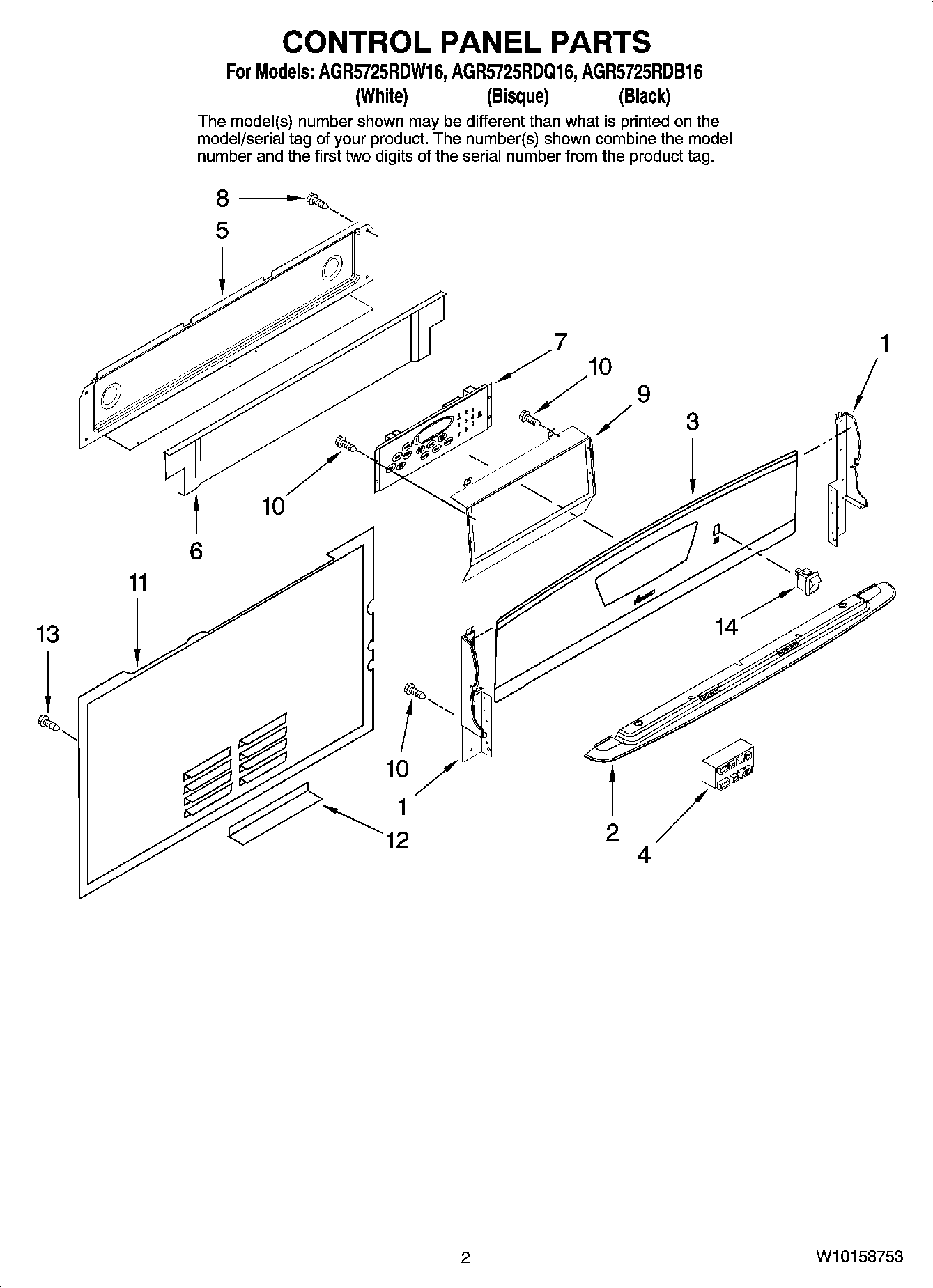

AGR5725RDB16 02 – CONTROL PANEL PARTS
Written by
in
AGR5725RDB16 02 – CONTROL PANEL PARTS
Products
Position
Product
1
End Cap (Left White)
1
End Cap (Right Black)
1
End Cap (Left Black)
1
END CAP (LT-BSQ)
1
END CAP (RT-BSQ)
1
End Cap (Right White)
2
SHIELD, HEAT VISOR (BSQ)
2
SHIELD, HEAT VISOR (WHT)
2
SHIELD, HEAT VISOR (BLK)
3
PANEL, BACKGUARD (WHT)
3
MAY 74008824
3
MAY 74008823
4
74008821 Whirlpool Spark Module
5
COVER, REAR WIRE
6
MAY 74009444
7
WP74009217 Whirlpool Control Board
7
MAY 74008121
8
SCREW
9
MAY 74008716
10
WP74003976 Whirlpool Screw
11
COVER, MAIN WIRE (GAS)
12
BOTTOM, REAR COVER
13
MAY 71001394
14
74008765 Whirlpool Range Oven Rocker Switch Bisque
14
74008717 Whirlpool White Rocker Switch
14
SWITCH, ROCKER (BLK)
←
