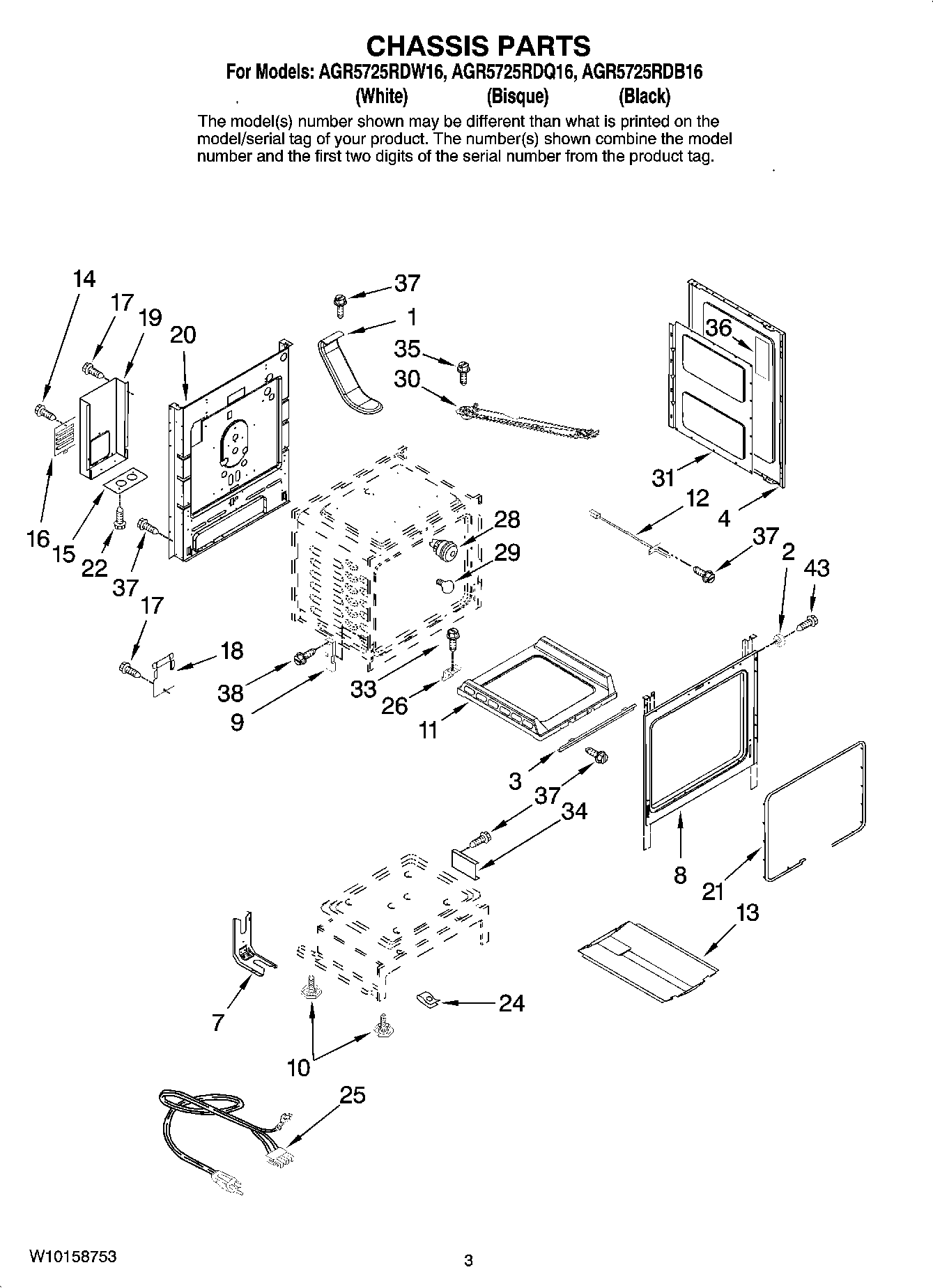

AGR5725RDB16 03 – CHASSIS PARTSadmin2025-04-26T12:26:28+00:00AGR5725RDB16 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P492-60 |
| NI | INSULATION, WRAPPER |
| 1 | MAY 74008817 |
| 2 | SPACER, SIDE PANEL |
| 3 | SUPPORT, OVEN BOTTOM (FRONT) |
| 4 | MAY 74008710 |
| 4 | MAY 74008709 |
| 4 | PANEL, SIDE (BSQ) |
| 7 | WP3801F656-51 Whirlpool Range Anti-Tip Bracket |
| 8 | MAY W10157418 |
| 9 | WP74010551 Whirlpool Receiver |
| 10 | W11665456 Whirlpool Range Level Foot |
| 11 | WPW10211368 Whirlpool Oven Bottom |
| 12 | 12001655 Whirlpool Oven Sensor |
| 13 | BAFFLE, BAKE BURNER |
| 14 | SCREW (8BX3/8-NI) |
| 15 | PLATE, CONDUIT REINFORCEMENT |
| 16 | MAY 74008340 |
| 17 | MAY 71001394 |
| 18 | COVER, BROIL ACCESS FITTING |
| 19 | Cover, Wire (LWR) |
| 20 | MAY 4002F347-51 |
| 21 | W11562931 Whirlpool Door Gasket |
| 22 | MAY 7101P336-60 |
| 24 | 74008835 Whirlpool Clip Retainer |
| 25 | MAY 74008876 |
| 26 | SUPPORT, OVEN BOTTOM (REAR) |
| 28 | WP74011278 Whirlpool Light |
| 29 | RANGE ONLY 40W 120V APPL BULB |
| 30 | MAY 74011896 |
| 31 | MAY 3804F316-51 |
| 33 | WP74003976 Whirlpool Screw |
| 34 | BRACKET, OVEN SUPPORT |
| 35 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 36 | MAY 7002P494-60 |
| 37 | SCREW |
| 38 | SCREW (10-24X5/16-NI) |
| 43 | SCREW W/SHOULDER (No.8) |
