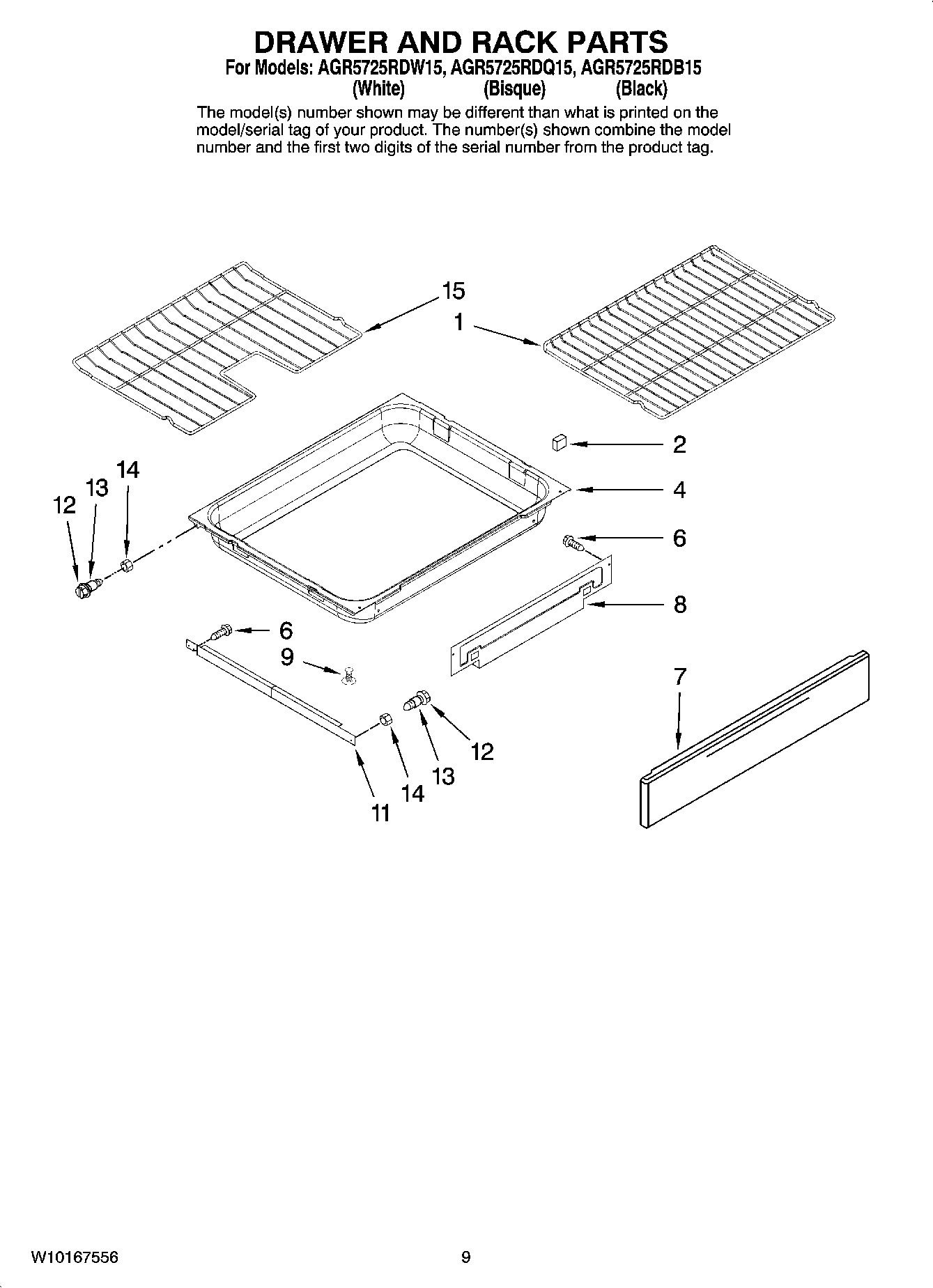

AGR5725RDQ15 06 – DRAWER AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	8019P026-60 Whirlpool Clip
NI	SCREW, GROUND (GRN)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	WIRE, 25â€™ ROLL (RED 14 GA.)
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
NI	REFINISHING MATERIAL (GREASE)
NI	Wire, Blue 14 Ga. 150 c
NI	Wire, Brown 14 Ga. 150 c
NI	Wire, Green 14 Ga. 150 c
NI	Wire, Orange 14 Ga. 150 c
NI	Wire, Yellow 14 Ga. 150 c
NI	Wire, Black 12 Ga. 150 c
NI	Wire, Brown 14 Ga. 200 c
NI	Wire, Red 14 Ga. 200 c
NI	MAY 74011908
NI	CLIP, WIRE LOCK
NI	MAY 4392901
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	INSULATION (1-1/2" X 24" X 120")
NI	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
NI	ACCESSORY PARTS, ALUMINUM FOIL
NI	INSULATION (2-1/2" X 22" X 120")
NI	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
NI	PAINT, BULK (1 qt.) (Biscuit)
NI	MAY 4392899
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
1	WP74008763 Whirlpool Oven Rack
2	WP74005546 Whirlpool RU Spacer
4	WP3405F037-80 Whirlpool Utility Drawer
6	SCREW
7	Panel, Drawer Frnt (Black)
7	Panel, Drawer Frnt (Bisque)
7	Panel, Drawer Frnt (White)
8	SHIELD, DRAWER HEAT
9	MAY 74008688
11	RUNNER, SERVICE DRAWER
12	SHAFT, STORAGE DRAWER ROLLER
13	WP74004078 Whirlpool Door Roller
14	WP488130 Whirlpool Air Conditioner Nut
15	MAY 74009045
