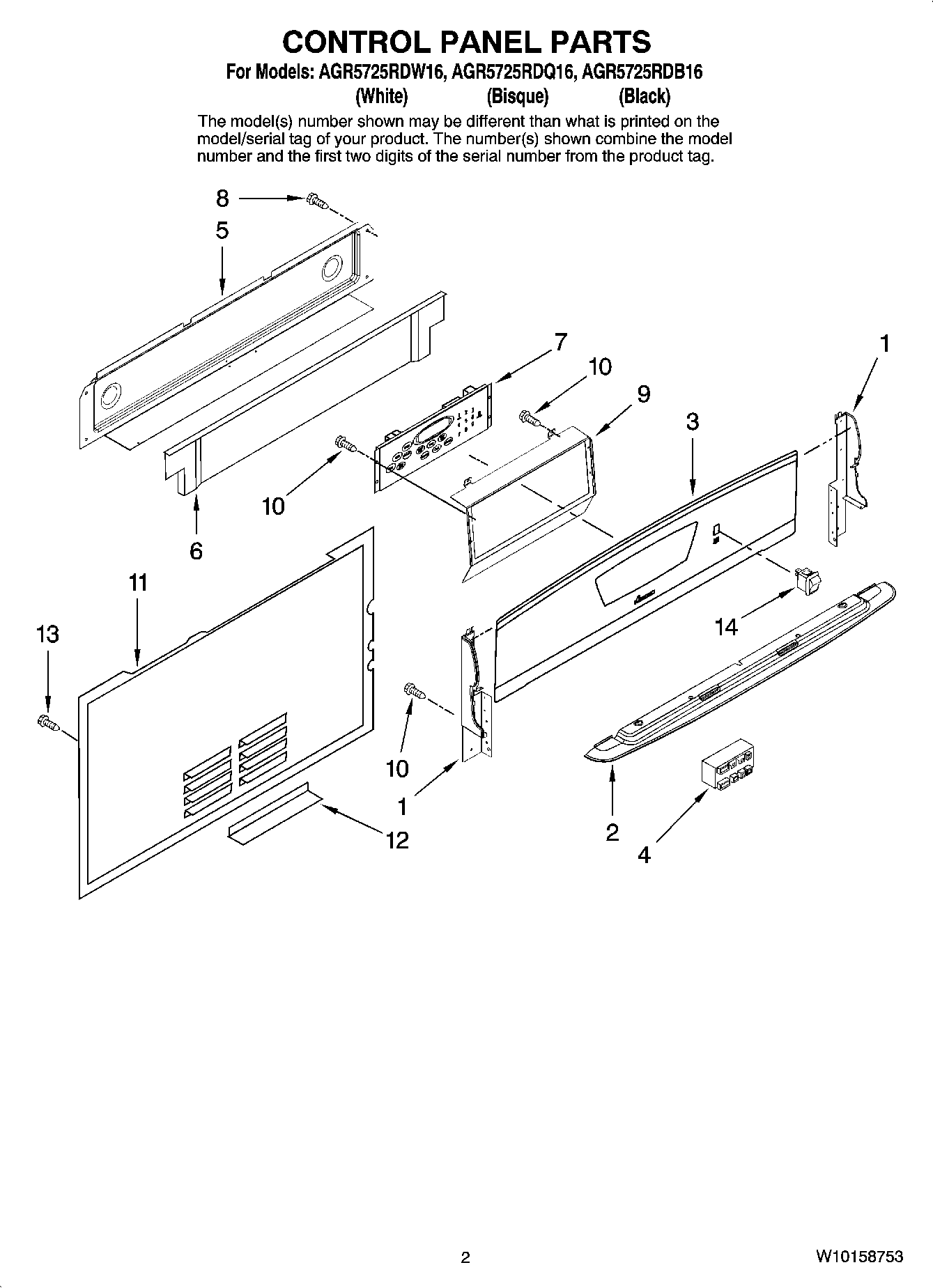

AGR5725RDQ16 02 – CONTROL PANEL PARTS

Products

Position	Product
1	End Cap (Left White)
1	End Cap (Right Black)
1	End Cap (Left Black)
1	END CAP (LT-BSQ)
1	END CAP (RT-BSQ)
1	End Cap (Right White)
2	SHIELD, HEAT VISOR (BSQ)
2	SHIELD, HEAT VISOR (WHT)
2	SHIELD, HEAT VISOR (BLK)
3	PANEL, BACKGUARD (WHT)
3	MAY 74008824
3	MAY 74008823
4	74008821 Whirlpool Spark Module
5	COVER, REAR WIRE
6	MAY 74009444
7	WP74009217 Whirlpool Control Board
7	MAY 74008121
8	SCREW
9	MAY 74008716
10	WP74003976 Whirlpool Screw
11	COVER, MAIN WIRE (GAS)
12	BOTTOM, REAR COVER
13	MAY 71001394
14	74008765 Whirlpool Range Oven Rocker Switch Bisque
14	74008717 Whirlpool White Rocker Switch
14	SWITCH, ROCKER (BLK)
