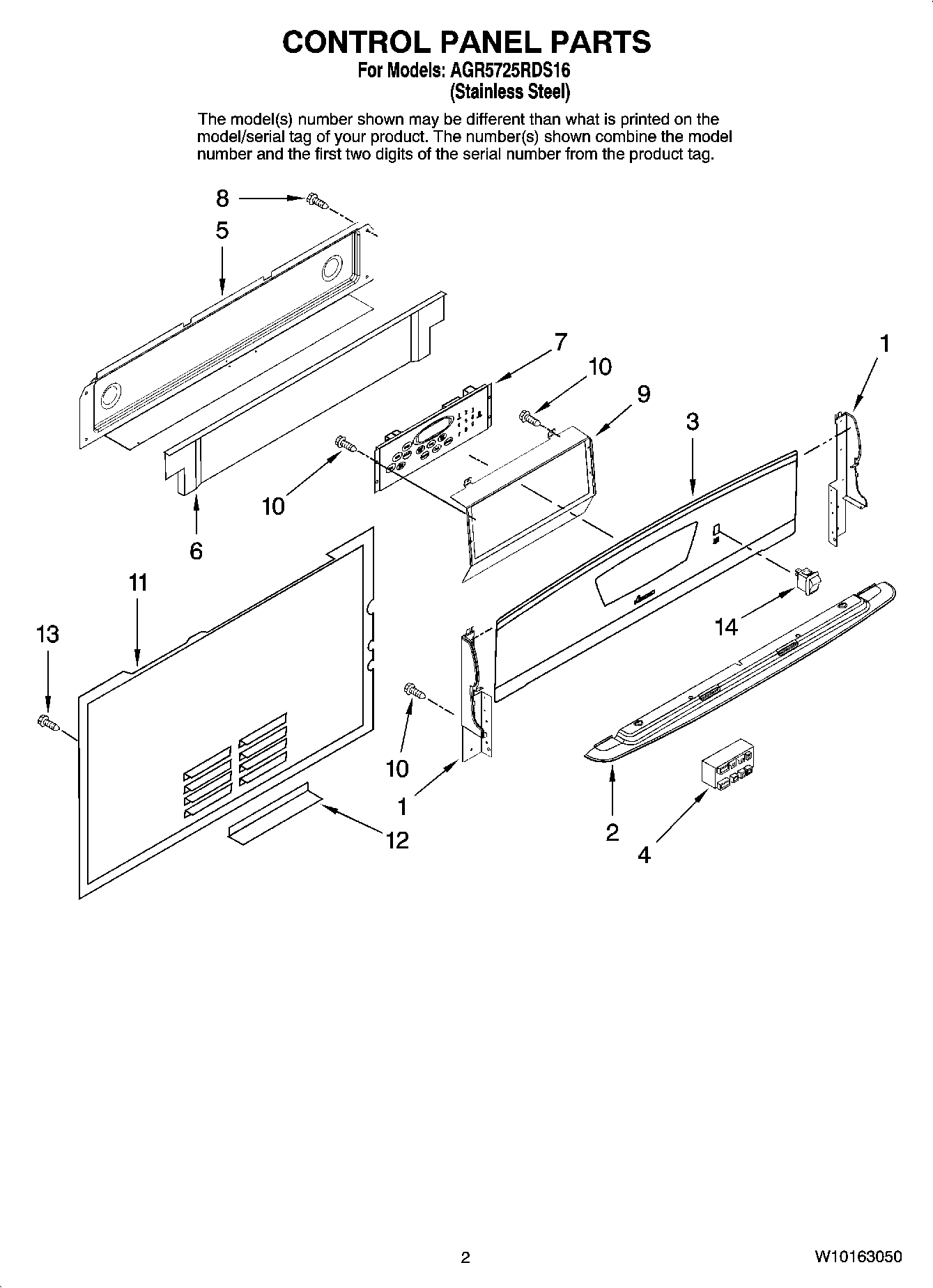

AGR5725RDS16 02 – CONTROL PANEL PARTS

AGR5725RDS16 02 – CONTROL PANEL PARTS

Written by

in

AGR5725RDS16 02 – CONTROL PANEL PARTS

Products

Position	Product
1	End Cap (Right Black)
1	End Cap (Left Black)
2	SHIELD, HEAT VISOR (BLK)
3	PANEL, BACKGUARD (WHT)
4	74008821 Whirlpool Spark Module
5	COVER, REAR WIRE
6	MAY 74009444
7	MAY 74008121
8	SCREW
9	MAY 74008716
10	WP74003976 Whirlpool Screw
11	COVER, MAIN WIRE (GAS)
12	BOTTOM, REAR COVER
13	MAY 71001394
14	SWITCH, ROCKER (BLK)
