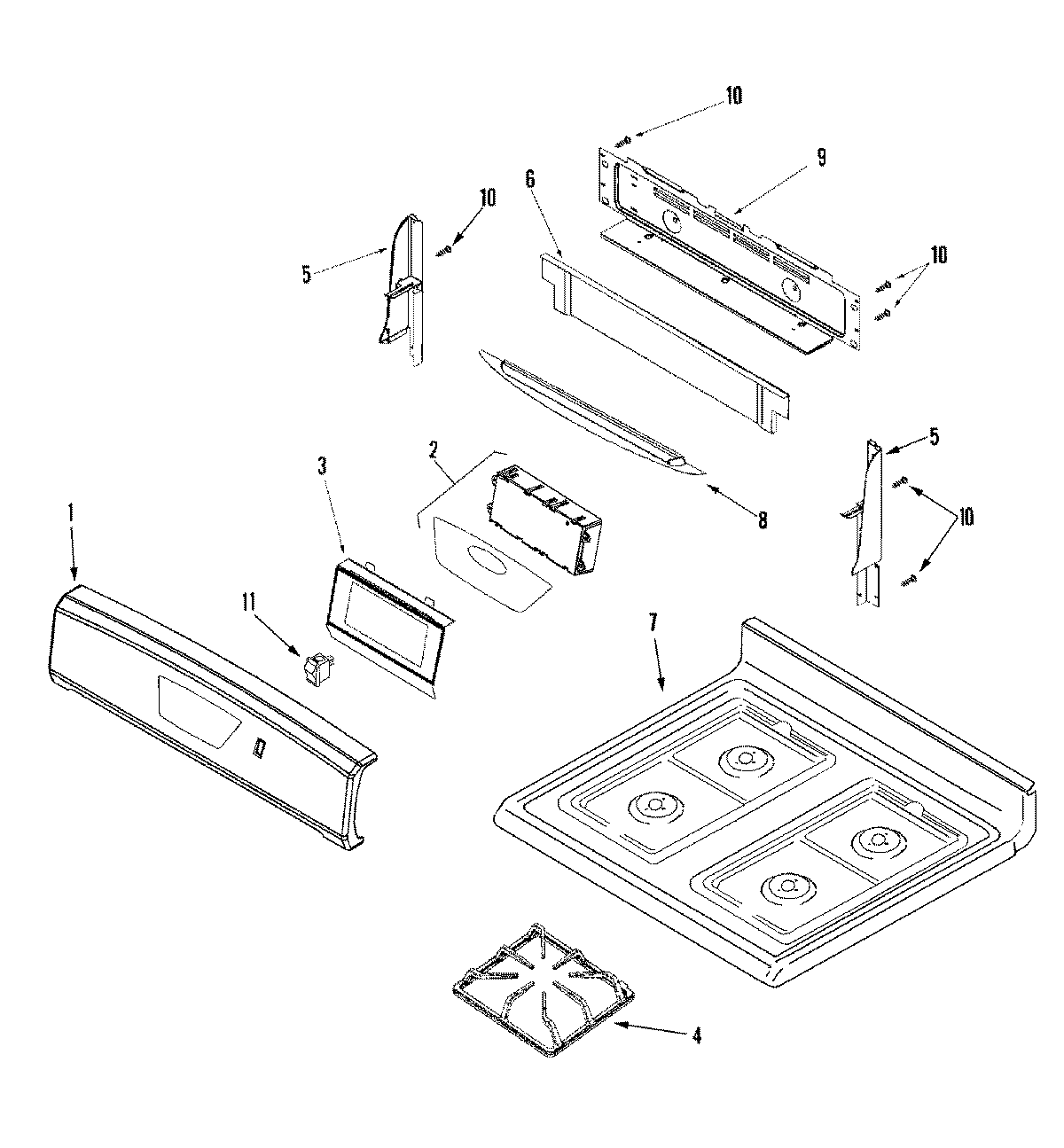

AGR5725RDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008823
2	WP74009217 Whirlpool Control Board
3	MAY 74008716
3	WP74003976 Whirlpool Screw
4	MAY 74008868
5	End Cap (Right White)
5	End Cap (Left White)
6	MAY 74009444
7	MAY 74009042
7	74008761 Whirlpool Spacer Snap-In
8	SHIELD, HEAT VISOR (WHT)
9	MAY 74010983
9	MAY 74008836
9	COVER, BROIL ACCESS FITTING
9	SCREW (8BX3/8-NI)
10	SCREW
11	74008717 Whirlpool White Rocker Switch
