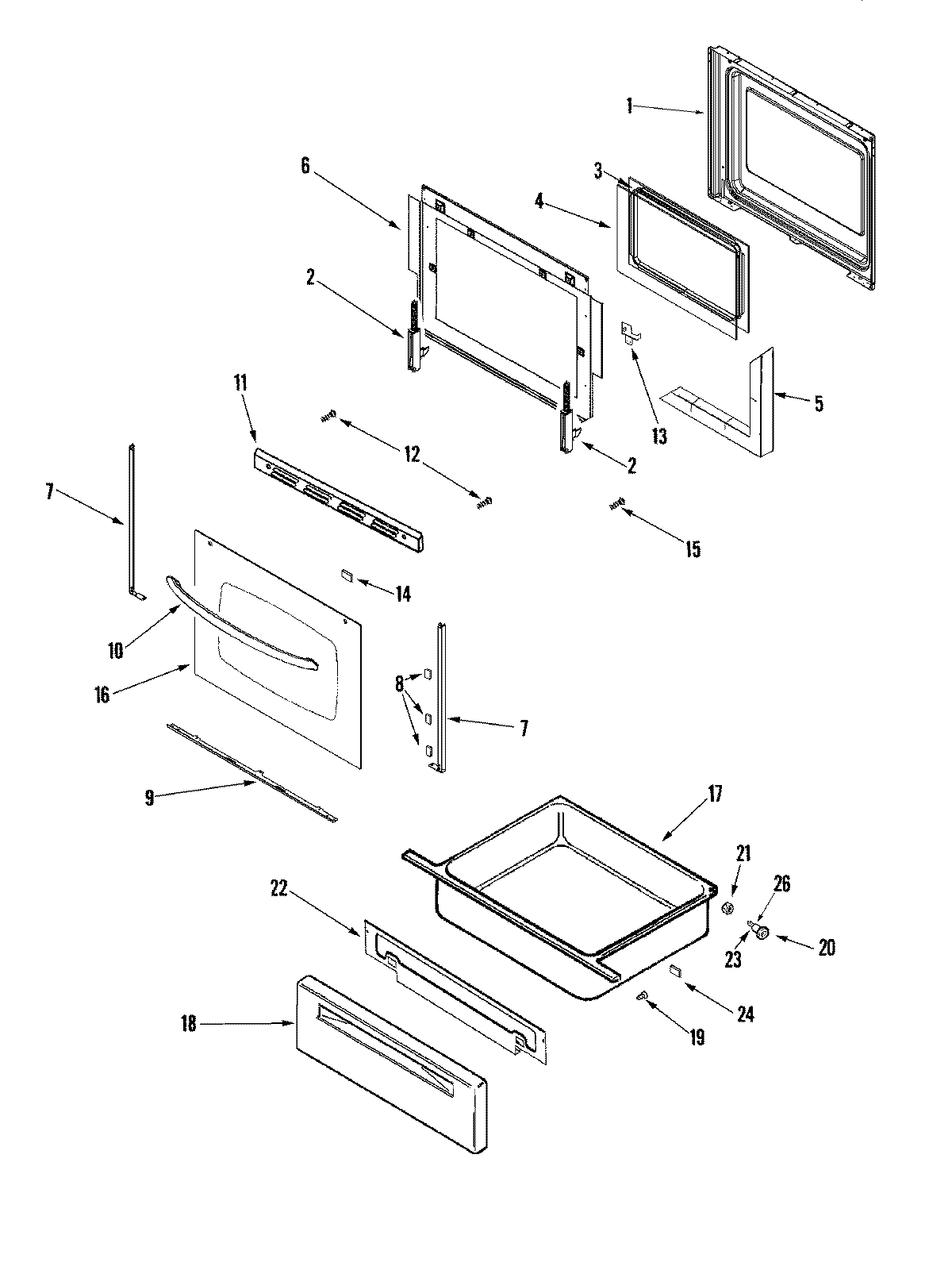

AGR5725RDW 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	MAY 74010564
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	MAY 74010561
8	WP74009014 Whirlpool Double Tape
9	WP3608F092-71 Whirlpool Bottom Trim
10	HANDLE, DOOR (WHT)
11	Trim, Door Top (White)
11	WP98008544 Whirlpool Screw Assembly
12	WP74006515 Whirlpool Washer Screw
13	BRACKET, DOOR HANDLE (LT)
13	BRACKET, DOOR HANDLE (RT)
14	WP74004224 Whirlpool Tape
15	SCREW (10-24X5/16-NI)
16	Glass, Door (White)
17	WP3405F037-80 Whirlpool Utility Drawer
18	PANEL, DRAWER (WHT)
19	SCREW
20	WP74004078 Whirlpool Door Roller
21	WP488130 Whirlpool Air Conditioner Nut
22	SHIELD, DRAWER HEAT
23	SHAFT, STORAGE DRAWER ROLLER
24	WP74005546 Whirlpool RU Spacer
