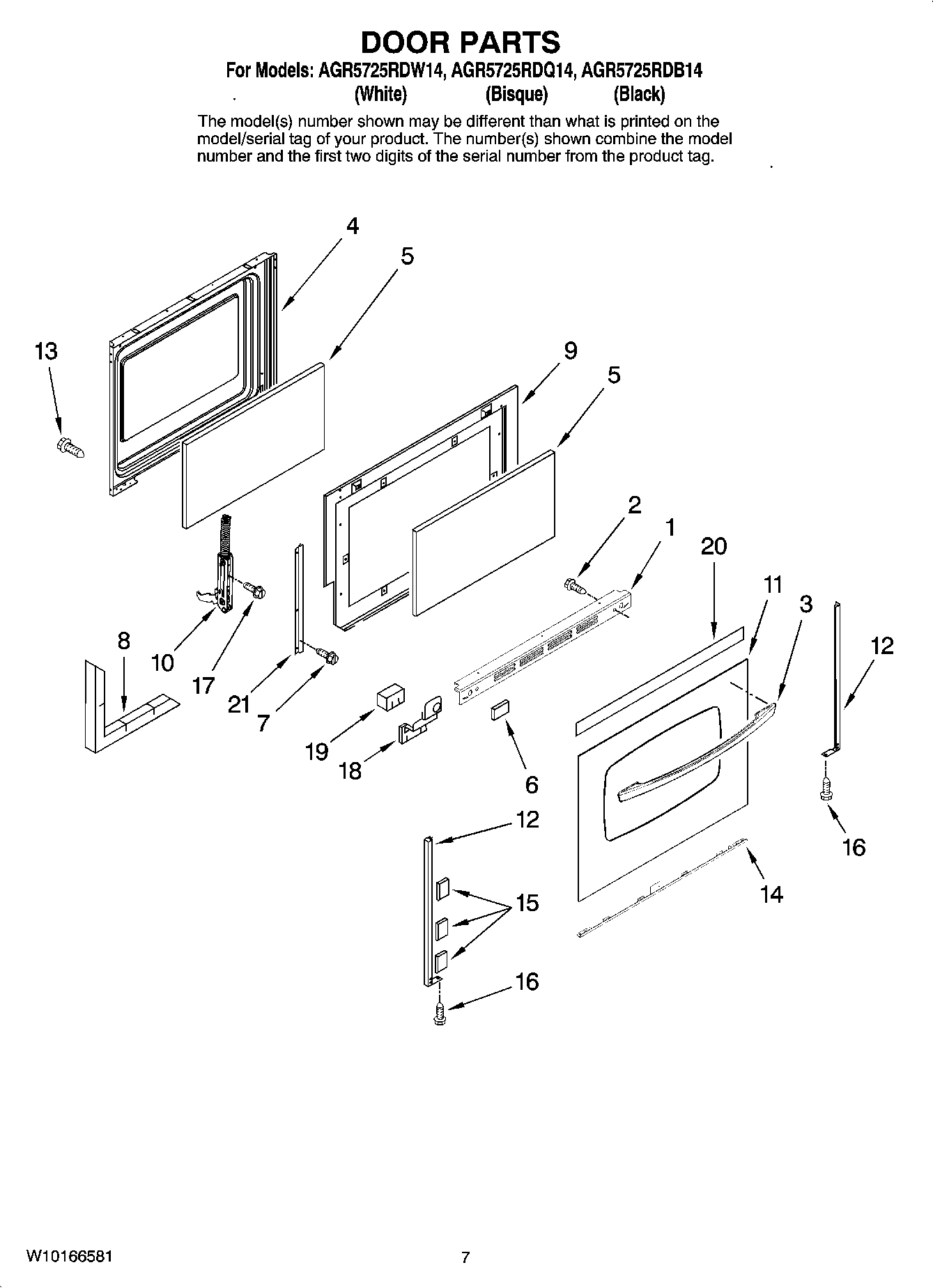

AGR5725RDW14 05 – DOOR PARTSadmin2025-04-26T12:28:48+00:00AGR5725RDW14 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY 74008890 |
| 1 | MAY 74008748 |
| 1 | MAY 74008747 |
| 2 | WP74006515 Whirlpool Washer Screw |
| 3 | HANDLE, DOOR (BLK) |
| 3 | HANDLE, DOOR (WHT) |
| 3 | MAY 74008323 |
| 4 | MAY 74008926 |
| 5 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 6 | WP74004224 Whirlpool Tape |
| 8 | INSULATION, OVEN DOOR |
| 9 | MAY 74008744 |
| 10 | 74010546 Whirlpool Range Oven Door Hinge |
| 11 | Glass, Door (White) |
| 11 | Glass, Door (Black (Order Item 15 When Replacing Door Glass)) |
| 11 | Glass, Door (Bisque) |
| 12 | MAY 74010561 |
| 12 | MAY 74010560 |
| 12 | TRIM, SIDE (BSQ) |
| 13 | WPY706189 Whirlpool Stove Screw |
| 14 | TRIM, BOTTOM (BSQ) |
| 14 | TRIM, BOTTOM (BLK) |
| 14 | WP3608F092-71 Whirlpool Bottom Trim |
| 15 | WP74009014 Whirlpool Double Tape |
| 15 | WP74009025 Whirlpool Double Sided Tape |
| 16 | WP98008544 Whirlpool Screw Assembly |
| 16 | WP98008545 Whirlpool Screw |
| 16 | WP74009541 Whirlpool Screw Assembly |
| 17 | SCREW |
| 18 | BRACKET, DOOR HANDLE (RT) |
| 18 | BRACKET, DOOR HANDLE (LT) |
| 19 | INSULATION, CORNER (DOOR) |
| 20 | TAPE, FOIL (3`` WIDE) |
| 21 | 3801F886-51 Whirlpool Mounting Bracket |
