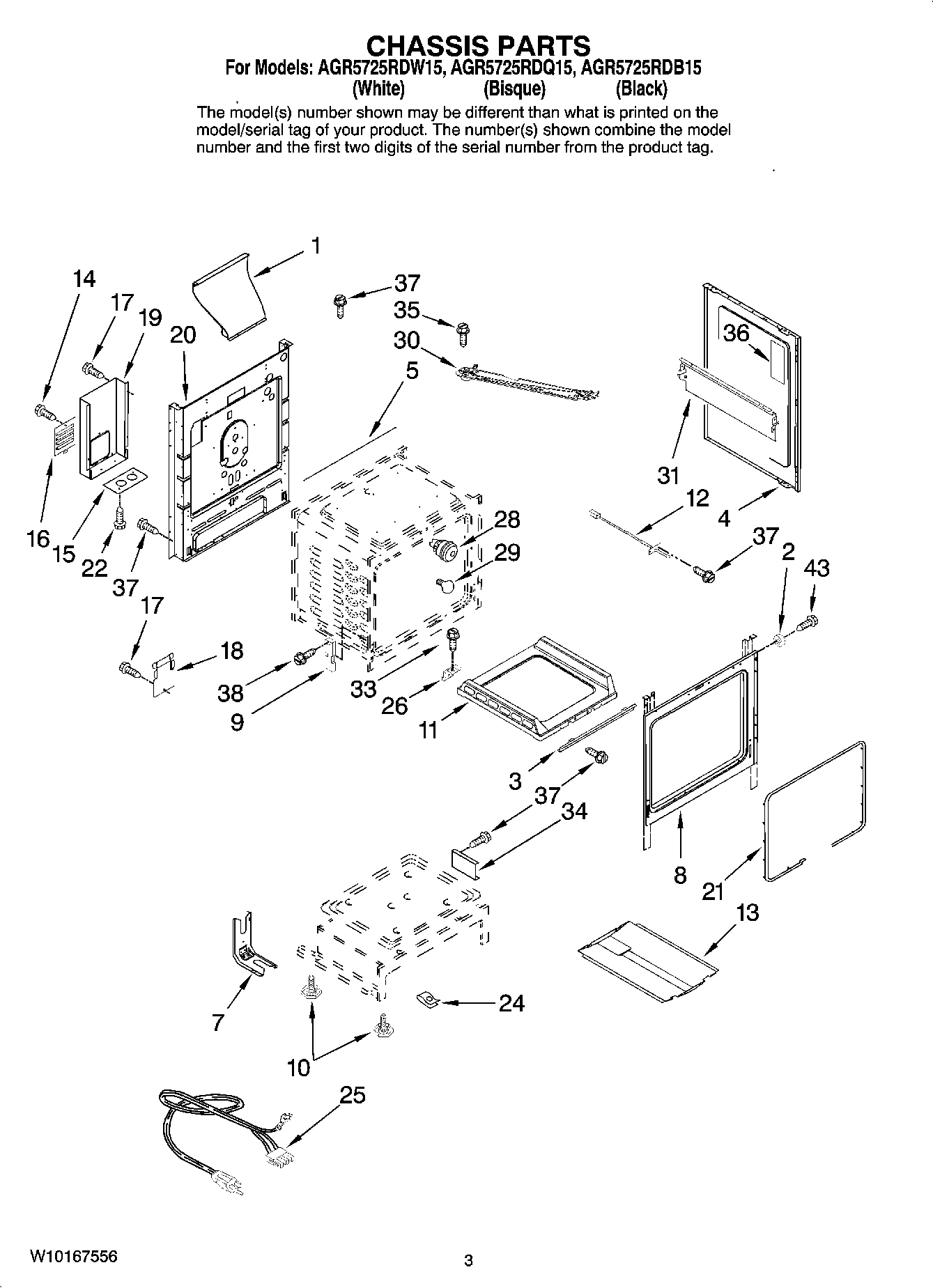

AGR5725RDW15 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P492-60
NI	INSULATION, WRAPPER
1	MAY 74008817
2	SPACER, SIDE PANEL
3	SUPPORT, OVEN BOTTOM (FRONT)
4	MAY 74008710
4	MAY 74008709
4	PANEL, SIDE (BSQ)
5	MAY W10131347
7	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
9	WP74010551 Whirlpool Receiver
10	W11665456 Whirlpool Range Level Foot
11	WPW10211368 Whirlpool Oven Bottom
12	12001655 Whirlpool Oven Sensor
13	BAFFLE, BAKE BURNER
14	SCREW (8BX3/8-NI)
15	PLATE, CONDUIT REINFORCEMENT
16	MAY 74008340
17	MAY 71001394
18	COVER, BROIL ACCESS FITTING
19	MAY 74008760
20	MAY 4002F347-51
21	W11562931 Whirlpool Door Gasket
22	MAY 7101P336-60
24	74008835 Whirlpool Clip Retainer
25	MAY 74008876
26	SUPPORT, OVEN BOTTOM (REAR)
28	WP74011278 Whirlpool Light
29	RANGE ONLY 40W 120V APPL BULB
30	MAY 8002P104-60
31	MAY 3804F316-51
33	WP74003976 Whirlpool Screw
34	BRACKET, OVEN SUPPORT
35	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
36	MAY 7002P494-60
37	SCREW
38	SCREW (10-24X5/16-NI)
43	SCREW W/SHOULDER (No.8)
