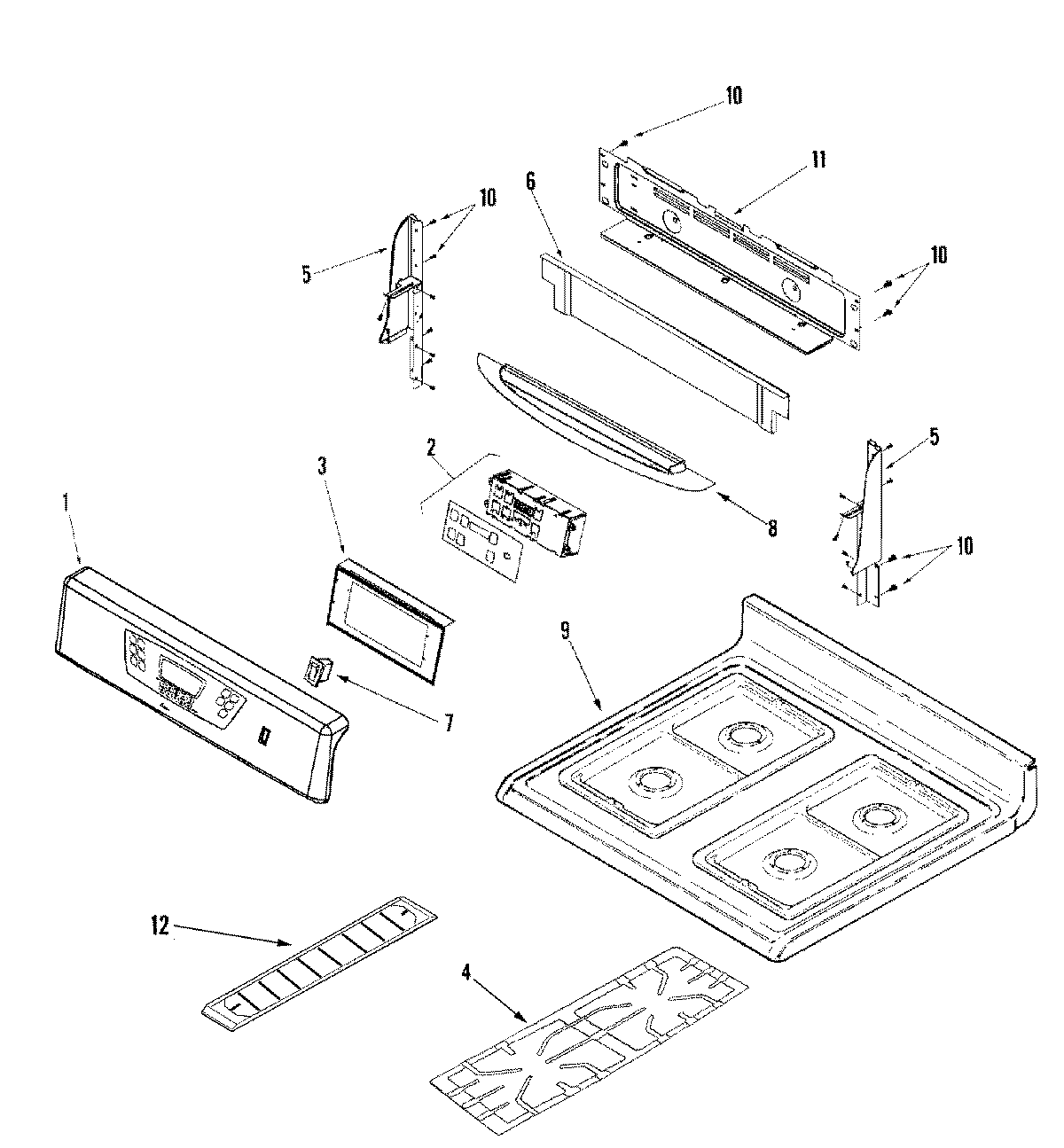

AGR5735QDB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009036
2	MAY 74008667
2	WP74009227 Whirlpool Electronic Control Board
3	MAY 74008716
4	MAY 74009044
4	W10919249 Whirlpool Burner Grate Foot
5	End Cap (Left Black)
5	End Cap (Right Black)
6	MAY 74008725
7	SWITCH, ROCKER (BLK)
8	MAY 74008825
8	SHIELD, HEAT VISOR (BLK)
8	SCREW, SHOULDER
9	MAY 74009041
10	SCREW
11	COVER, BROIL ACCESS FITTING
11	MAY 74008730
11	MAY 74008836
11	SCREW (8BX3/8-NI)
12	MAY 74009037
