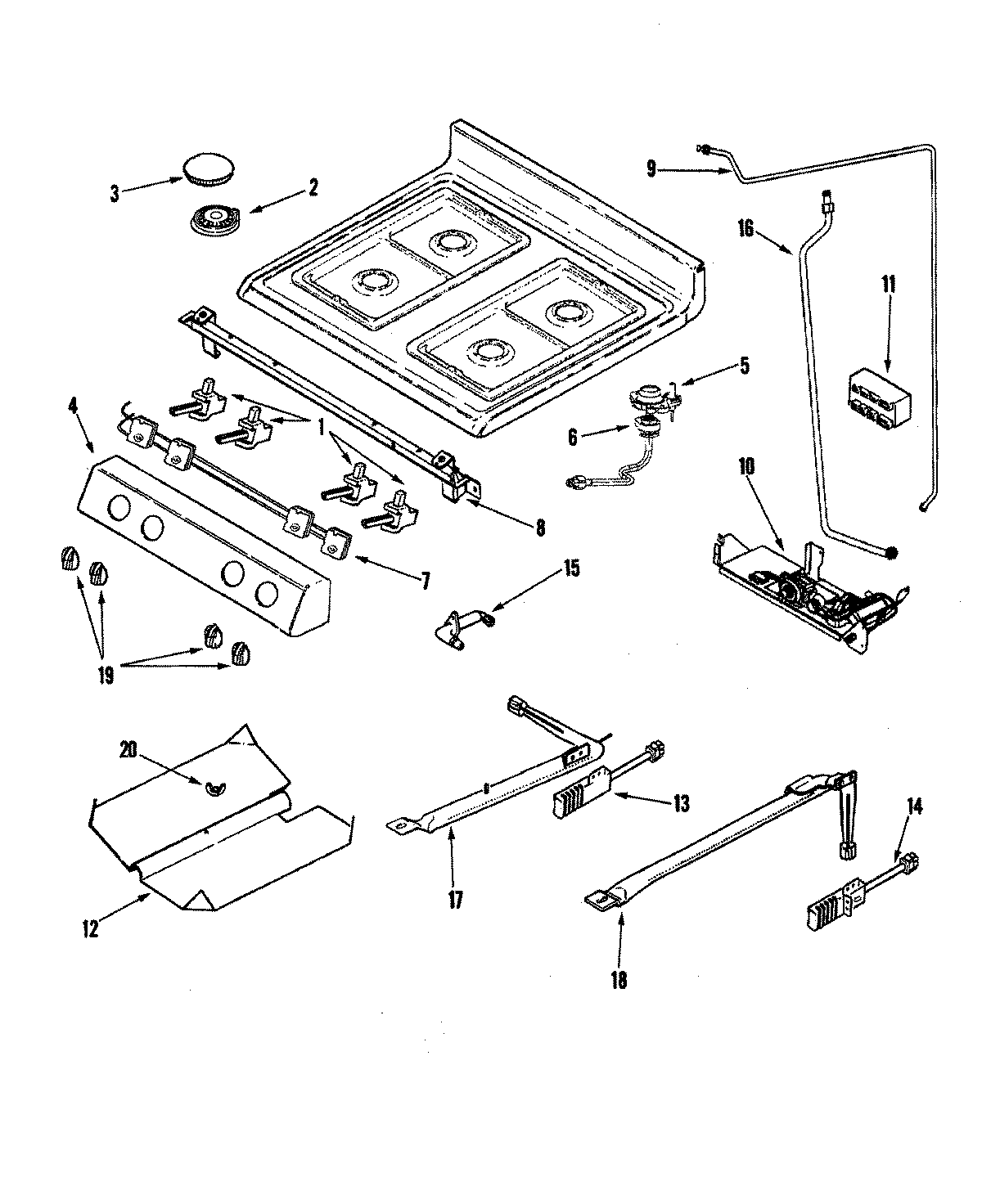

AGR5735QDQ 05 – GAS CONTROLS

Products

Position	Product
1	WP74009857 Whirlpool Screw
1	MAY 12002236
1	MAY 74008810
1	MAY 74008811
1	MAY 74008812
1	MAY 74008814
1	MAY 74009391
1	VALVE, BURNER (5K COPRECI)
1	VALVE, 12K (COPRECI)
1	MAY 12002235
1	VALVE, 16K (COPRECI)
2	WP400021-1 Whirlpool Screw
2	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2	WPW10406243 Whirlpool Burner Head Auxiliary 6K
2	WPW10406878 Whirlpool Burner Base (16K)
3	WP74007419 Whirlpool Burner Cap
3	WP74007751 Whirlpool Burner Cap
3	WP74007417 Whirlpool Burner Cap
4	W11693756 Whirlpool Screw Assembly
4	MAY 74008849
5	WP74009958 Whirlpool Spark Electrode Assembly
6	MAY 74008840
6	MAY 74008838
6	MAY 74008841
6	MAY 74009040
7	MAY 74009394
7	MAY 74008813
7	WP74010630 Whirlpool Switch Harness
8	MAY 74008809
9	MAY 71003231
9	TUBING, SUPPLY
10	MAY 74008808
11	74008821 Whirlpool Spark Module
12	MAY 74008819
13	74007498 Whirlpool Range Flat Igniter
14	SCREW (10-24X5/16-NI)
14	WP7432P136-60 Whirlpool Oven Igniter
15	SCREW
15	74008818 Whirlpool Broil Burner Fitting
16	74008830 Whirlpool Oven Broil Tubing
17	BURNER, BROIL
18	MAY 31945701
19	MAY 74008851
20	NUT, WING
