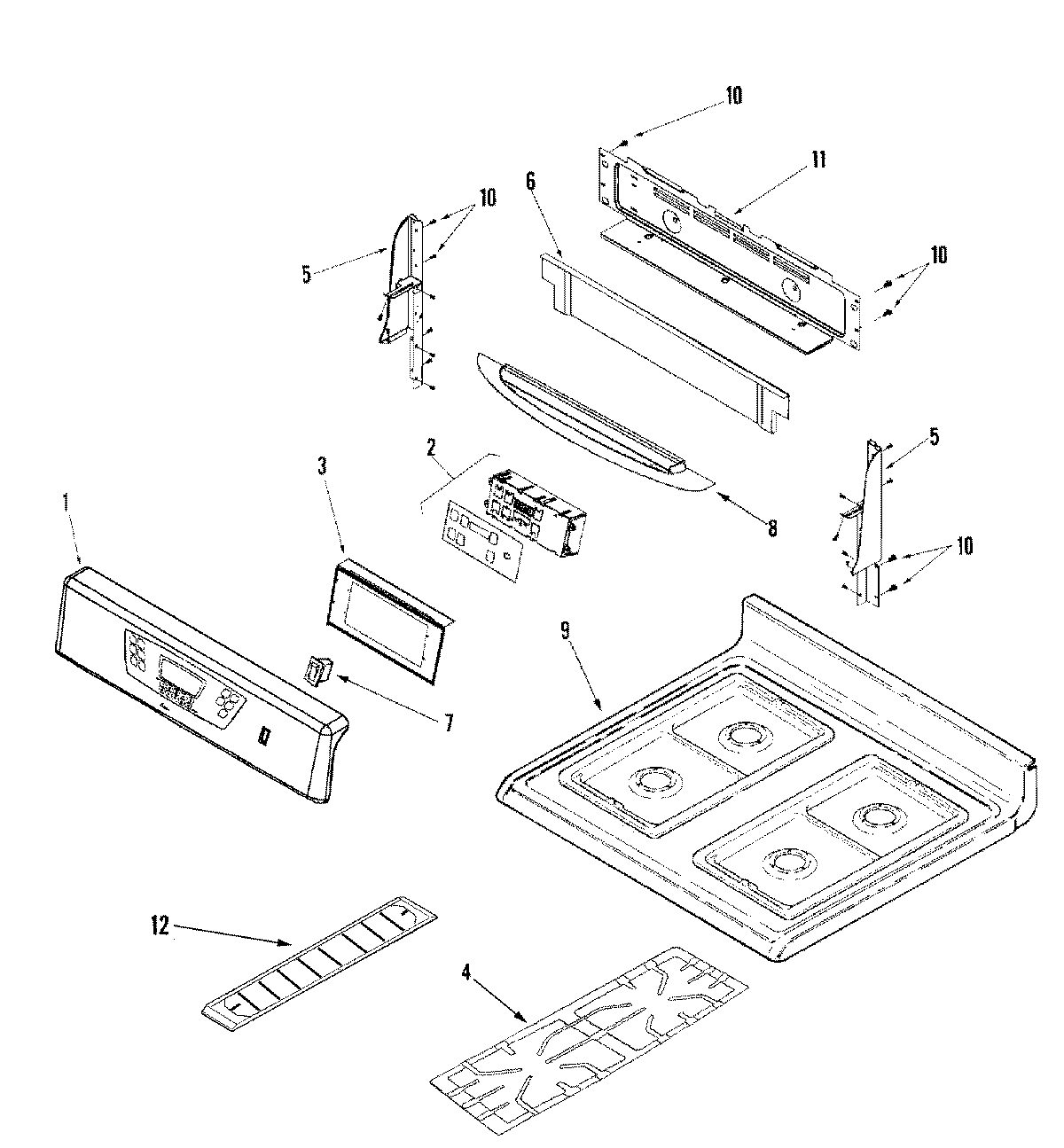

AGR5735QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008823
2	WP74009227 Whirlpool Electronic Control Board
2	MAY 74008665
3	MAY 74008716
4	W10919249 Whirlpool Burner Grate Foot
4	MAY 74007865
5	END CAP (RT-WHT)
5	Latch Assembly
6	MAY 74008726
7	74008717 Whirlpool White Rocker Switch
8	SCREW, SHOULDER
8	MAY 74008826
8	SHIELD, HEAT VISOR (WHT)
9	MAY 74009042
10	SCREW
11	SCREW (8BX3/8-NI)
11	MAY 74008730
11	MAY 74008836
11	COVER, BROIL ACCESS FITTING
12	MAY 74009039
