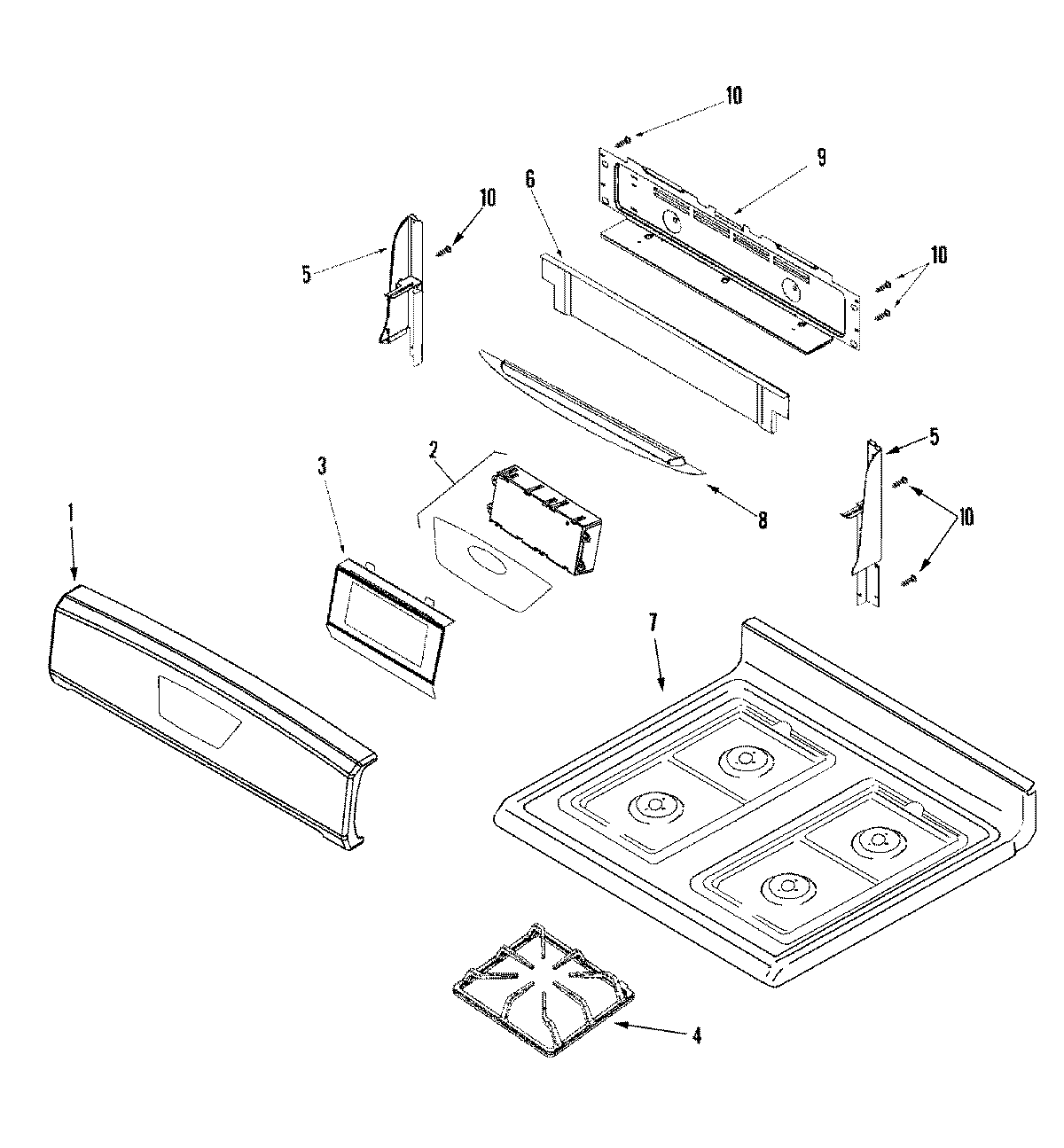

AGR5825RDB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009064
2MAY 74008640
3WP74003976 Whirlpool Screw
3MAY 74008716
4MAY 74008870
5End Cap (Right Black)
5End Cap (Left Black)
6MAY 74009444
7MAY 74009041
774008761 Whirlpool Spacer Snap-In
8SHIELD, HEAT VISOR (BLK)
9MAY 74010983
9MAY 74008836
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
