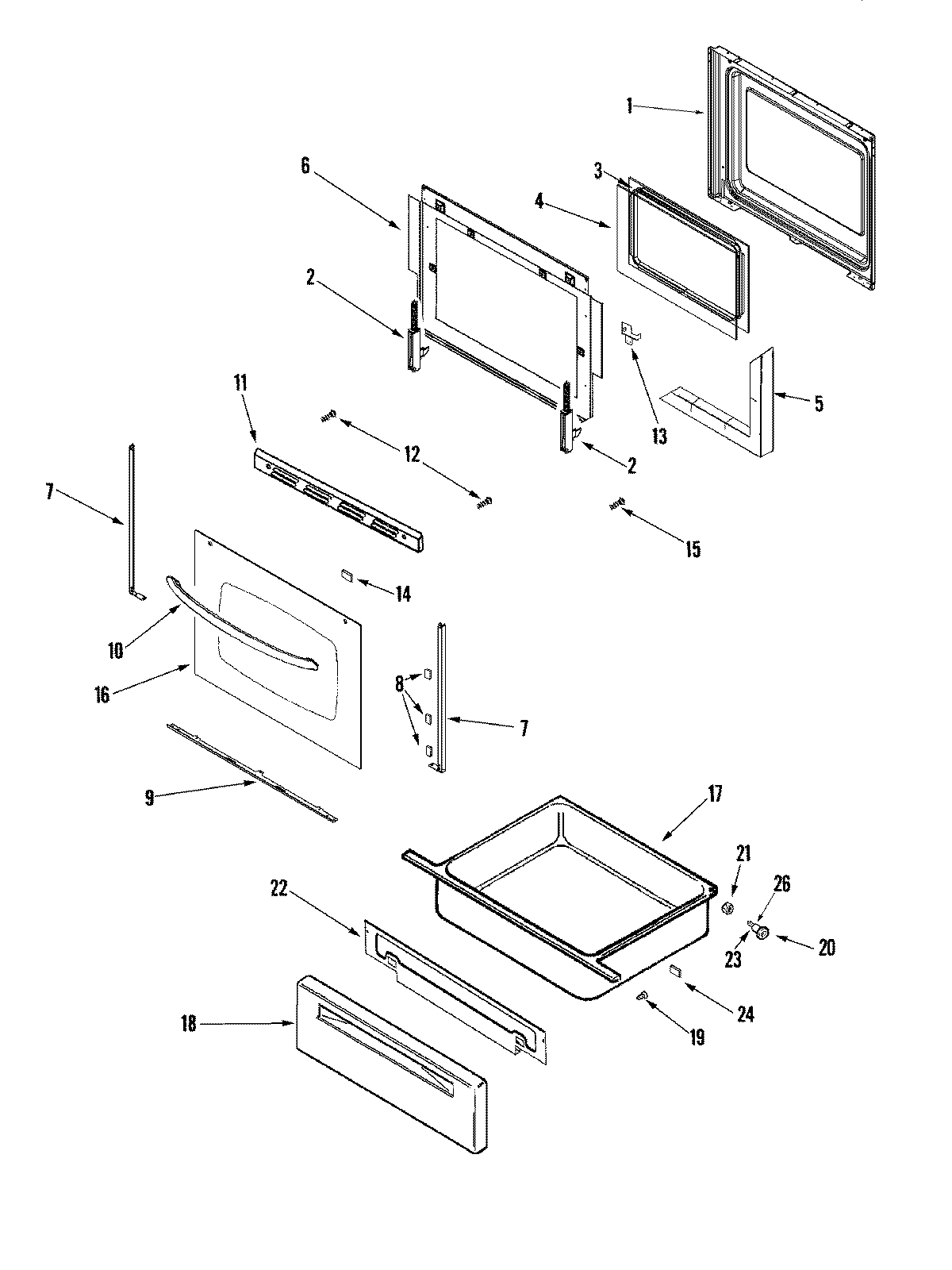

AGR5825RDB 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	MAY 74010564
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	MAY 74010560
8	WP74009025 Whirlpool Double Sided Tape
9	TRIM, BOTTOM (BLK)
10	HANDLE, DOOR (BLK)
11	Trim, Door Top (Black)
11	WP98008545 Whirlpool Screw
12	WP74006515 Whirlpool Washer Screw
13	BRACKET, DOOR HANDLE (LT)
13	BRACKET, DOOR HANDLE (RT)
14	WP74004224 Whirlpool Tape
15	SCREW (10-24X5/16-NI)
16	TAPE, FOIL 29“ X 2“
16	Glass, Door (White)
17	WP3405F037-80 Whirlpool Utility Drawer
18	PANEL, DRAWER (BLK)
19	SCREW
20	WP74004078 Whirlpool Door Roller
21	WP488130 Whirlpool Air Conditioner Nut
22	SHIELD, DRAWER HEAT
23	SHAFT, STORAGE DRAWER ROLLER
24	WP74005546 Whirlpool RU Spacer
