AGR5825RDB 05 – GAS CONTROLS

AGR5825RDB 05 – GAS CONTROLS

Written by

in

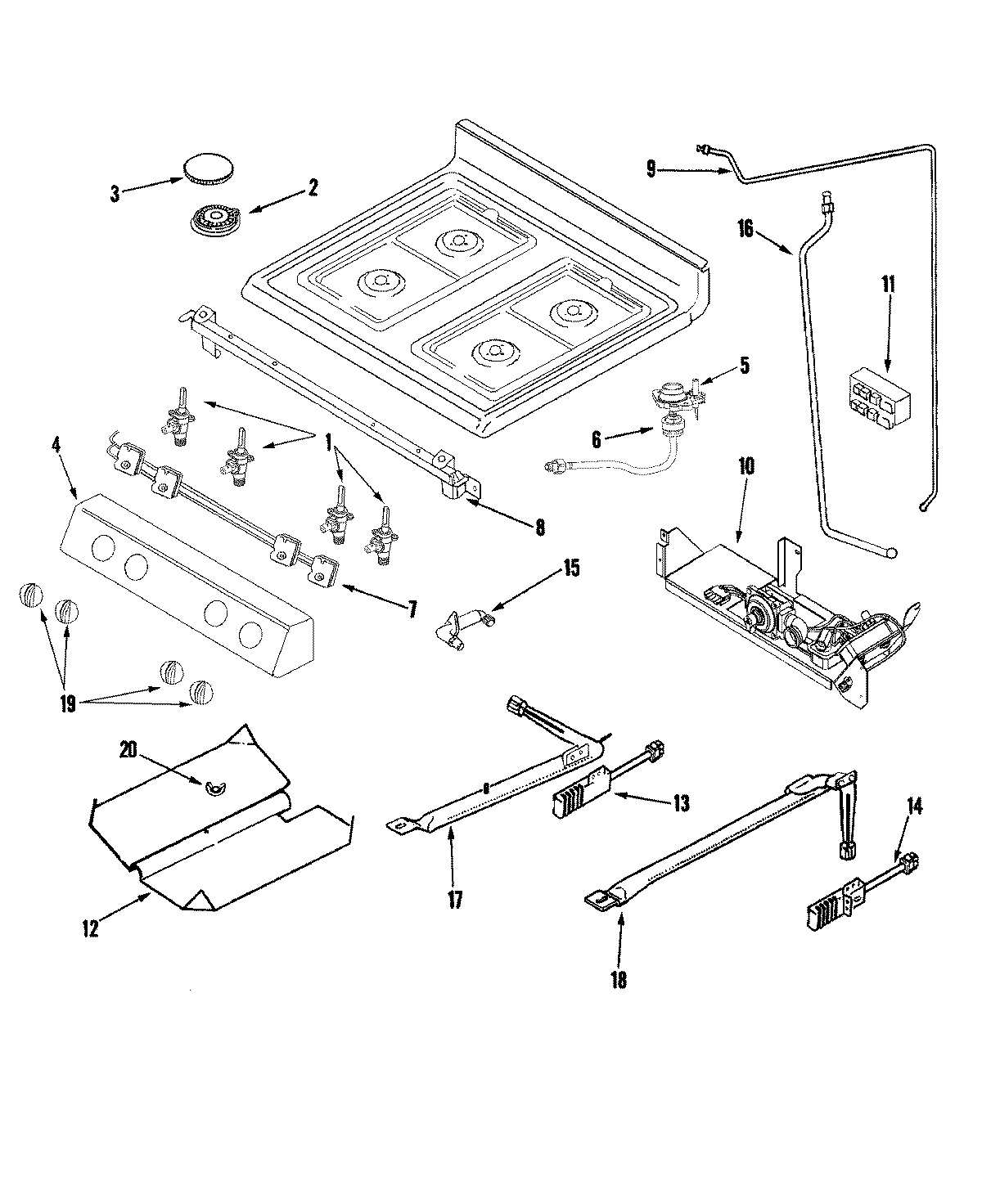

AGR5825RDB 05 – GAS CONTROLS

Products

PositionProduct
1VALVE, BURNER (5K COPRECI)
1WP74009857 Whirlpool Screw
1VALVE, 16K (COPRECI)
1VALVE, 12K (COPRECI)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
2WP400021-1 Whirlpool Screw
2WPW10406878 Whirlpool Burner Base (16K)
2WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
3WPW10154101 Whirlpool Burner Cap
3WP74007925 Whirlpool Burner Cap
3WP3191898 Whirlpool Surface Burner Cap Black
4W11693756 Whirlpool Screw Assembly
4MAY 74011036
5WP74009958 Whirlpool Spark Electrode Assembly
6MAY 74008838
6MAY 74008840
6MAY 74008841
6MAY 74009040
7MAY 74009655
8MAY 74008809
9MAY 71003231
9TUBING, SUPPLY
10VALVE/REGULATOR ASSEMBLY
1174008821 Whirlpool Spark Module
12MAY 74008819
1374007498 Whirlpool Range Flat Igniter
14WP7432P136-60 Whirlpool Oven Igniter
14SCREW (10-24X5/16-NI)
15SCREW
1574008818 Whirlpool Broil Burner Fitting
1674008830 Whirlpool Oven Broil Tubing
17BURNER, BROIL
18MAY 31945701
19MAY 74008850
20NUT, WING
