AGR5825RDS 04 – DOOR/DRAWER (STL)

AGR5825RDS 04 – DOOR/DRAWER (STL)

Written by

in

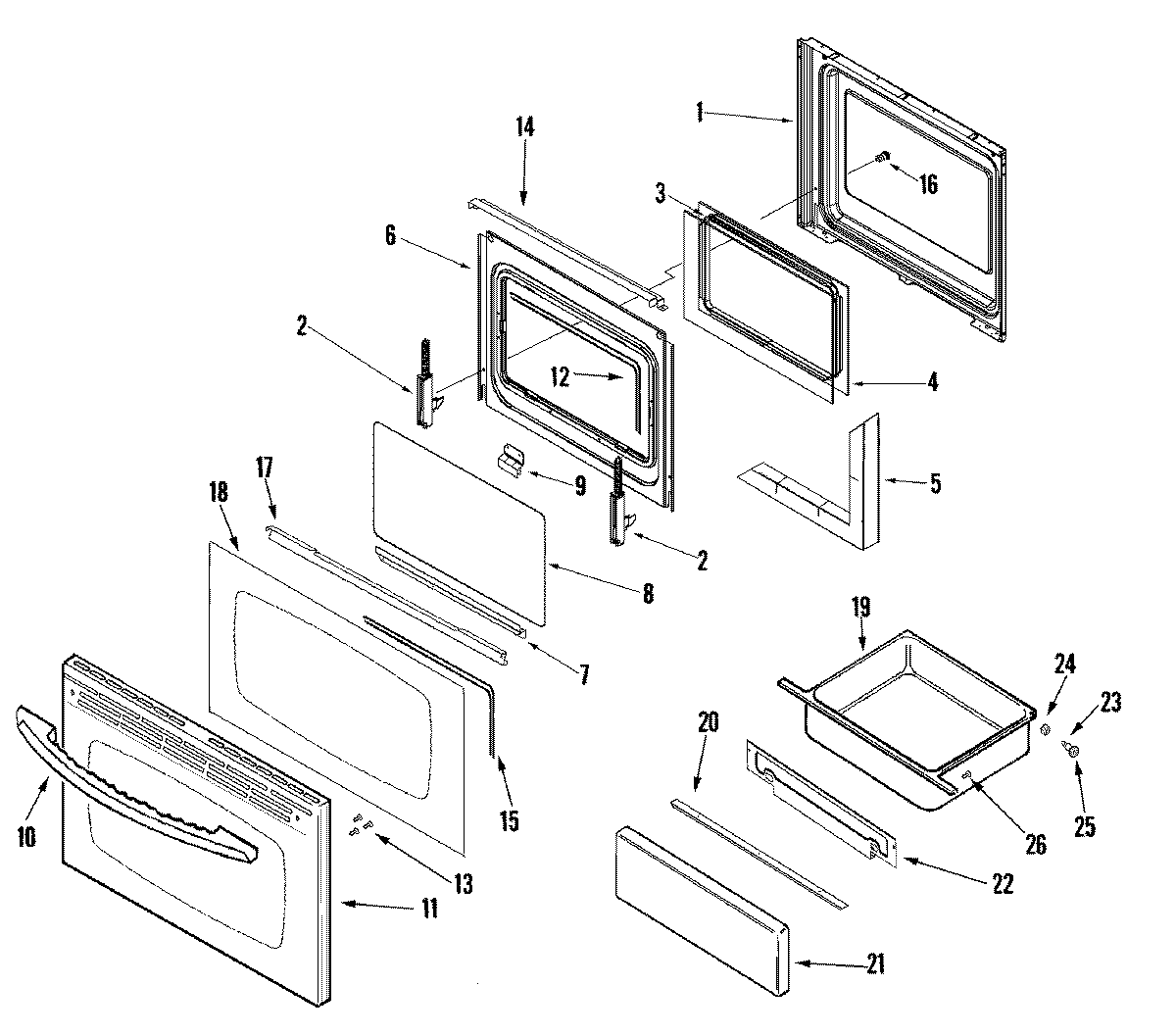

AGR5825RDS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74010924
11MAY 74008913
12Gasket, Window
13WP74006515 Whirlpool Washer Screw
14Baffel, Door
15WP74009029 Whirlpool Door Gasket
16SCREW (10-24X5/16-NI)
17Bracket, Glass
18MAY 74008855
19WP3405F037-80 Whirlpool Utility Drawer
20HANDLE, DOOR (BLK)
21MAY 74009518
22SHIELD, DRAWER HEAT
22SCREW
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
27WP74005546 Whirlpool RU Spacer
28MAY 74010563
