AGR5825RDW 02 – CAVITY

AGR5825RDW 02 – CAVITY

Written by

in

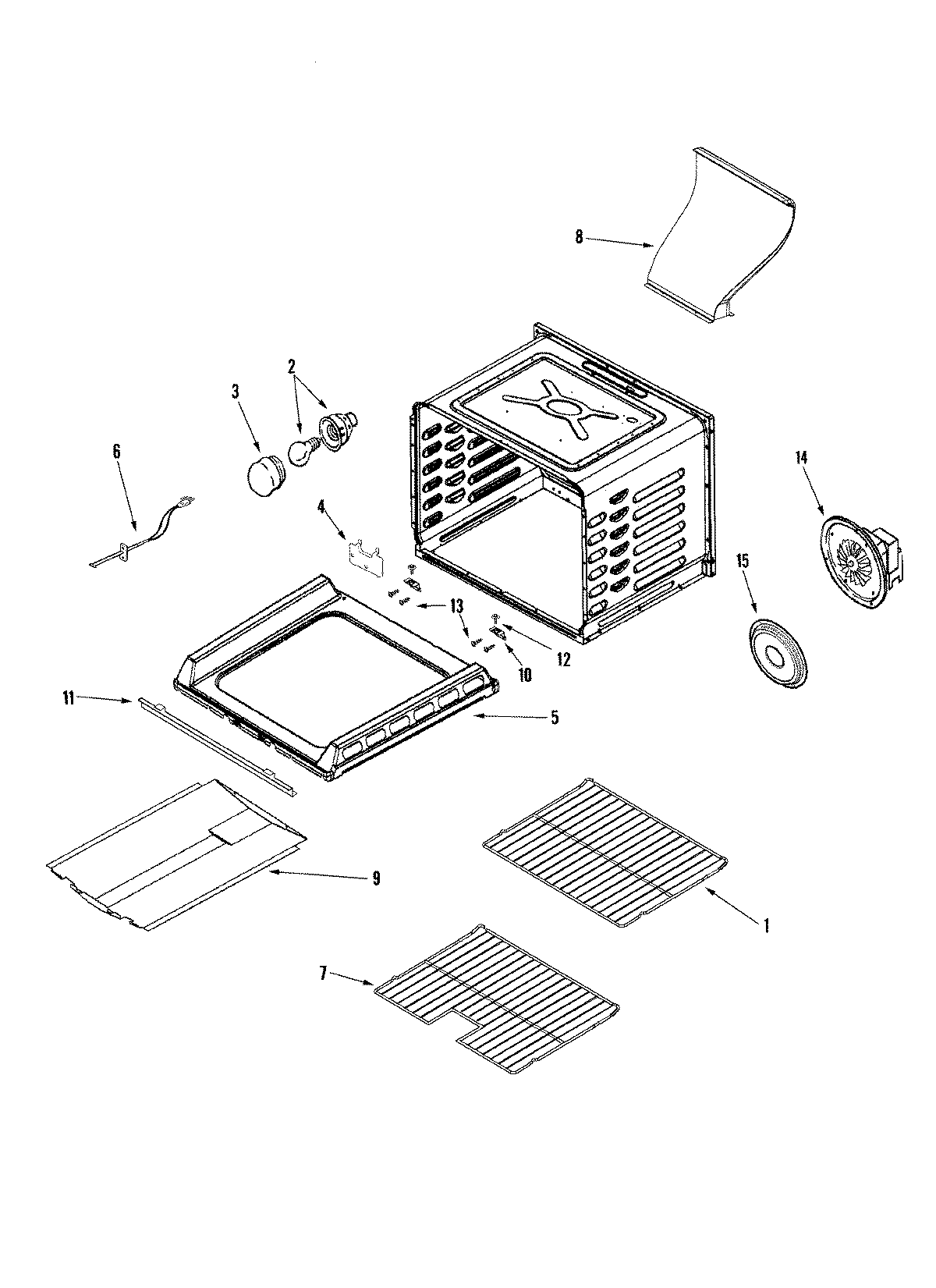

AGR5825RDW 02 – CAVITY

Products

PositionProduct
1WP74008763 Whirlpool Oven Rack
2WP74011278 Whirlpool Light
3MAY 74011299
4MAY 4005F421-45
5WPW10211368 Whirlpool Oven Bottom
612001655 Whirlpool Oven Sensor
7MAY 74009045
8MAY 74008817
9BAFFLE, BAKE BURNER
10SUPPORT, OVEN BOTTOM (REAR)
11SUPPORT, OVEN BOTTOM (FRONT)
12WP74003976 Whirlpool Screw
13SCREW
14MAY 74011174
15COVER, CONVECT
