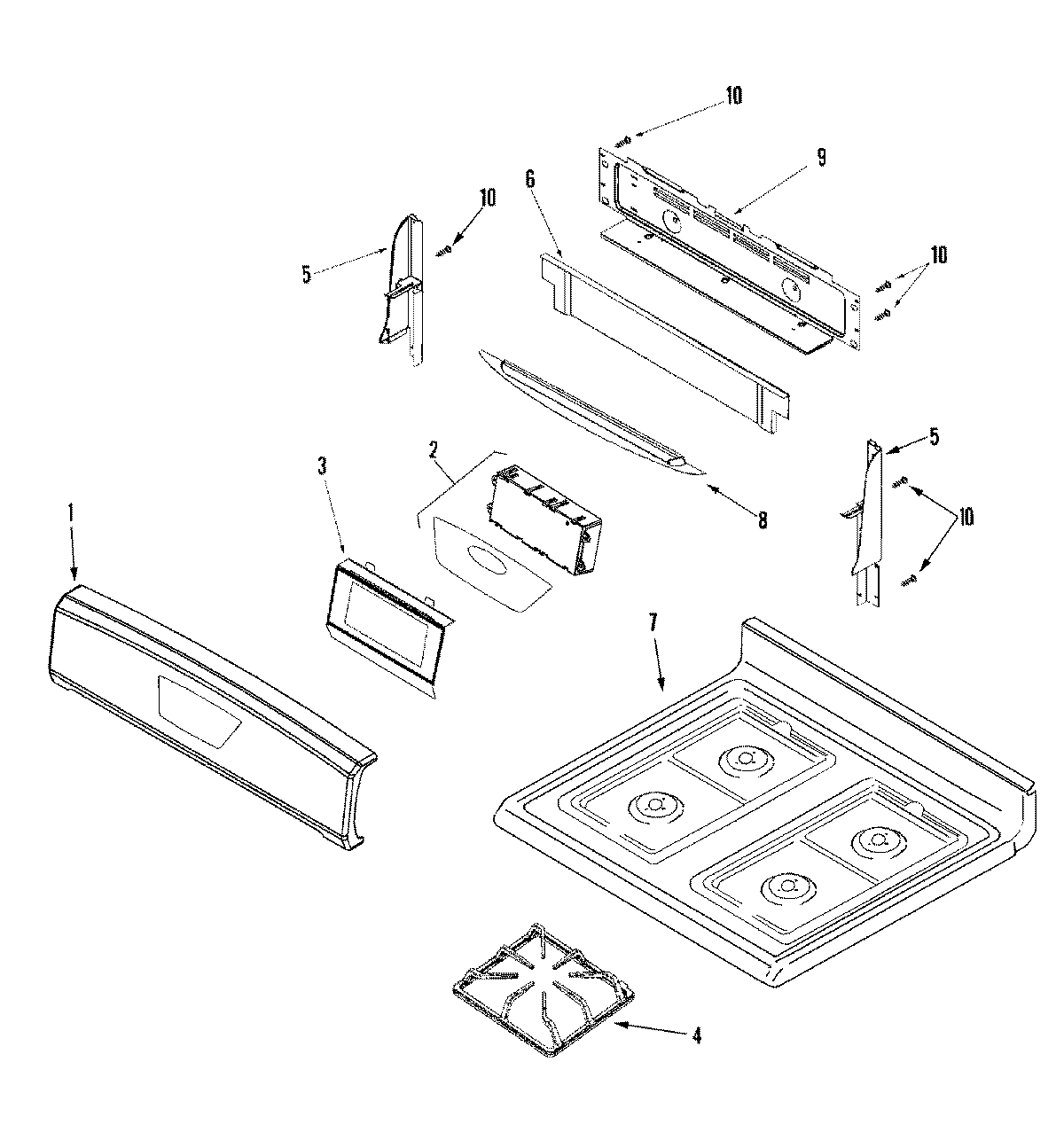

AGR5825RDW 03 – CONTROL PANEL/TOP ASSEMBLY

AGR5825RDW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AGR5825RDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009066
2MAY 74009104
3WP74003976 Whirlpool Screw
3MAY 74008716
4MAY 74008868
5End Cap (Right White)
5End Cap (Left White)
6MAY 74009444
7MAY 74009042
774008761 Whirlpool Spacer Snap-In
8SHIELD, HEAT VISOR (WHT)
9MAY 74010983
9MAY 74008836
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
