AGR5835QDB 01 – CABINET

AGR5835QDB 01 – CABINET

Written by

in

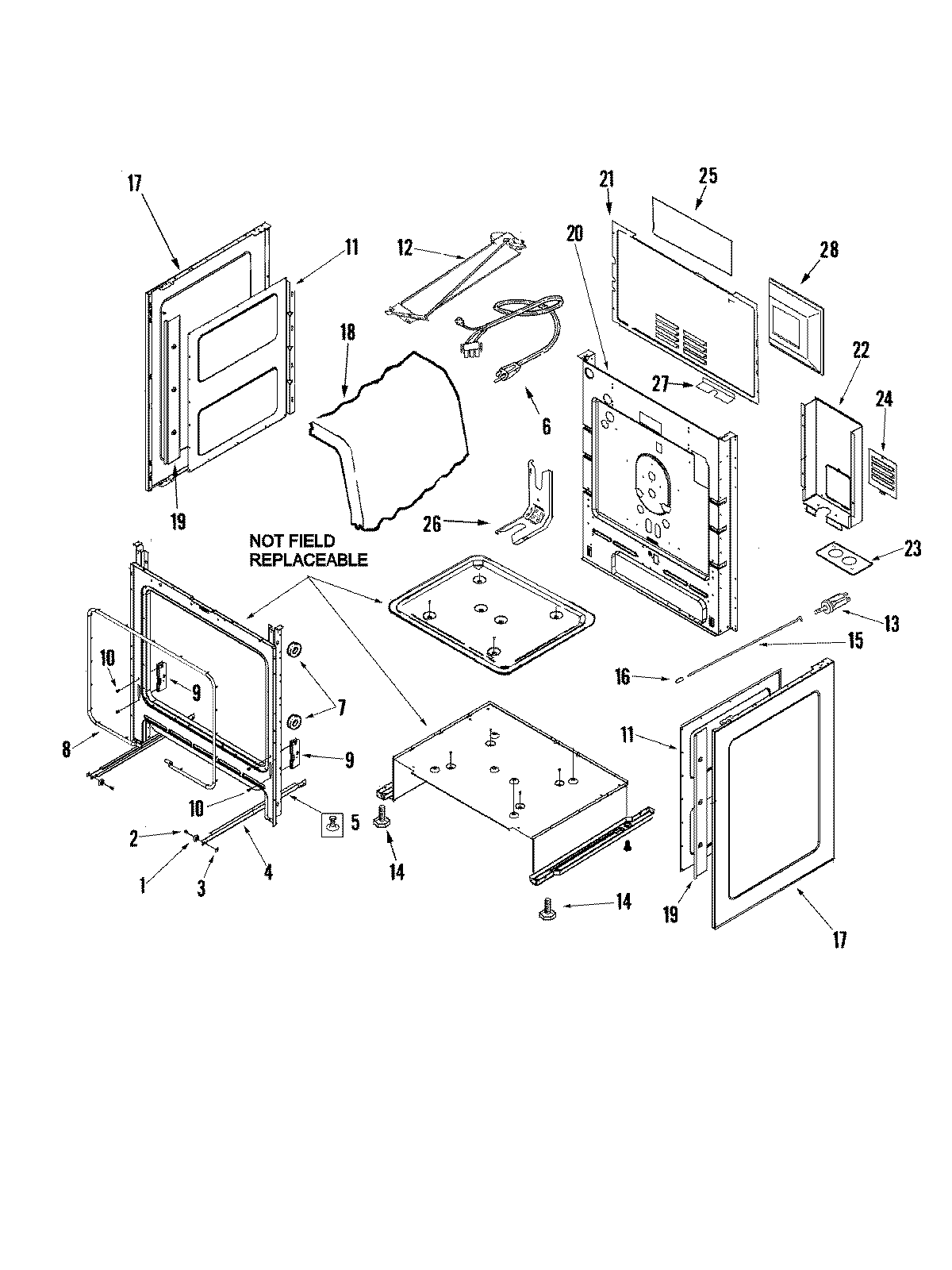

AGR5835QDB 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
374005230 Whirlpool Oven Lock Nut (8-32)
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008876
7SPACER, SIDE PANEL
7SCREW W/SHOULDER (No.8)
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 3804F316-52
11MAY 74008701
12SCREW
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12MAY 74008702
12MAY 8002P104-60
13MAY 74008704
1374008703 Whirlpool Door Switch
14W11665456 Whirlpool Range Level Foot
1474008835 Whirlpool Clip Retainer
15SLEEVE, ROD TUBE
15MAY 74008706
1674008707 Whirlpool Oven Bumper
17MAY 74008710
18INSULATION, WRAPPER
18MAY 74008698
19MAY 74009956
19MAY 74008831
19MAY 7002P494-60
20MAY 74008828
21COVER, MAIN WIRE (GAS)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
24MAY 74008340
25MAY 74008858
26WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26WP7101P485-60 Whirlpool Anchor Tip
27BOTTOM, REAR COVER
28MAY 74009060
