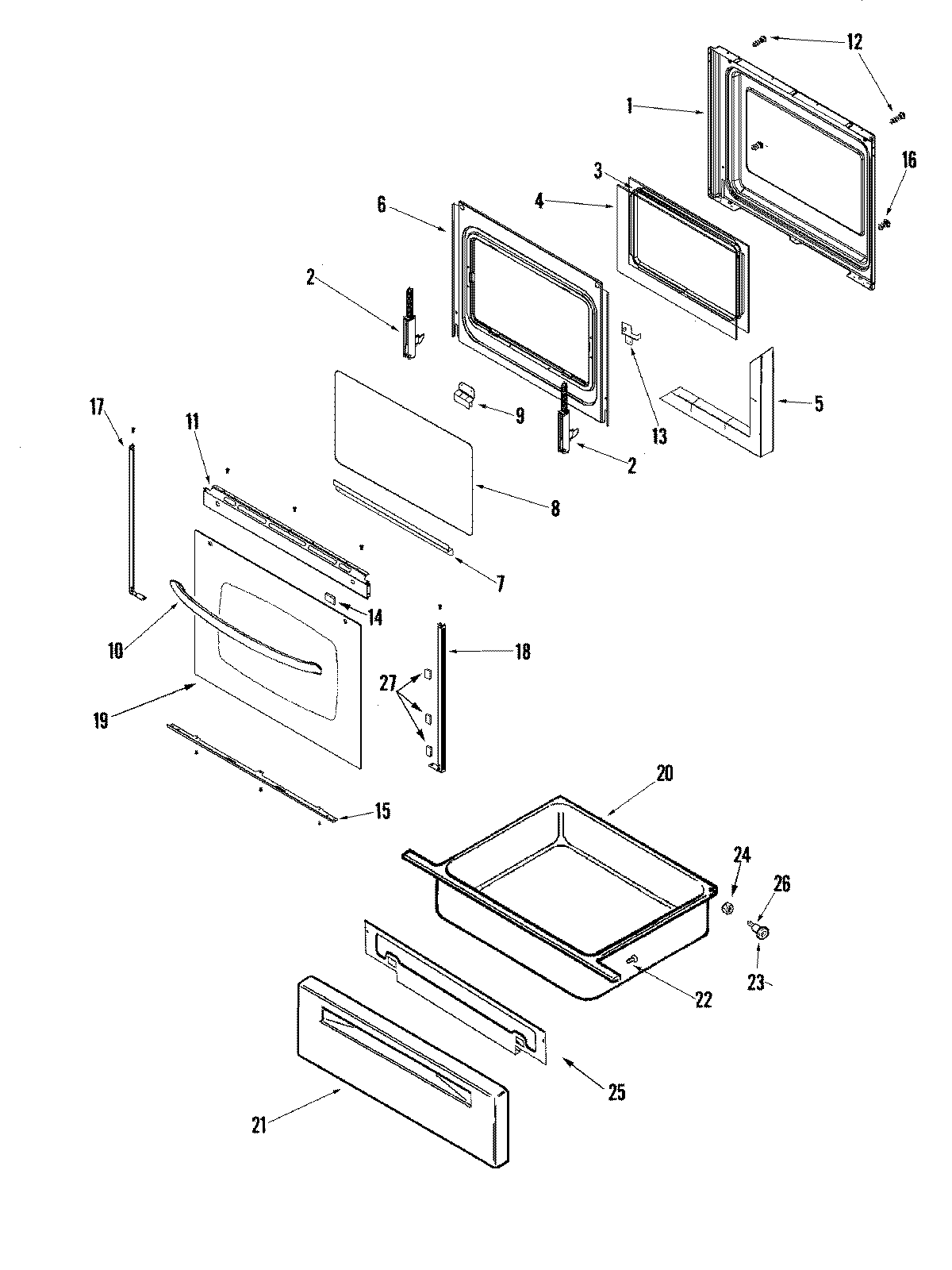

AGR5835QDB 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	MAY 74008745
8	GLASS, DOOR
9	Trim, Door Top (Black)
10	HANDLE, DOOR (BLK)
11	MAY 74008890
11	SCREW (8ABX1/2``-BLK)
12	WP74006515 Whirlpool Washer Screw
13	MAY 74008749
13	MAY 74008750
14	WP74004224 Whirlpool Tape
15	TRIM, BOTTOM (BLK)
16	SCREW (10-24X5/16-NI)
17	MAY 74008902
18	MAY 74008901
18	MAY 74010560
19	MAY 74008683
20	WP3405F037-80 Whirlpool Utility Drawer
21	PANEL, DRAWER (BLK)
22	SCREW
23	WP74004078 Whirlpool Door Roller
24	WP488130 Whirlpool Air Conditioner Nut
25	MAY 74009026
26	SHAFT, STORAGE DRAWER ROLLER
27	WP74009025 Whirlpool Double Sided Tape
