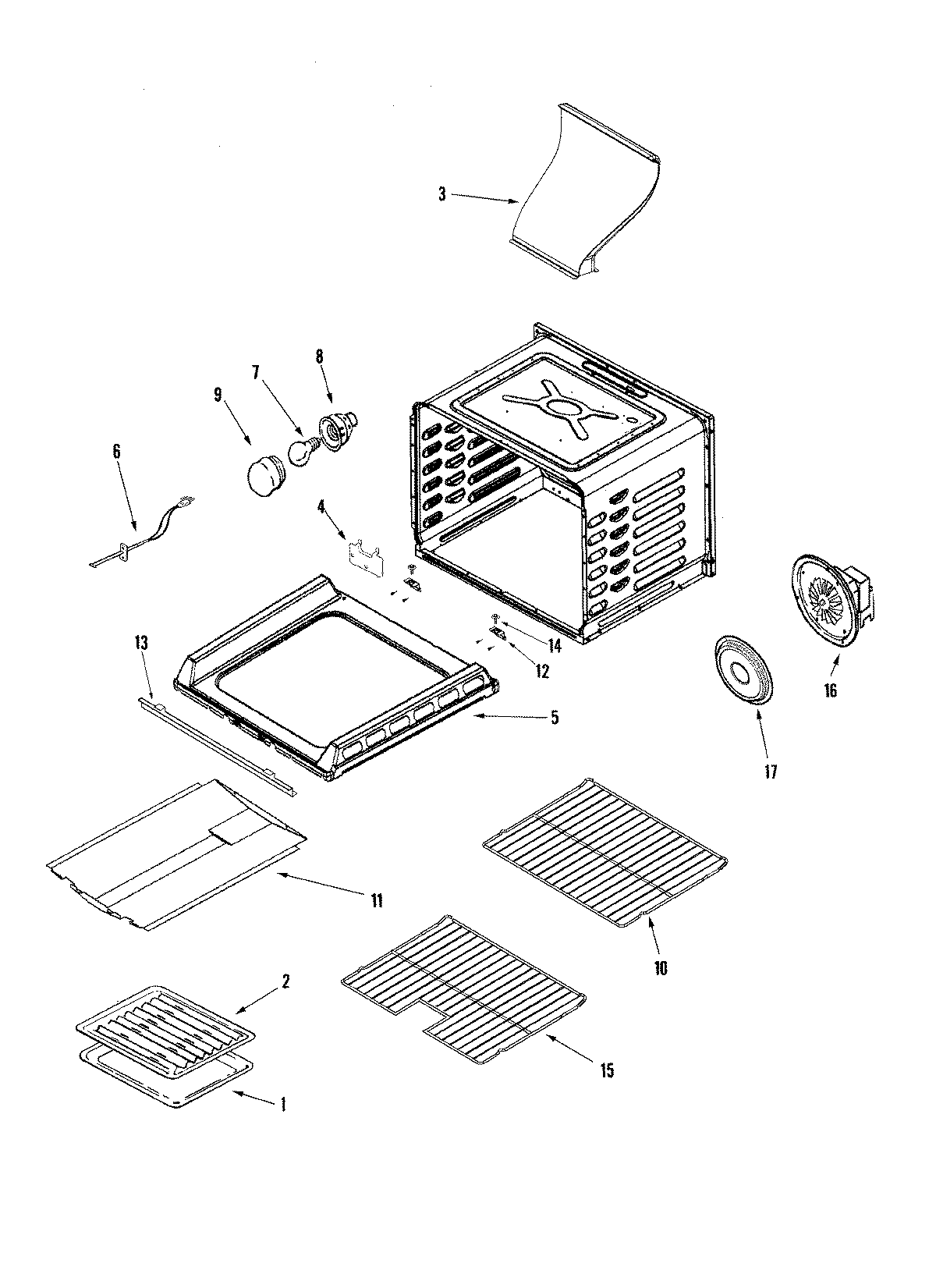

| 1 | MAY Y3401F02019 |
| 2 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 2 | MAY Y3413F01619 |
| 3 | MAY 74008817 |
| 4 | MAY 4005F421-45 |
| 5 | WPW10211368 Whirlpool Oven Bottom |
| 6 | 12001655 Whirlpool Oven Sensor |
| 7 | MAY Y707319 |
| 8 | WP74011278 Whirlpool Light |
| 9 | MAY 71001867 |
| 10 | WP74008763 Whirlpool Oven Rack |
| 11 | BAFFLE, BAKE BURNER |
| 12 | SUPPORT, OVEN BOTTOM (REAR) |
| 13 | SUPPORT, OVEN BOTTOM (FRONT) |
| 14 | WP74003976 Whirlpool Screw |
| 15 | MAY 74009045 |
| 16 | MAY 74009059 |
| 17 | COVER, CONVECT |
| 17 | MAY 71001394 |
