AGR5835QDW 05 – GAS CONTROLS

AGR5835QDW 05 – GAS CONTROLS

Written by

in

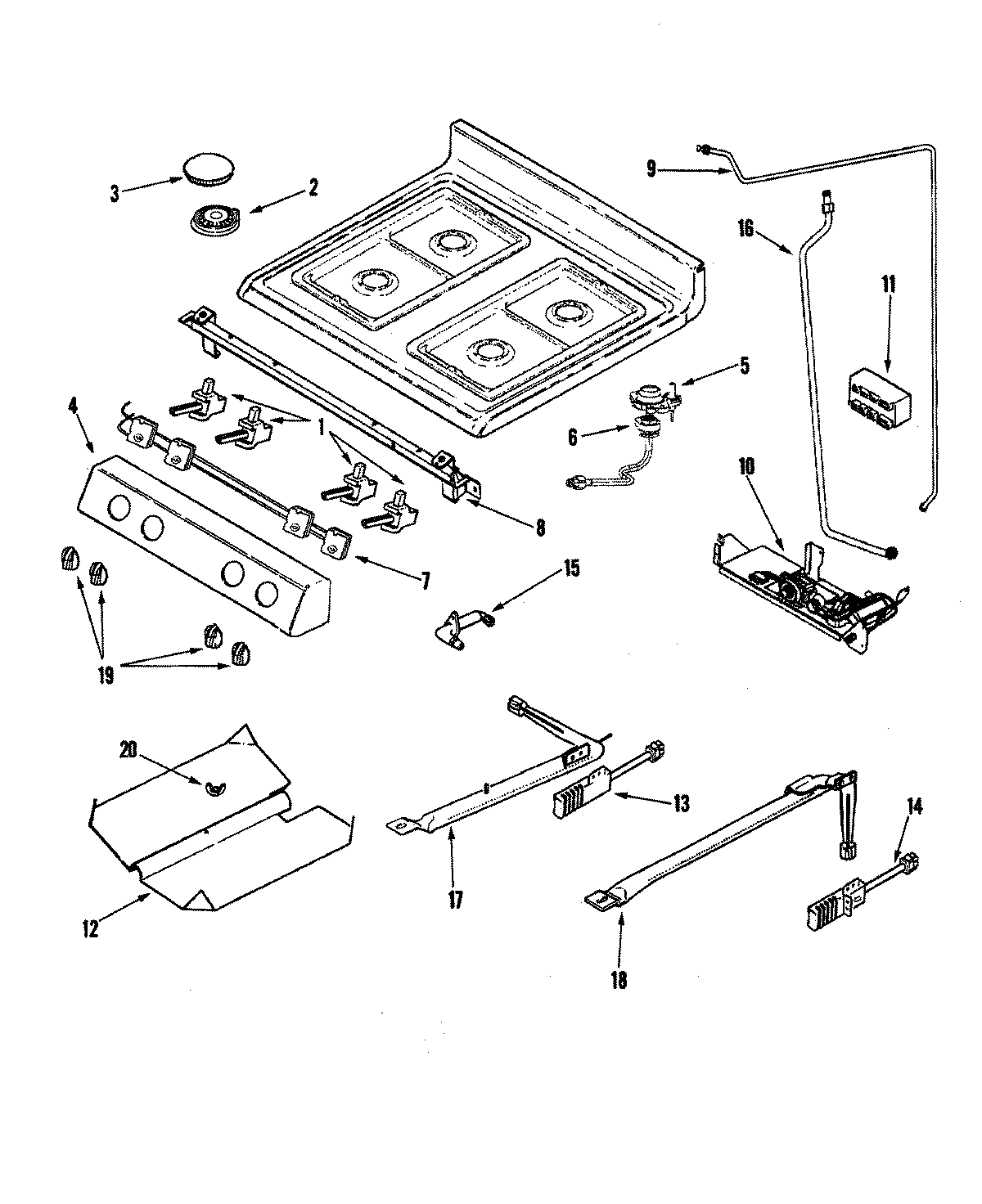

AGR5835QDW 05 – GAS CONTROLS

Products

PositionProduct
1WP74009857 Whirlpool Screw
1MAY 12002236
1MAY 74008810
1MAY 74008811
1MAY 74008812
1MAY 74008814
1MAY 74009391
1VALVE, BURNER (5K COPRECI)
1VALVE, 16K (COPRECI)
1VALVE, 12K (COPRECI)
1MAY 12002235
2WP400021-1 Whirlpool Screw
2WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
2WPW10406878 Whirlpool Burner Base (16K)
3CAP, BURNER (SMR-GRY)
3WP74007752 Whirlpool Burner Cap (Medium Gray)
3WP74007420 Whirlpool Large Gray Burner Cap
4W11693756 Whirlpool Screw Assembly
4MAY 74008848
5WP74009958 Whirlpool Spark Electrode Assembly
6MAY 74008840
6MAY 74008838
6MAY 74008841
6MAY 74009040
7MAY 74009394
7MAY 74008813
7WP74010630 Whirlpool Switch Harness
8MAY 74008809
9MAY 71003231
9TUBING, SUPPLY
10MAY 74008808
1174008821 Whirlpool Spark Module
12MAY 74008819
1374007498 Whirlpool Range Flat Igniter
14SCREW (10-24X5/16-NI)
14WP7432P136-60 Whirlpool Oven Igniter
15SCREW
1574008818 Whirlpool Broil Burner Fitting
1674008830 Whirlpool Oven Broil Tubing
17BURNER, BROIL
18MAY 31945701
19MAY 74008852
20NUT, WING
