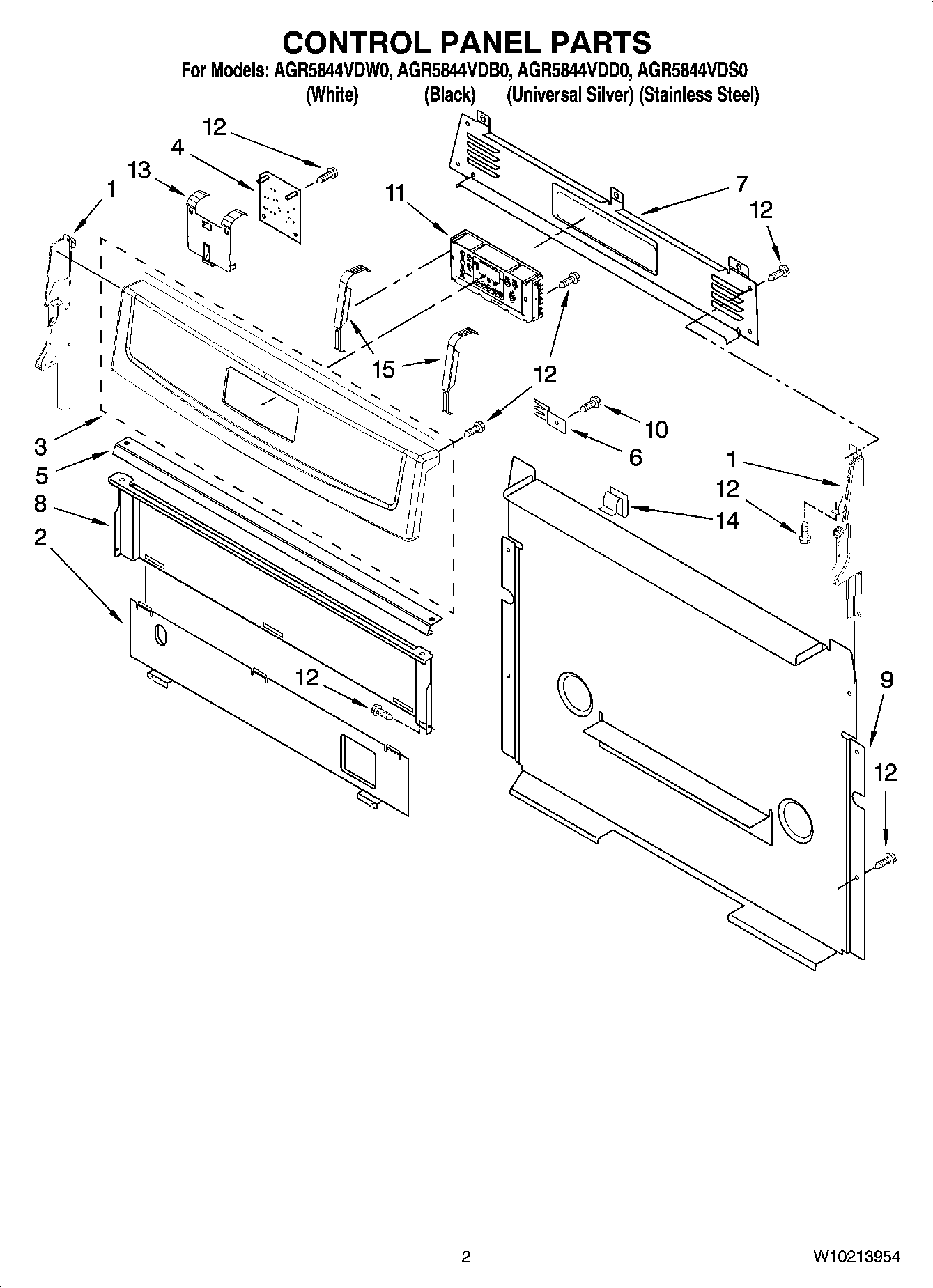

AGR5844VDB0 02 – CONTROL PANEL PARTS

AGR5844VDB0 02 – CONTROL PANEL PARTS

Written by

in

AGR5844VDB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2SHIELD, HEAT
3MAY W10170023
3MAY W10170024
3Panel, Console (Stainless Model)
3MAY W10170022
4MAY 9758080
5BRKT-MNTG,CONSOLE
6BRACKET, REAR COOKTOP
7COVER, UPPER
8MAY W10292841
9COVER, BACK
10SCREW
11MAY W10173508
11MAY W10173509
12SCREW
13Brkt-Mntg, DSI
14MAY 8273564
15BRACKET, MOUNTING, EOC
